PHW-400K-18D
Piezohannas
PHW-400K-18D

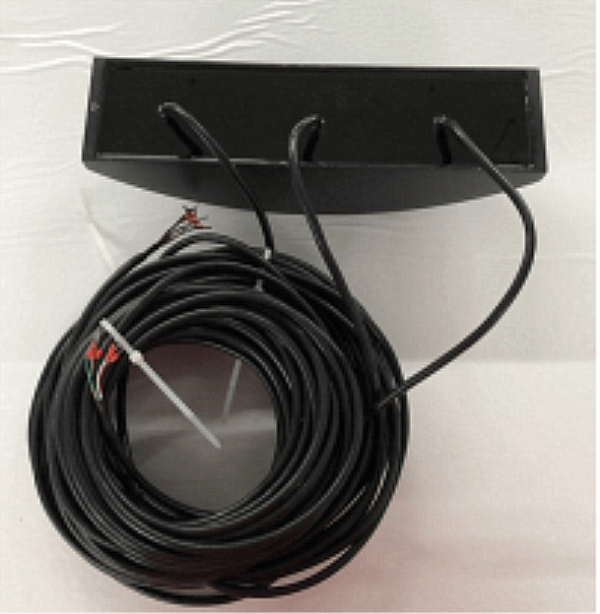

400KHz Multibeam Underwater Ultrasonic Transducer for Underwater Rangefinder
Technical parameters:
Items | Technical Parameters | Image | |
Name | 400KHz multibeam underwater ultrasonic transducer |
| |
Model | PHW-400K-18D | ||
Frequency | 400KHz±5% | ||
Minimum Parallel lmpedance | 60Ω±20％ | ||
5700pF±20％ @1KHz | |||
Sensitivity | driving voltage:20V、Distance:0.3m、Echo Amplitude:1500 mV | ||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
See product structure drawing for details | |||
Housing Material | ABS | ||
usage | Ultrasonic flowmeter, underwater rangefinder | ||
See product structure drawing for details | |||
Protection Level | IP68 | ||
Weight | 4750g±5％（wire length：10m*3） | ||
Wiring Instructions | Black collet: common negative pole of transducer; Red collet: positive pole of transducer (see product structure diagram for corresponding position); | ||

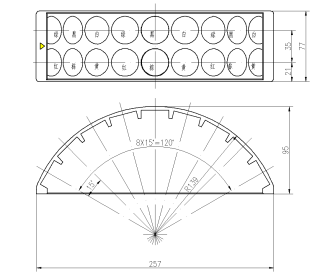

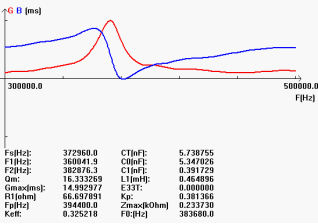

Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
