PH30F0620
Piezohannas
PH30F0620
30KHz High Resolution Working of Ultrasonict Distance Sensor
Introduction:
PH30F0620 ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Model | PH30F0620 |
Center resonant frequency (kHz) | 30KHz±2.0Khz |
Bandwidth | 3.0Khz |
Detection distance | 0.6~20m |
Blind spots | <0.6m |
Launch angle beam (-6dB full angle) | 14±2° |
Sensitive | -65dB min |
Electrostatic capacitance | 7000PF±20% |
Minimum parallel impedance | 200Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | 1800Vp-p |
Operating temperature | -20 ~70℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Size (diameter * height, mm) | Φ90x103 |
Installation | Fixed with screw |
Case Material | PVC |
Cable length | 3 M (can be customized) |
Weight | 1.5kg |
Photo:

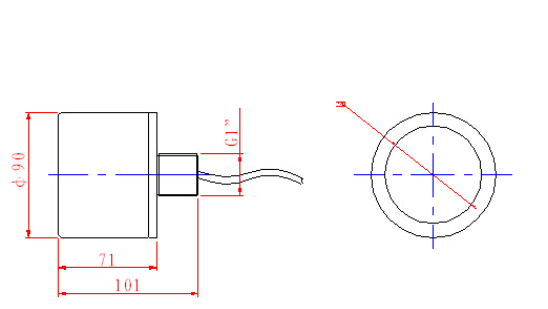

Outline Dimension：
![VH[]KIOY6@UL]743L7E]U20](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ljBqnKjlRioSrlkkpjio/VH-KIOY6-ULL7E-U20.png "_Q{RPD$TE626W9%J46(8@1J.png")

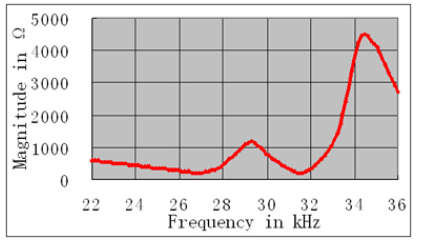

Frequency-Resistance Curve：

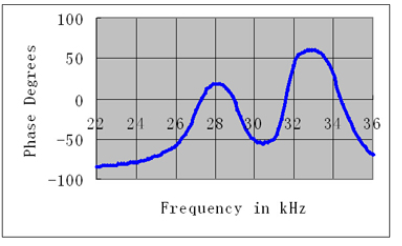

Frequency-Phase Angle Curve：
![[MV{13FYPRD(MTEXMG$]X](http://5krorwxhlkpmrik.leadongcdn.com/cloud/lpBqnKjlRioSrlkkjlin/MVFYPRD-MTEXMG-X.png)

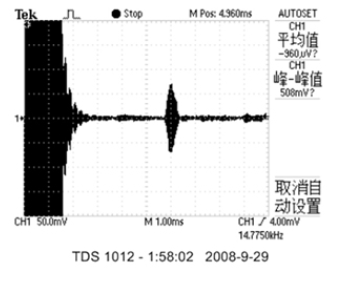

Sensitivity Test:
Transmitting voltage:400Vp-p; period: 50; distance: 1.5M

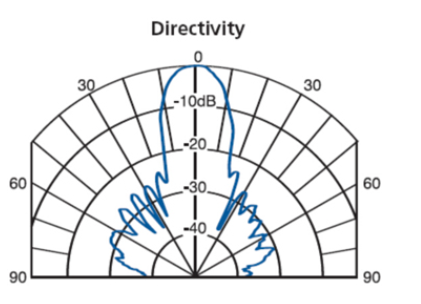

Directivity Curve：
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Firm semblance seal (PVC outer covering)
2.Convenience thread installment (G1”)
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
