300KHz Small Blind Zone Ultrasonic Transducer for Double Sheets of Paper

300KHz |7° | 0.08~2m| used for short-distance accurate measurements,distinctions between old and double sheets of paper, old and new paper identification.

About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency, Also we can accept customization.

Availability:

Quantity:



Inquire Add to Basket

Model:
PH300-02
Brand:
Piezohannas
Code:
PH300-02

Product Description

300KHz Small Blind Zone Ultrasonic Transducer for Double Sheets of Paper

Technical parameters：

Item			Specification parameter			Item	Specification parameter
Product classification			Measurement transducer medium	in	gas	Operating Temperature (℃)	-20~+70℃
Product model number			PH300-02			Storage temperature(℃)	-30~+70℃
Frequency f(kHz)			300kHz±4%			Protection grade	IP65
Bandwidth△f			±5%			Housing material	PBT
Min. Receive Sensitivity (0dB=20Vp-p*50mm) amount of gain:40dB			>1.0V			Cable specification	Φ0.6*10 contact pins
Beamwidth (-3dB full angle)			7°			Signal interface	soldering
Free (1kHz) Capacitance (pf)			1500PF±20%			Way to install
Min. Z(Ω)	Parallel	Resistance	250Ω±30%			Weight(g)	1g
Maximum Driving Voltage: 400Vpp (2% duty cycle tone burst)			＜50V
Note			Construction and size can be determined by clients.

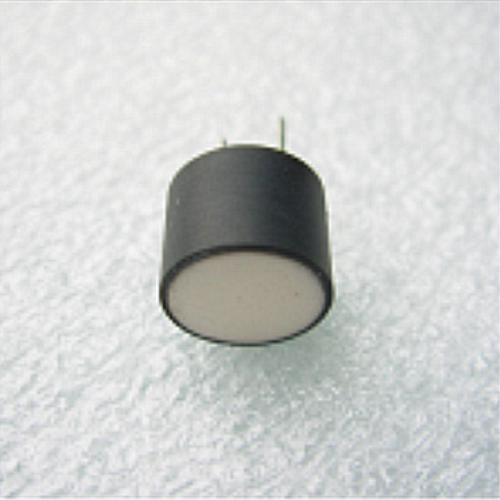

Photo:

Outline Dimension：

T%NC)E_8%_G)6SHIN7J%VD

Impedance Magnitude/Phase:

XP%Y%L0RT_U0K3DSZ4

Receiving Sensitivity test:
