2MHz ultrasonic depth transducer for ultrasonic flowmeter

Application:
ultrasonic flowmeter
submarine range finder

Quantity:
  • PHW-2M-01H
  • Piezohannas
  • PHW-2M-01H

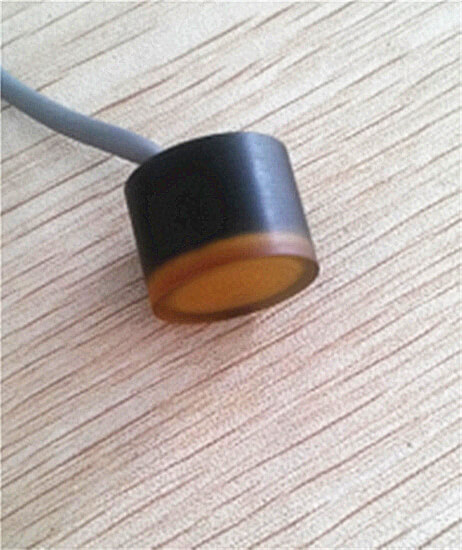

                        2MHz ultrasonic depth transducer for ultrasonic flowmeter



Application:


ultrasonic flowmeter
submarine range finder




Technical parameters:





Items

Technical Parameters


Name

2MHz underwater acoustic transducer

 K)KB@RDA2IO`N01S(NMTQNR


Model

PHW-2M-01H

Frequency

2MHz±5%

Detection Distance

0.03 2m

Minimum Parallel lmpedance

Ω±20

Capacitance

pF±20@1KHz

Sensitivity


Operating Voltage

Peak Voltage<150VPP

Operating Temperature

-40+80℃

Pressure

≤3 Kilos or 0.3MPa

Angle

(Beamwidth) Half-power Beam Width

@-3dB:2.5°±0.5

Sharp Angle:6°±1

Housing Material

composite material

Usage

 ultrasonic flowmetersubmarine range finder

Installation Dimension

Checking product structure diagram below

Protection Level

IP68

Weight


wiring instructions

Integrated  InterfaceRed: transducer+White: transducer-,

Black: shielded wire,(without temperature sensor

Admittance Curve

Product Structure Diagram


@]KGIFXSL5J14V([8BCM7Q7
