PHW-2M-01L
Piezohannas
PHW-2M-01L

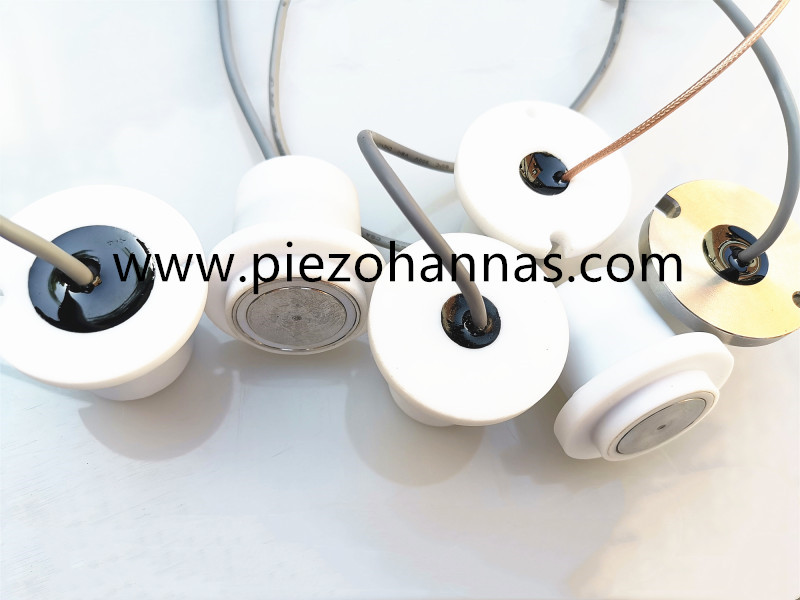

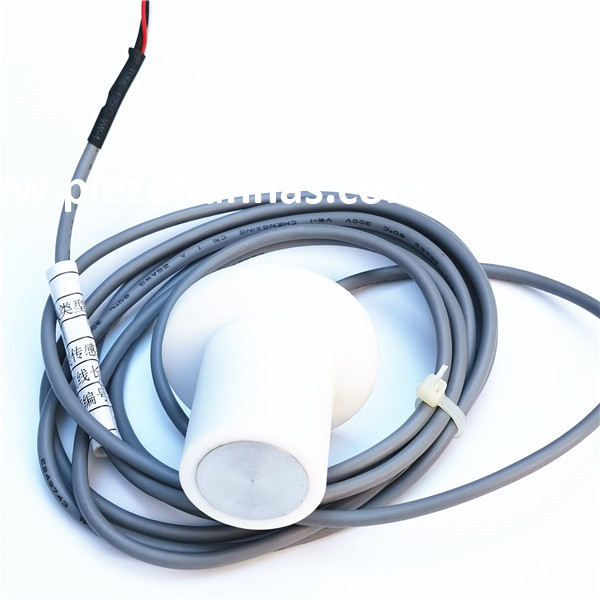

2MHz anti-corrosion underwater acoustic transducer for ultrasonic flowmeter
Application:
ultrasonic flowmeter
submarine range finder
Technical parameters：
Items | Technical Parameters | Image | |
Name | 2MHz anti-corrosion underwater acoustic transducer |
| |
Model | PHW-2M-01L | ||
Frequency | 2MHz±5% | ||
Detection Distance | 0.03 ～ 2m | ||
Minimum Parallel lmpedance | Ω±20％ | ||
Capacitance | pF±20％ @1KHz | ||
Sensitivity | |||
Operating Voltage | Peak Voltage＜150VPP | ||
Operating Temperature | -40～+80℃ | ||
Pressure | ≤3 Kilos or 0.3MPa | ||
Angle | (Beamwidth) Half-power Beam Width @-3dB:2.5°±0.5， Sharp Angle:5°±1 | ||
Housing Material | Checking product structure diagram below | ||
Usage | ultrasonic flowmeter，submarine range finder | ||
Installation Dimension | Checking product structure diagram below | ||
Protection Level | IP68 | ||
Weight | 70g±5％（Length：2m） | ||
wiring instructions | Integrated Interface：Red: transducer+，White: transducer-, Black: shielded wire，（ without temperature sensor） | ||
Admittance Curve | Product Structure Diagram | ||
| |||
Ultrasonic Flowmeter Application :
A water flow meter is an instrument capable of measuring the amount of water passing through a pipe. Several water flow meter technologies are available for selection depending on the water measurement applications, budgetary terms, and maintenance requirements. Each of these water flow meter types has a unique principle of operation, overall cost-of-ownership, and specific application benefits.
