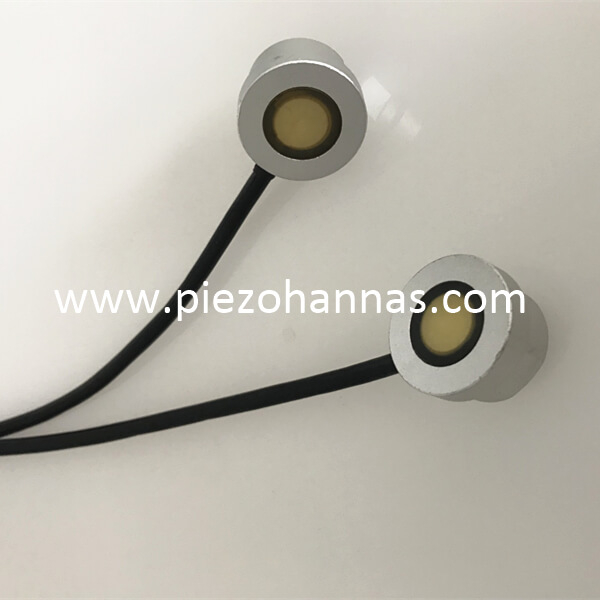

2MHz Ultrasonic Fuel Level Transducer for Depth Measurement
Items | Technical Parameters | Image | |||
Name | Ultrasonic transducer for automobile tank oil level(mounted outside) |
| |||
Model | PL-2M-01F | ||||
Frequency | 2MHz±30KHz | ||||
Detection Distance | 0.03 ～ 2m | ||||
Minimum Parallel lmpedance | 10Ω ±20％ | ||||
Capacitance | 2300pF±20％ @1KHz | ||||
Sensitivity | Driving Voltage：24 Vpp、Distance： 0.3m、 Echo Amplitude:900 mV | ||||
Operating Voltage | Peak | Voltage＜150VPP | |||
Operating Temperatur e | -40～+80℃ | ||||
Pressure | ≤3Kilos or 0.3MPa | ||||
Angle | (Beamwidth)Half-power Beam Width@-3dB:2.4°±0.5， Sharp Angle:5.7°±1 | ||||
Housing Material | 2A12 | ||||
Usage | Detecting oil level of fuel tank , submarine range finder | ||||
Installation Dimension | Checking product structure diagram below | ||||
Protection Level | IP68 | ||||
Weight | 240g±5％（Length：5M+1M） | ||||
Wiring Instructions | Wiring Instructions： 1 → negative electrode of piezoelectric ceramics 2 → positive electrode of piezoelectric ceramics 3 → MF58 temperature 4 → MF58 temperature | ||||
| |||||
| |||||
Admittance Curve | Product Structure Diagram | ||||
|
|
