28KHz underwater horizonally-polarized ultrasonic depth transducer for submarine range finder

Application :ultrasonic flowmeter,submarine range finder

Quantity:
  • PHW-28-G
  • Piezohannas
  • PHW-28-G

28KHz Underwater Horizonally-polarized Ultrasonic Depth Transducer for Submarine Range Finder






1.Technical parameters:


Items

Technical Parameters


Name

28KHz horizonally-polarized non-directional cylindrical underwater acoustic transducer

U6ZD$P[Z[OF}O`OJ[N(8X



Model

PHW-28-G

Frequency

28KHz±5%

Detection Distance

500m

Minimum

Parallel lmpedance

300Ω±20

Capacitance

21000pF±20@1KHz

Sensitivity




Operating

Voltage

Peak Voltage<VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa

Angle

horizonally-polarized non-directional

Housing Material



POM

Usage

ultrasonic flowmeter,submarine range finder

Installation

Dimension



See the product structure drawing

Protection Level

IP68

Weight

340g±5(Length: 2m)

Wiring Instructions

  Red+,White-,Black- ,shielded wire;

(without temperature sensor by default)

Admittance Curve

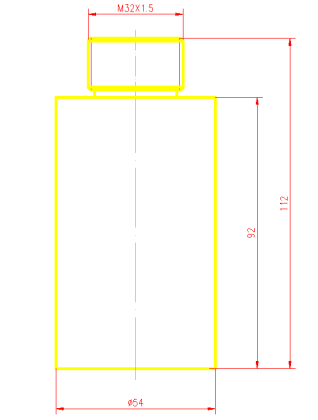

Product Structure Diagram



HYD_]Y0S@[W8[HR)69XWZ$S

S28I_L1Z_S]}S`Q$@WT7{D



2.Temperature Sensor Schematic Diagram of Transducer , Test Circuit Schematic Diagram





0)BSPBFPJA{P`6KS@W0D$DD
