200KHz short distance measuring transducer sensor for ultrasonic level gauge

200KHz |8° |0.10～1.5| used for Ultrasonic level gauge,Ultrasonic Transducer

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-200-01C
Brand:
Piezohannas
Code:
PHA-200-01C

Product Description

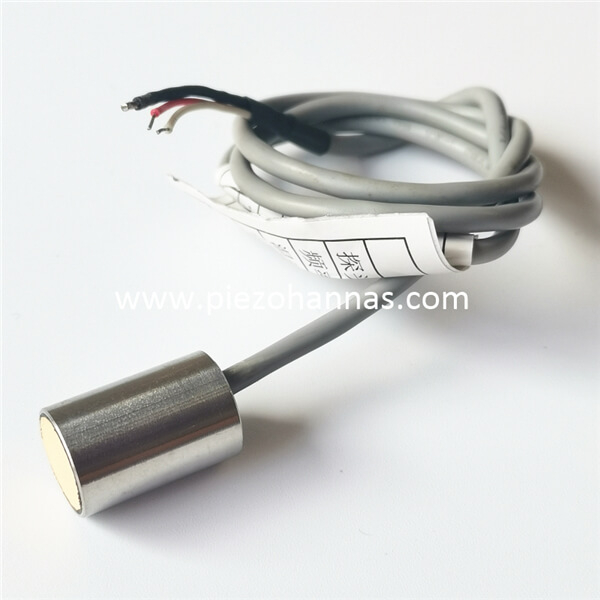

200KHz Short Distance Measuring Transducer Sensor for Ultrasonic Level Gauge

Technical parameters：

Items	Technical Parameters		Image
Name	200KHz ultrasonic transducer
Model	PHA-200-01C
Frequency	200KHz±5%
Detection Distance	0.10～1.5m
Minimum Parallel lmpedance	1000Ω±20％
Capacitance	450pF±20％ @1KHz
Sensitivity	Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude：35mV
Operating Voltage	Peak Voltage＜1000 VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:20°±4
Housing Material	304 stainless steel
Usage	Ultrasonic level gauge,Monitoring,Crashproof, Security
Installation Dimension	size：12*10
Protection Level	IP68
Weight	12g±5％（Length：40cm）
Wiring Instructions	integrated type：Red+，White-，Black: shielded wire
Admittance Curve		Product Structure Diagram
		$UZPQ4)DI_6I{(](A3FRIRXB$

Test Circuit Schematic of Transducer:

0RYJG8D(6_Q9XM%86PDG
