PHA-200-01C
Piezohannas
PHA-200-01C

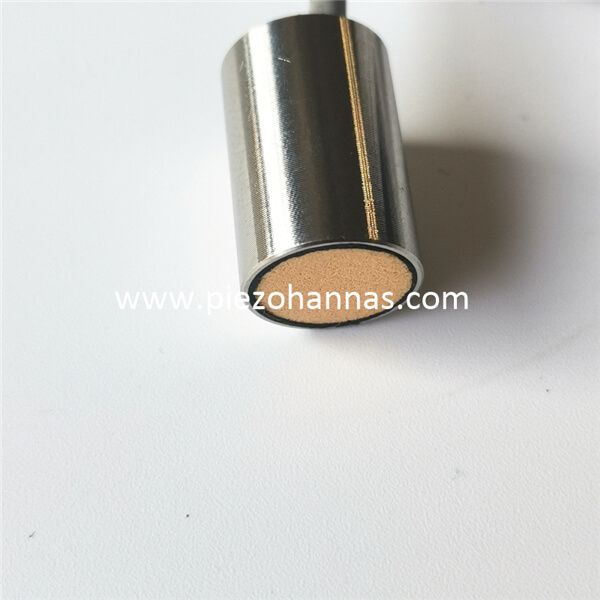

200KHz Ultrasonic Distance Measuring Transducer for Ultrasonic Level Gauge
Technical parameters：
Items | Technical Parameters | Image | |
Name | 200KHz ultrasonic transducer |
| |
Model | PHA-200-01C | ||
Frequency | 200KHz±5% | ||
Detection Distance | 0.10～1.5m | ||
Minimum Parallel lmpedance | 1000Ω±20％ | ||
450pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude：35mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:20°±4 | ||
Housing Material | 304 stainless steel | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof, Security | ||
size：12*10 | |||
Protection Level | IP68 | ||
Weight | 12g±5％（Length：40cm） | ||
Wiring Instructions | integrated type：Red+，White-，Black: shielded wire | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||

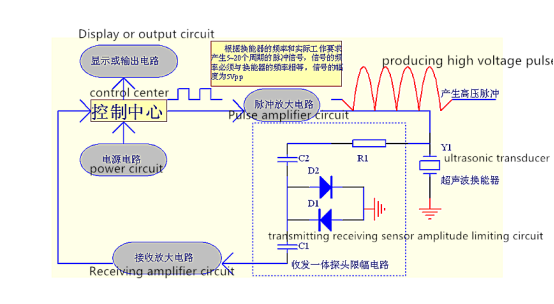

Block diagram of ultrasonic distance transducer :

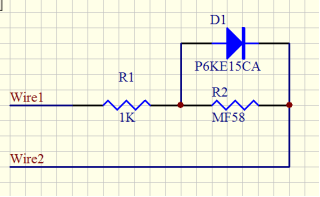

Schematic Diagram of Temperature Sensor:
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
