200KHz Customizable Ultrasonic Transducer for Ultrasonic Gas Flow

Ultrasonic Transducer for Gas Flow Measurement

Quantity:
  • PHA-200-01X
  • Piezohannas
  • PHA-200-01X

        200KHz Customizable Ultrasonic Transducer for Ultrasonic Gas Flow


Items

Technical Parameters


Name

200KHz ultrasonic transducer





W7BC5N6(5F63NWRJPQA8UT

Model

PHA-200-01X

Explosive gas environment

it can work normally

active zone diameter

15 mm

Frequency

200KHz±7.5KHz

Detection Distance

0.101.5m

Minimum

Parallel lmpedance

360Ω±20

Capacitance

500pF±20@1KHz



Sensitivity

Load driving voltage800Vppdistance:0.6m

Echo Amplitude40mV

Operating Voltage

Peak Voltage1000 VPP

Operating Temperature

-40+80℃

Pressure

16Kilos or 1.6MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:7°±2

Sharp Angle:18°±4

Housing Material

Can be used in strong acid and alkali environmenttitanium alloy



Usage

Ultrasonic Gas Flow Meter

Installation Dimension

customizable

Protection Level

IP68

Weight

20g±5%(Length20cm

Wiring instructions

integrated typeRed+Yellow-Black: shielded wire(Without temperature sensor by default)

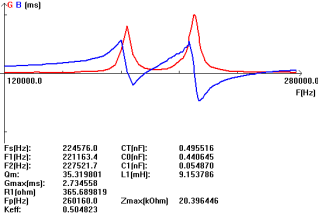

Admittance Curve

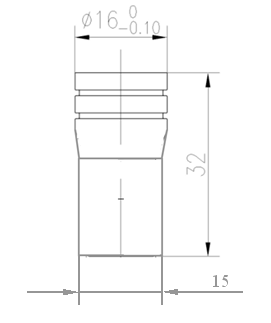

Product Structure Diagram



E%JIG2MJ8V`A2C0FWDXR

VC_C%ERAGH7)QH__XPQDY4



Workshop Show

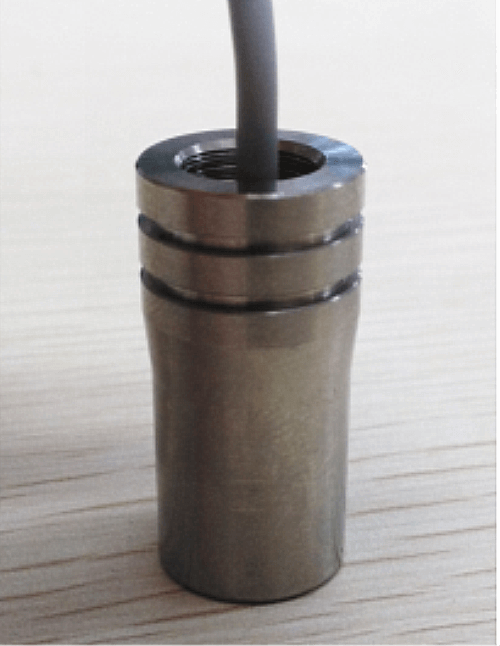

200KHz Metal Housing Ultrasonic Transducer for Gas Flow Measurements


production image 2


200KHz Metal Housing Ultrasonic Transducer for Gas Flow Measurements
