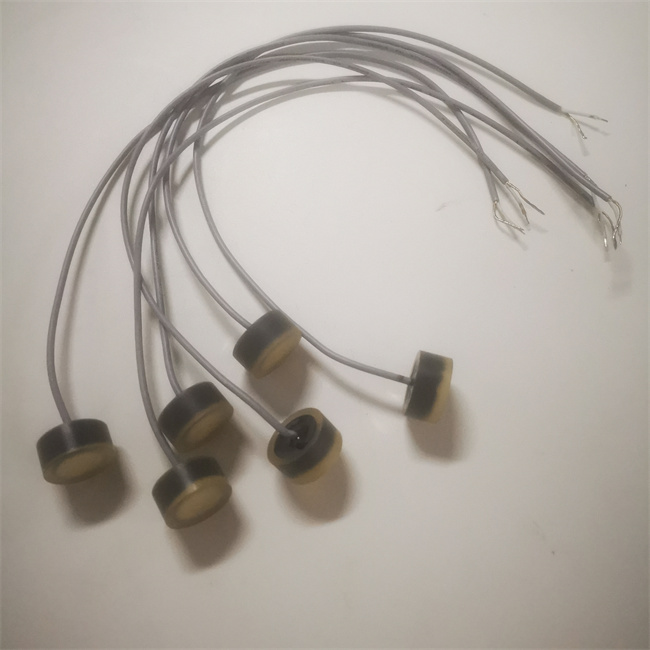

1MHz Ultrasonic Doppler Flowmeter Transducer for Ultrasonic Liquid Flow Meter

1MHz Ultrasonic Doppler Flowmeter Transducer

Quantity:
  • PH1000-2008
  • Piezohannas
  • PH1000-2008

     1MHz Ultrasonic Doppler Flowmeter Transducer for Ultrasonic Liquid Flow Meter



The main purpose:



For water flow measurement

Accurately measure short distances with liquids





Feature:



Small size, easy to install

Sensitivity, low residual vibration, broadband, high test accuracy

Long use time





Technical parameters:



Name

Specification

Item

Specification

product type

Liquid measurement transducer

resistance value Z(Ω)- in the water

100Ω±30%

product model

PH1000-2008

Maximum driving voltage impulse wave(duty ratio 2%)

300V

Transducer frequency f(kHz)

1.00MHz±3%

operating temperature(℃)

4~+70℃

bandwidth△f(underwater)-6dB

±10%

storage temperature(℃)

-30~+90℃

Residual vibration of transducer

˂ 30μs

waterproofing grade

IP68

overall sensitivity(V) receiving and sending

(0dB=3Vp-p 8pulses L=85mm)



>1.0V



 Shell material



polysulfone

beam angle°(-3dB)

cable specification

Single Shield Wire 35CM

electrostatic capacitance(pf)

1300PF±20%

corrosion resistance

Weak acid weak alkali resistant



weight(g)

14g/pc

Remark

size of transducer structure can be customized according to user needs.



Image:


`(0NNPL9K5A7FCQ4JQ6



Outline Dimension:


RRPXKJFL8N7U%R(DU3


Impedance curve:



1ECPPU_H322AOV3KM





Sensitivity:





 ALD%UVVJATG6S5%4699
