H315S
Piezohannas
H315S

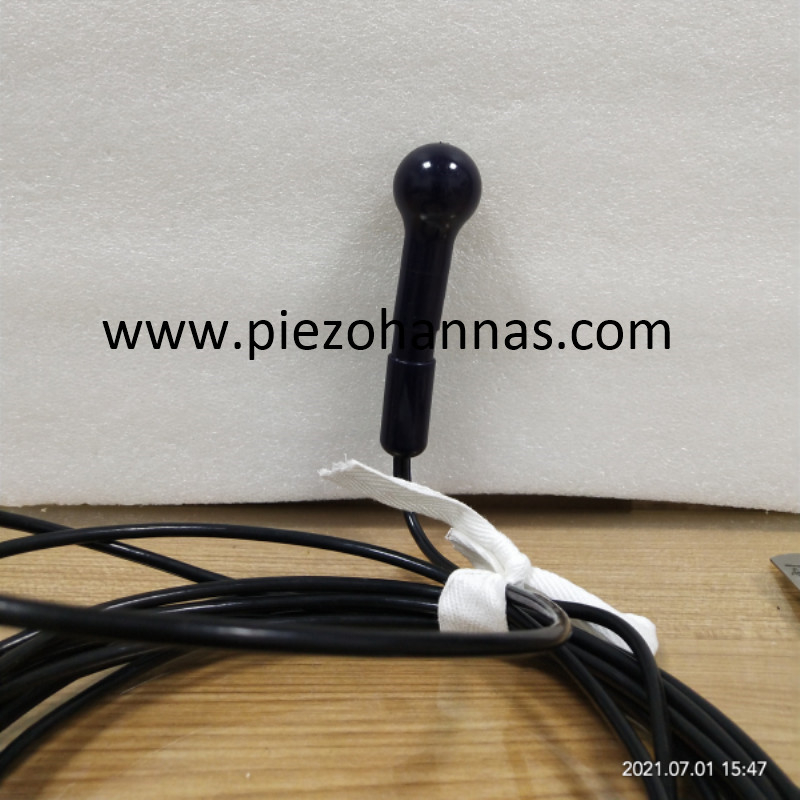

156kHz Omnidirectional Hydrophone for Underwater Acoustic
Our acoustics team is a self-developed acoustic transducer product covering a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, bending tension, various types such as curved discs and composite materials have achieved full coverage from medium and low frequencies to high frequencies, from shallow water to 10,000 meters of water depth, and can be widely used in interception and self-guided detection, communications networking, positioning and navigation, seabed surveying and mapping, Forward-looking side scan, industrial and medical ultrasound and other acoustic equipment. It also has strong research and development capabilities in connectors for underwater equipment. The main product series have passed the 8000-meter withstand voltage test and have excellent performance.
Technical Specifications:
Technical Specifications | |
resonant frequency | 156kHz |
Operation bandwidth | 20Hz-160kHz |
receive sensitivity | ≥-210 dB re 1V/μPa |
horizontal directivity（3dB） | omnidirectional |
vertical directivity（3dB） | omnidirectional |
static capacitance | 5400nF |
Physical Index | |
Size | Diameter 16mm |
Weight (air/water) |
|
Cable (standard) | 5m，non-load-bearing，customizable |
Maximum working depth | 300m（standard) |
operating temperature | -5 to +40 °C |
storage temperature | -40 to +80 °C |
connector | Non - standard, can be customized |
Performance Curve of Acoustics:
