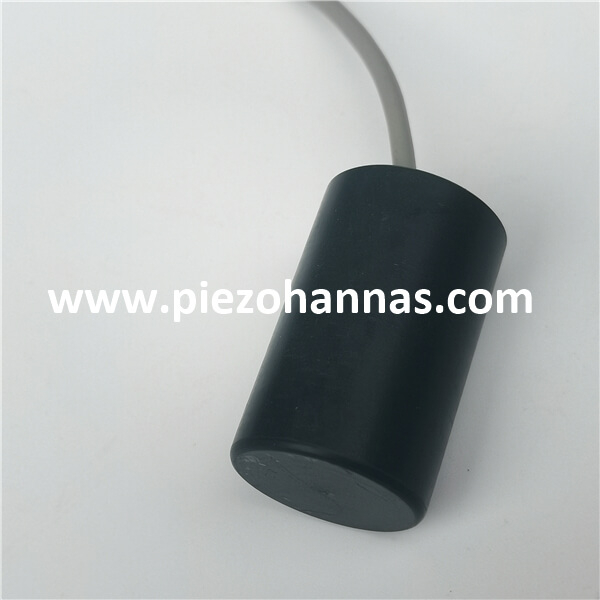

150KHz Underwater Ultrasonic Transducer for 200M Depth Measurement
Technical parameters:
Items | Technical Parameters | Image | |
Name | 150KHz underwater ultrasonic transducer |
| |
Model | PHW-180-01A | ||
Frequency | 150KHz±5% | ||
Detection Distance | 1.0～200m | ||
Minimum Parallel lmpedance | 500Ω±20％ | ||
1000pF±20％ @1KHz | |||
Sensitivity | No load driving voltage:400 Vpp、Distance:0.6m、 echo amplitude：500 mV | ||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
(Beamwidth)Half-power Beam Width@-3dB：26°±10%, Sharp Angle :65°±10% | |||
Housing Material | POM | ||
See product structure drawing for details | |||
Protection Level | IP68 | ||
Weight | 30g±5％（wire length：1m） | ||
Wiring Instructions | Red: transducer +, white: transducer -, black: shielded wire；（ temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
