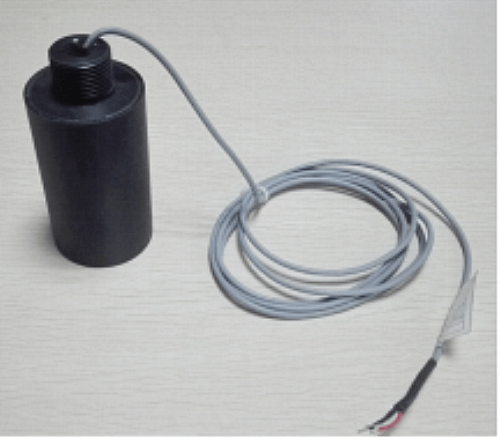

12KHz Horizonally-polarized Non-directional cylindrical Underwater Acoustic Transducer

1.Technical parameters：

Items	Technical Parameters		Image
Name	12KHz horizonally-polarized non-directional cylindrical underwater acoustic transducer
Model	PHW-12-G
Frequency	12KHz±5%
Detection Distance	10000m
Minimum Parallel lmpedance	Ω±20％
Capacitance	pF±20％ @1KHz
Sensitivity
Operating Voltage	Peak Voltage＜VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	horizonally-polarized non-directional
Housing Material	POM
Usage	ultrasonic flowmeter，submarine range finder
Installation Dimension	See the product structure drawing
Protection Level	IP68
Weight	330g±5％（Length:1m）
Wiring Instructions	Red+，White-，Black- ,shielded wire；（without temperature sensor by default）
Admittance Curve		Product Structure Diagram

2.Temperature Sensor Schematic Diagram of Transducer , Test Circuit Schematic Diagram
