PHW-200-11D
Piezohannas
PHW-200-11D

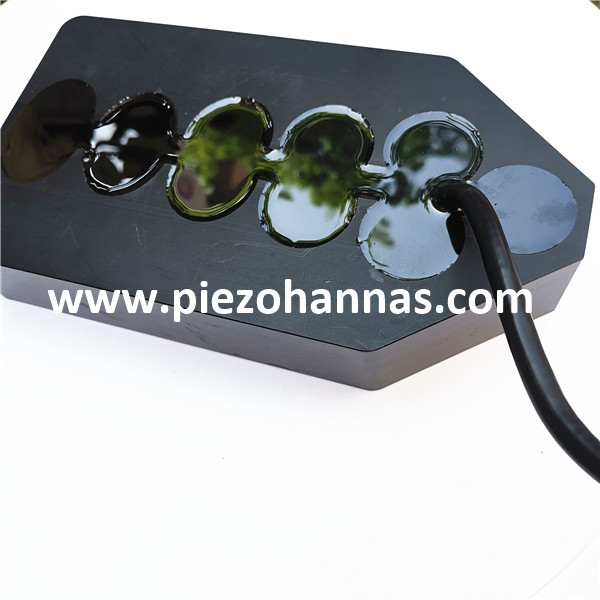

11 Beam Topographic And Geomorphic Scanning Transducer Ultrasonic Transducer for Ultrasonic Flowmeter
Technical parameters:
Items | Technical Parameters | Image | |
Name | 11 Beam topographic and geomorphic scanning transducer |
| |
Model | PHW-200-11D | ||
Frequency | 200KHz±5% | ||
Detection Distance | 0.6~120m | ||
Minimum Parallel lmpedance | Ω±20％ | ||
pF±20％ @1KHz | |||
Sensitivity | |||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
| (Beamwidth)Half-power Beam Width@-3dB: °±10%， Sharp Angle : °±10% | ||
Housing Material | POM | ||
Usage | Ultrasonic flowmeter, underwater rangefinder | ||
See the product structure drawing | |||
Protection Level | IP68 | ||
Weight | |||
Wiring Instructions | Red+，White-，Black: shielded wire； （temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
| |||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
