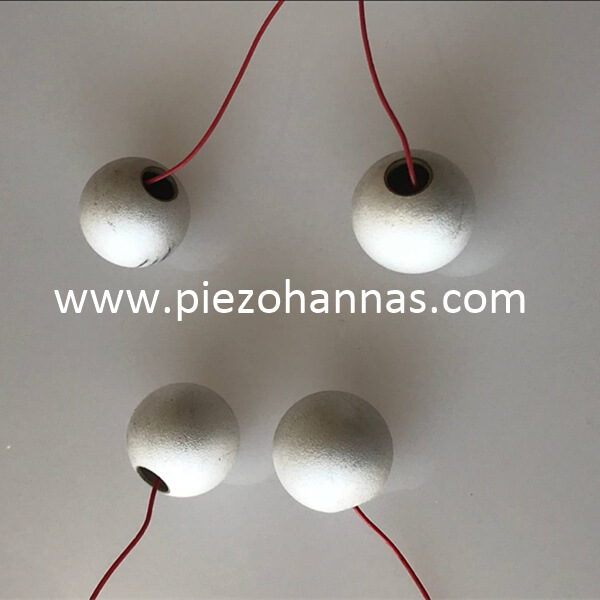

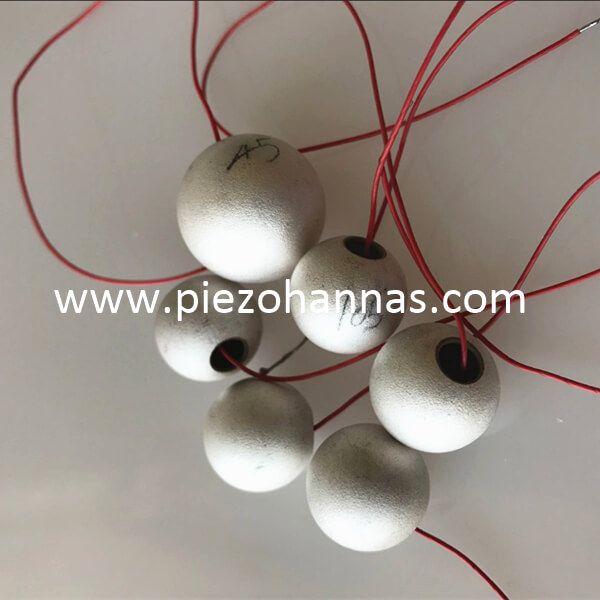

piezo ceramic sphere

Finding good lead-free piezoelectric ceramics, The development of lead-free piezoelectric ceramics and their application devices is of great significance and is an urgent market demand. At present, the research hotspots at home and abroad mainly focus on the doping research of two types of piezoelectric ceramics for ultrasonic cleaning  transducer, one is perovskite-structured sodium barium titanate (NaxBix) TiO3 abbreviated as BNT; the other is barium-containing layered Bi2O2 piezoelectric ceramics. The BNT base ultrasonic welding transducer is an A-site complex ion perovskite ferroelectric body for  are invented by Smolenkii et al. in 1960. The room temperature belongs to the trigonal crystal phase with a curie temperature of 320 °C.

BNT has strong ferroelectricity, piezo vibration sensor has good piezoelectric performance, small dielectric constant, good acoustic performance and low sintering temperature. It is currently the most widely studied and most attractive lead-free piezoelectric ceramic system. However, pure BNT piezo cylinder transducerhave a large coercive field at room temperature (Ec = 731 kV/cm), it is high leakage current, and difficulty in polarization, leading to poor ceramic compactness and chemical and physical stability.Therefore, a simple barium titanate sodium ceramic is difficult to put into practical use. At present, there are many researches on improving the performance of sodium barium titanate based piezo ceramic cylinder, mainly through doping modification to improve performance. La2O3-doped BNBT6 ceramics were prepared.

The results show that when the doping amount is 0.4%, the piezoelectric properties of the prepared piezoelectric ceramics reach the best, d33 = 175 pc /N, kp = 0.31, Qm = 118, and the grain boundaries are also obvious. The BaxSryTiO3 lead-free piezoelectric ceramics were prepared by double-site composite substitution. The piezoelectric constant d33 = 133 to 193 pc/N when x = 0.04 to 0.88, and the electromechanical coupling coefficient kp of piezo ceramic sphere is 16.2 to 32. 1 . Shan Zhaohui et al. (1-x) Bi0. 5 Na0. 5 Ti03-x (Mg1 /3Nb2 /3) O3 lead-free piezoelectric ceramic materials were prepared using a two-step synthesis process. The optimum molar fraction x = 0. 015 is when d33 = 101 pc /N and kt = 0.48. When La, Nb, and the like are added to 0.94 (Na0.5Bi0.5)TiO3, the coercive field of the material is lowered, and the piezoelectric activity is greatly improved. Wang et al.added CeO2 and La2O3 to (Na0. 5Bi0.5) 0.94BaO.06 TiO3. Through traditional sintering, the properties of the piezoelectric ceramic were obviously improved.
