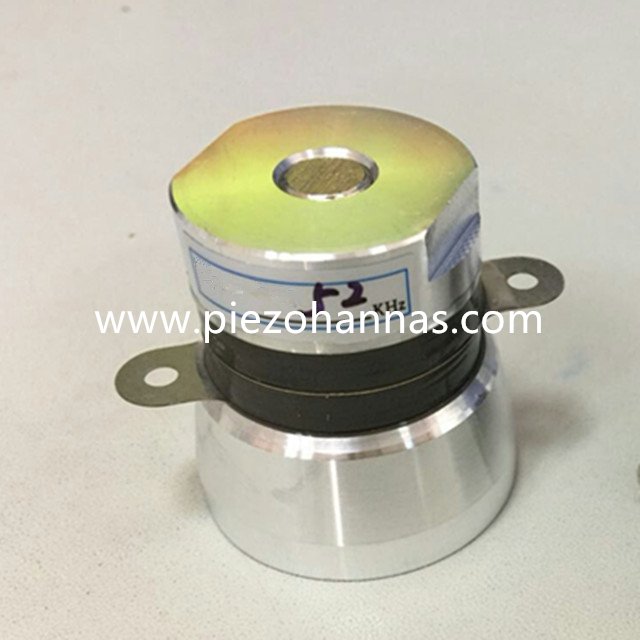

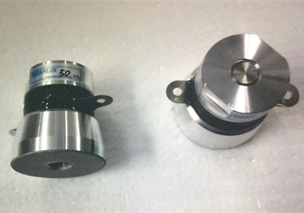

Ultrasonic Cleaning Transducer Manufacturers
 ultrasonic piezoelectric transducer |  25khz ultrasonic cleaning trasducer |  piezoelectric transducer for cleaning |
1.External dimension:
Dimension of wafer(mm):Ø50×Ø15×5
Diameter×height(mm):Ø67×74
Dimension of bolt hole:M10×1.0
2.Performance parameters
Static capacitance (Pf):6430
Resonance frequency(kHz):25.0±0.3
Bandwidth(kHz):1.10
Impedance(Ω):≤30Ω
Insulated impedance(Ω):≥100MΩ
Power(W): 110
Here are some regular sizes for piezoelectric ceramic transducers for cleaning.
Dimension(mm) | Frequency | Capacitance | Impedance(Ω) | Insulation Resistance(MΩ) | Power | |
PH002550 | 25*50 | 40±1 | 4000±10% | ≤20 | 2000 | 30 |
PH003033 | 30*33 | 200±3 | 2400±10% | ≤20 | 2000 | 30 |
PH003840 | 38*40 | 50±1 | 3400±10% | ≤20 | 2000 | 40 |
PH003840-1 | 38*40 | 170±3 | 3400±10% | ≤25 | 2000 | 40 |
PH004054 | 40*54.5 | 4000 | 124.0±1.0 | ≤20 | ≥100 | 80 |
PH004054 | 40*54 | 130±2 | 4800±10% | ≤20 | 2000 | 60 |
PH004056 | 40*56 | 80±3 | 4800±15% | ≤20 | 2000 | 60 |
PHZ003528 | 45*80 | 28±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 3800±10% | ≤20 | 2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 2900±10% | ≤20 | 2000 | 50 |
PH004580 | 45*80 | 28±1 | 4200±10% | ≤25 | 2000 | 50 |
PH004850 | 48*50 | 100±2 | 4800±15% | ≤20 | 2000 | 60 |
PHZ004528 | 48*50 | 40±1 | 3400±10% | ≤20 | ≥2000 | 60 |
PHZ003540 | 45*54 | 40±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH005058 | 50*58 | 68±1 | 5600±10% | ≤20 | 2000 | 60 |
PH005553 | 55*53 | 40±2 | 5000±15% | ≤20 | 2000 | 100 |
PH005568 | 55*68 | 28±1 | 2900±10% | ≤25 | 2000 | 50 |
PH005850 | 58*50 | 39±1 | 8500±10% | ≤20 | 2000 | 120 |
PHZ003825 | 59*72 | 25±1 | 5500±10% | ≤25 | ≥2000 | 60 |
PHZ003828 | 59*67 | 28±1 | 4800±10% | ≤20 | ≥2000 | 60 |
PH005968 | 59*68 | 28±1 | 3200±10% | ≤20 | ≥2000 | 60 |
PHZ003868 | 48*60 | 68±1 | 4800±10% | ≤20 | ≥2000 | 50 |
PHZ004533 | 45*82 | 33±1 | 7000±10% | ≤20 | ≥2000 | 80 |
PH006470 | 64*70 | 28/40±0.5 | 4500±15% | ≤20 | 2000 | 60 |
PH006475 | 64*75 | 33±2 | 6500±10% | ≤20 | 2000 | 60 |
PH006574 | 65*74 | 24.8±0.3 | 4000 | ≤25 | ≥100 | 60 |
PH006767 | 67*67 | 27.8±0.3 | 5300 | ≤25 | ≥100 | 90 |
PH006768 | 67*68 | 28±1 | 6500±10% | ≤20 | 2000 | 80 |
PH006768-1 | 67*68 | 28±1 | 5100±7% | ≤20 | 2000 | 80 |
PHZ005028 | 67*70 | 28±1 | 8200±10% | ≤20 | ≥2000 | 100 |
PH006770 | 67*70 | 28±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006777 | 67*77 | 25±1 | 9000±10% | ≤20 | 2000 | 100 |
PH006777-1 | 67*77 | 25±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006774 | 67*74 | 25±0.3 | 6430 | ≤30 | ≥100 | 110 |
PH006792 | 67*92 | 20±2 | 6500±10% | ≤20 | 2000 | 100 |
If these transducer cannot meet your requirements,please tell us your size and frequency,we can accept the customization.
