Ultrasonic sensors have become integral components in various industries, revolutionizing the way we measure distances, detect flaws, and conduct medical diagnostics. These devices utilize high-frequency sound waves beyond the human hearing range to perform a multitude of tasks with remarkable precision. Among these, Ultrasonic Transducers play a pivotal role in converting electrical signals into ultrasonic waves and vice versa, enabling a wide array of applications from industrial automation to healthcare.
At the core of ultrasonic sensing technology lies the principle of using sound waves at frequencies above 20 kHz to interact with various mediums. These sensors emit ultrasonic pulses and measure the time it takes for the echo to return after reflecting off an object. This time-of-flight measurement is then used to calculate distances or detect the presence of targets. The ability to operate in environments where optical sensors may fail makes ultrasonic sensors incredibly versatile.
Ultrasonic sensors can be broadly classified into three categories:
Transmitters: Convert electrical signals into ultrasonic waves.
Receivers: Detect ultrasonic waves and convert them back into electrical signals.
Transceivers: Capable of both transmitting and receiving ultrasonic signals.
These classifications allow for the customization of ultrasonic systems to suit specific application requirements, ranging from simple distance measurements to complex imaging systems.

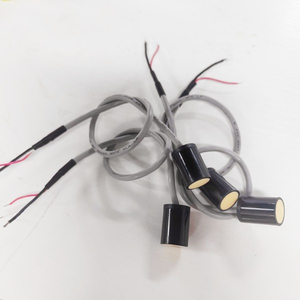

In industrial settings, ultrasonic sensors are widely used for distance measurement and level detection in tanks or channels. They provide accurate readings regardless of the material's transparency or color, which is a significant advantage over optical sensors. For instance, in automated factories, ultrasonic sensors allow for precise material handling by detecting the presence and position of objects, thus enhancing operational efficiency.

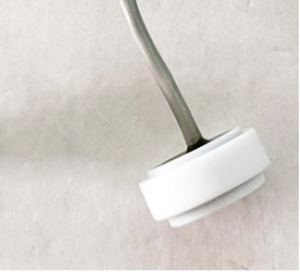

Ultrasonic flow meters utilize ultrasonic transducers to measure the velocity of fluids in a pipe. By calculating the difference in transit times of ultrasonic pulses traveling with and against the flow, these devices can determine the flow rate accurately. This non-intrusive method is essential in industries where maintaining the integrity of the fluid is critical.
Ultrasonic sensors play a crucial role in non-destructive testing (NDT) to detect internal flaws in materials. By sending high-frequency ultrasonic waves into a material and analyzing the reflected signals, technicians can identify cracks, voids, or other defects without damaging the component. This technique is vital in industries such as aerospace, automotive, and construction, where material integrity is paramount.
In the medical field, ultrasonic sensors are indispensable tools for diagnostic imaging. Ultrasonography leverages ultrasonic transducers to create images of internal body structures, aiding in the diagnosis and monitoring of various conditions. These non-invasive procedures are safe, as they do not use ionizing radiation, making them suitable for fetal monitoring and organ imaging.
Beyond diagnostics, ultrasonic technology is utilized in therapy, such as in physiotherapy for deep tissue heating and in targeted drug delivery systems. High-intensity focused ultrasound (HIFU) is an emerging treatment modality for non-invasive surgery, using focused ultrasound waves to ablate diseased tissue.
Modern vehicles incorporate ultrasonic sensors for various functions, enhancing safety and convenience. Parking assist systems employ these sensors to detect obstacles, providing drivers with auditory and visual alerts to prevent collisions. Adaptive cruise control and blind-spot detection systems also rely on ultrasonic technology to monitor surroundings and maintain safe distances between vehicles.
Most ultrasonic transducers operate based on the piezoelectric effect, where certain materials generate an electric charge in response to mechanical stress. Conversely, they can deform when an electric field is applied, emitting ultrasonic waves. Common piezoelectric materials include quartz, ceramics like lead zirconate titanate, and polymer films.
Capacitive ultrasonic transducers use electrostatic fields between a conductive diaphragm and a backing plate to produce or detect ultrasonic waves. These devices can be advantageous in applications requiring broad bandwidth and high sensitivity.
Continuous research and development have led to significant advancements in ultrasonic sensor technology. Innovations such as Micro-Electro-Mechanical Systems (MEMS) have enabled the production of miniaturized ultrasonic transducers, expanding their applications in wearable devices and portable systems. These developments allow for real-time monitoring and data collection in various fields.
Environmental conditions like temperature, pressure, and humidity can affect the speed of sound and, consequently, the accuracy of ultrasonic measurements. Therefore, calibration and compensation techniques are essential to ensure reliability in varying conditions. Addressing these factors is crucial for applications such as outdoor level sensing and flow measurement in pipelines.
Ultrasonic sensors may face challenges when detecting small objects or targets with irregular surfaces that scatter sound waves. Materials that absorb ultrasonic energy, like foam or soft fabrics, can also impede detection. Implementing sensors with higher frequencies or specialized transducer designs can mitigate some of these limitations.
The future of ultrasonic sensor technology is promising, with potential expansions into new industries and applications. Advancements in materials science may lead to more sensitive and durable transducers. Integration with artificial intelligence and machine learning algorithms could enhance interpretation of ultrasonic data, enabling smarter and more autonomous systems.
Ultrasonic sensors are versatile tools that have transformed various sectors, offering precise measurement and detection capabilities. Their applications span from industrial automation to medical diagnostics, underlining their significance in modern technology. With ongoing innovations, the role of ultrasonic sensors is poised to expand further, driving advancements across multiple fields. Understanding the functions and uses of these devices is essential for leveraging their full potential in both current and future technologies. For high-quality ultrasonic transducers tailored to specific applications, partnering with experienced manufacturers is crucial.

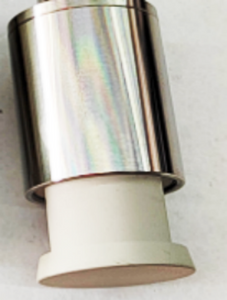

As a leader in ultrasonic technology, we have developed over 1,000 types of transducers, including those for depth, distance, flowmeters, gas meters, and medical diagnostics. Our commitment to quality ensures that you can select products that meet your precise needs. Explore our range of Ultrasonic Transducers to find the perfect solution for your application.
Ultrasonic sensors are used for a variety of applications, including distance measurement, level detection, flow measurement, flaw detection in materials, and medical diagnostics. They operate by emitting ultrasonic waves and measuring the echo's return time to calculate distances or detect objects.
Ultrasonic transducers convert electrical energy into ultrasonic waves and vice versa, typically using the piezoelectric effect. When an electric field is applied, piezoelectric materials deform, generating ultrasonic waves. Conversely, incoming ultrasonic waves cause the material to generate an electric charge, which is then processed by electronic circuits.
Industries such as manufacturing, automotive, aerospace, healthcare, and construction benefit from ultrasonic sensors. They enhance automation, safety, and quality control by providing accurate measurements and detection capabilities in environments where other sensors may not perform effectively.
Yes, environmental factors like temperature, humidity, and pressure can affect the performance of ultrasonic sensors by altering the speed of sound in the medium. Proper calibration and compensation techniques are necessary to maintain accuracy under varying conditions.
Ultrasonic sensors are effective with most materials, but they may struggle with objects that absorb ultrasonic waves, such as soft fabrics or foam. Additionally, very small objects or those with complex shapes that scatter sound waves might be challenging to detect. Selecting the appropriate sensor frequency and design can help address these issues.
Ultrasonic sensors are less affected by the color or transparency of objects, making them suitable for detecting clear or reflective materials where optical sensors may fail. They also perform well in dusty, humid, or foggy environments where visibility is reduced.
Ultrasonic sensors are integrated into modern technology through various means, including MEMS technology for creating compact and efficient transducers. They are used in wearable devices for health monitoring, autonomous vehicles for obstacle detection, and smart manufacturing systems for real-time monitoring and control.
