ultrasonic piezoelectric transducer crystal for ultrasonic welding

Share to:

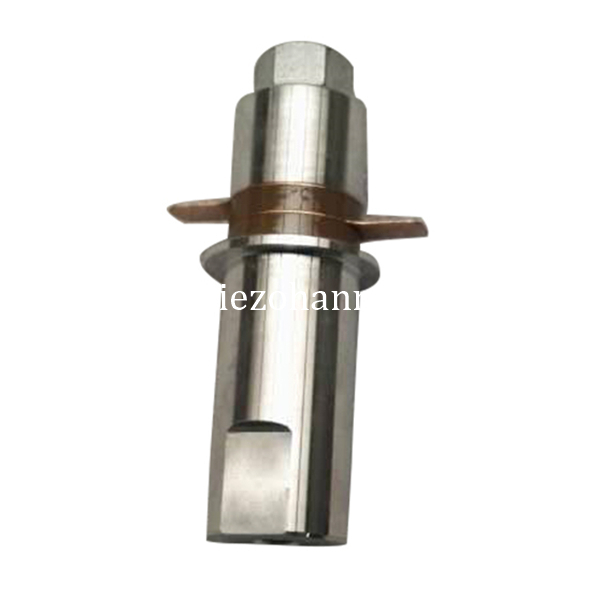

ultrasonic piezoelectric transducer crystal for ultrasonic welding

Name: ultrasonic piezoelectric transducer crystal for ultrasonic welding
Brand: Piezohannas
Rating: 5.0 (2 reviews)

The ultrasonic welding transducer belongs to the high-power ultrasonic transducer.Equipped with the energy-collecting booster and work head, it can generate ultrasonic vibration, which has a high-frequency hot melting effect on the gap surface of the being pressed plastic parts, so as to achieve the purpose of welding.

Availability:

Model:
PH61161
Brand:
Piezohannas
Code:
PH61161

Product Description

Ultrasonic Welding Transducer Manufacturers

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

Ultrasonic Distance Transducer supplier.jpg

ultrasonic welding trasducer

piezoelectric ceramic transducer

ultrasonic transducer for ultrasonic welding

Specifications :

diameter：61mm

height：161.8mm

resonant frequency (fr): 15 ± 0.5 kHz

resonant resistance (ro):max. 20 Ω

capacitance (cp): 12nF± 10.0%

Bandwidth (Δf)： ⊃3; 1 kHz

Insulation Resistance (R) : ⊃3; 2000 MΩ with 2000VDC

test atmosphere: 23±3℃ 40 ~ 70%rh.

Fr and Ro: HP-4194 Impedance Analyzer

lcr meter: 1khz，1vrms

voltage: 5000 Vp-p

current: 2ap-p

Drawing:


Features:

The ultrasonic transducer for welding produced by our company has the features as follows:

A. Low resonance impedance
B. High Q mechanical value
C. High efficiency of mechanical and electrical transforming
D. Low calorific capacity
E. Large amplitude and high vibration speed.

Here are some regular sizes for piezoelectric ceramic transducers for welding.

Type	Dimension(mm) *diameterlength**	Frequency (KHz)	Capacitance (pF)	Impedance(Ω)	Insulation Resistance(MΩ)	Power (W)
PH13111	13 *111	62	3600	≤20	2000	25
PH13111-1	13 *111	62	3000	≤20	2000	25
PH1560	15 *60	40	2600	≤20	2000	30
PH1562	15 *62	40	2600	≤20	2000	30
PH1547	15 *47	60	2600	≤20	2000	50
PH2056	20 *56	50	2500	≤20	2000	30
PH2589	25 *89	28	2000	≤20	2000	100
PH3090	30 *90	28	5700	≤20	2000	200
PH3091	30 *91	30	3500	≤20	2000	200
PH40125	40 *125	20	8000	≤20	2000	500
PH4090	40 *90	28	10000	≤20	2000	500
PH50180	50 *180	15	15000	≤20	2000	700
PH50107	50 *107	20	15000	≤20	2000	1000
PH50107-1	50 *107	20	9000	≤20	2000	1000
PH50120	50*120	20±2	13000±10%	≤20	≥2000	2000
PH60160	60*160	15	11000	≤20	2000	1500
PH50116	50.2 *116.9	20±1	15000±10%	≤20	≥2000	1000
PH61161	61*161.8	15±0.5	14000±15%	≤20	≥2000	2000
PH51165	51*165.4	15±0.5	10.2nF±10%	≤20	≥2000	2000
PH64232	64*232	20.15	9670	≤10	≥100	1250
PH64116	64*116	20	14680	≤25	≥100	1050
PH80233	80*233	14.90	8000	≤10	≥100	2100

If these transducer cannot meet your requirements,please tell us your size,our factory can accept the customization.
