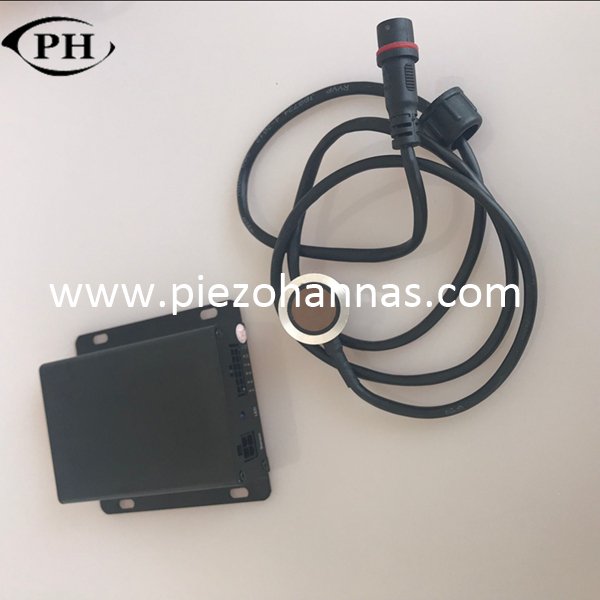

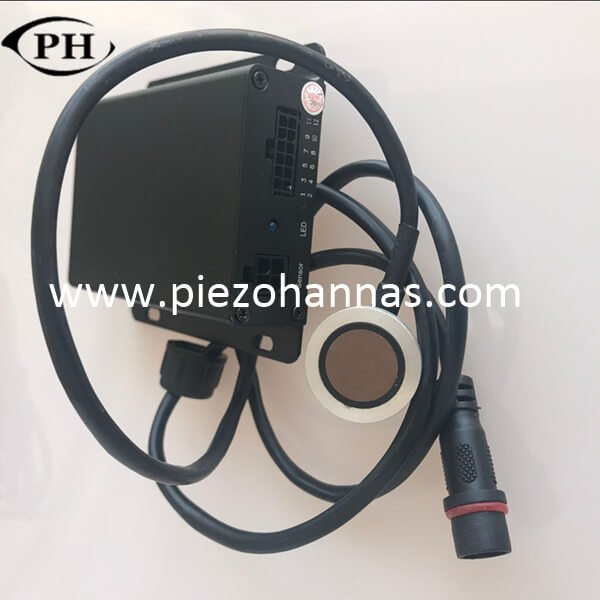

ultrasonic fuel level meter for liquid measurement

Operating Voltage

DC9V-48V

Power supply ripple

Less than 100mV

Operating current

Less than 30mA

Measuring distance

3cm to 100cm;

Resolution

0.1mm

Measurement accuracy

0.5%

Temperature compensation range

-40 ºC-  +80 ºC

Output mode:

Analog output

Voltage output (default)

1-5V (corresponding 0-100cm)

Current output (optional)

4-20mA (corresponding 0-100cm)

Digital output

RS232(default)

See the "communication protocol"

RS485(optional)

Anti-theft alarm output

need external connection a alarming horn to achieve alarm

Install method

bottom of fuel tank/can, water tank

Material of tank/container

Iron,aluminum,stainless steel (see note 4)

Thickness of material

Within 5.5mm

Operating temperature

-40 ºC - +80 ºC

Storage temperature

-50 ºC - +100 ºC

Size

Ultrasonic transducer

Operating temperature

-40 ºC - +80 ºC

IP grade

IP66

Cable length

8m, with shield

Gross weight(G)

Notice:
If no any requirement we'll delivery the goods to you as the default output mode: analog output: 1-5V + digital output: RS232; If you need other output modes please advise us in advance;
The liquid measure is default as the diesel, the distance of the internal output is calculated by the propagation velocity of voice in the diesel. If you want to measure other liquid please advise us in advance;
The measurement accuracy is 0.5%, which is based on the liquid and the liquid level is calm without shaking, the material of fuel tank is iron, for the measuring accuracy which has 0-5mm deviation as different material and thickness of fuel tank;
The measurement distance is based on the material and thickness of tank, if the thickness of tank is more than 5.5mm, please also kindly advise us in advance;
