PH140
Piezohannas
PH140
Features:
With built-in thermal printer
PC Software for data transmission, analysis and measurement reports printing
Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
Test at any angle and direction, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Rechargeable Li-ion battery
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy,
copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Technical Specification:
Model | PH140 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | ±6HLD/ ±1.5HRC |
Display | LCD with back-light |
Memory | 600 groups |
PC Connection | Available |
Printer | Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm |
Battery type | Rechargeable Li-ion battery |
Operating temperature | -20℃~+60℃ |
Dimensions | 230×86×46mm |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 400g |

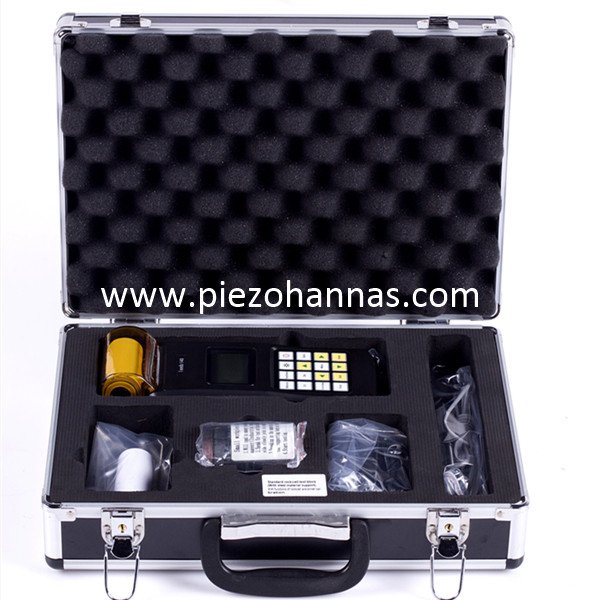

Standard Delivery | Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer. |
Optional Accessories | Optional Impact Devices、Shaped support ring、Paper for printer |
Features:
With built-in thermal printer
PC Software for data transmission, analysis and measurement reports printing
Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
Test at any angle and direction, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Rechargeable Li-ion battery
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy,
copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Technical Specification:
Model | PH140 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | ±6HLD/ ±1.5HRC |
Display | LCD with back-light |
Memory | 600 groups |
PC Connection | Available |
Printer | Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm |
Battery type | Rechargeable Li-ion battery |
Operating temperature | -20℃~+60℃ |
Dimensions | 230×86×46mm |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 400g |
Standard Delivery | Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer. |
Optional Accessories | Optional Impact Devices、Shaped support ring、Paper for printer |
