PR1000K052
Piezohannas
PR1000K052

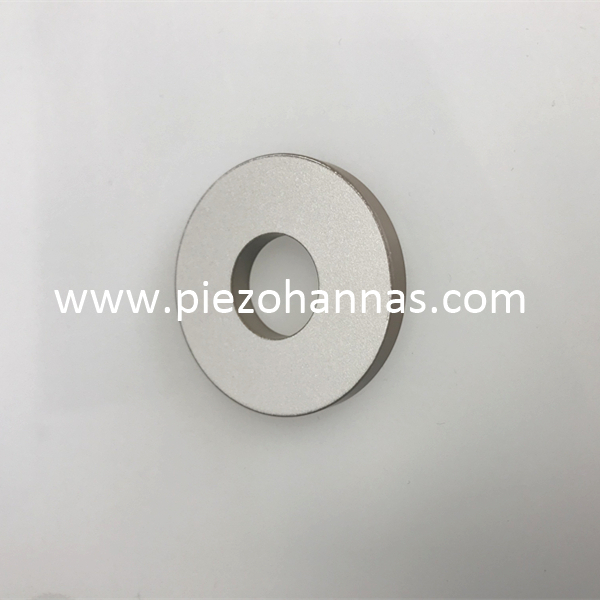

Inexpensive Piezoelectric Ring Crystal for Ultrasonic textile Welding
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
1.Product Description
Dimension : OD60mm xID30mm x Thi10mm
Material: Pzt4 or Pzt8
Range Of piezo ceramic ring
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Dimension(mm) | Capacity C(pF) | Weak Field Dissipation Tgδ(12v) | Strong Fied Dissipation Tgδ(400v) | Radial Frequency Fr(KHz) | ResonanceImpedance | Thick Frequency Ft(KHz) | Coupling Modulus Kr(%) | |
Φ10ｘΦ5ｘ2 | 240±10% | ≤0.5% | ≤1.0% | 153±5% | ≤15 | 1020 | ≥45 | |
Φ16ｘΦ8ｘ4 | 340±10% | ≤0.5% | ≤1.0% | 95.8±5% | ≤20 | 512 | ≥45 | |
Φ25ｘΦ10ｘ4 | 935±10% | ≤0.5% | ≤1.0% | 65.5±5% | ≤15 | 512 | ≥45 | |
Φ30ｘΦ10ｘ5 | 1150±10% | ≤0.5% | ≤1.0% | 58.4±5% | ≤15 | 410 | ≥45 | |
Φ32ｘΦ15ｘ5 | 1080±10% | ≤0.5% | ≤1.0% | 49.2±5% | ≤15 | 410 | ≥45 | |
Φ35ｘΦ15ｘ5 | 1430±10% | ≤0.5% | ≤1.0% | 45.5±5% | ≤15 | 410 | ≥45 | |
Φ38ｘΦ15ｘ5 | 1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | |
Φ40×Φ12×5 | 2070±12.5% | ≤0.5% | ≤1.0% | 45.9 | ≤15 | ≥46 | ||
Φ40ｘΦ15ｘ5 | 1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | |
Φ40×Φ20×5 | 1700±12.5% | ≤0.3 | ≤1.0% | 37.9 | ≤15 | ≥45 | ||
Φ40×Φ17×6 | 1555±12.5% | ≤0.3 | ≤1.0% | 40.5 | ≤15 | ≥45 | ||
Φ42ｘΦ15ｘ5 | 2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | |
Φ42ｘΦ17ｘ5 | 2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | |
Φ45ｘΦ15ｘ5 | 2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | |
Φ50ｘΦ17ｘ5 | 3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | |
Φ50ｘΦ17ｘ6 | 2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | |
Φ50×Φ20×6 | 2490±12.5% | ≤0.3 | ≤1.0% | 33.2 | ≤15 | ≥45 | ||
Φ50×Φ27×6 | 2100±12.5% | ≤0.3 | ≤1.0% | 29.3 | ≤15 | ≥45 | ||
Φ60×Φ30×10 | 1922±12.5% | ≤0.3 | ≤1.0% | 25.3 | ≤15 | ≥45 | ||
4. Ultrasonic Welding Applications:
Ultrasonic welding is found everywhere where thermoplastics are used and strict demands are placed on the method of joining. Compared with other welding methods, ultrasonic welding is particularly suitable where rapid process times, coupled with good process reliability are demanded or if no other fillers or solvents are to be used. Ultrasonic welding is also characterised by the quality, strength and accurate reproducibility of the welds.The process itself is very special. Depending on the application, the welding results depend upon various parameters. In ultrasonic welding, high-frequency mechanical oscillations cause molecular and interface friction in the joining zone. This creates the heat required for welding and the material is plasticised. Following the effect of ultrasound, homogeneous stabilisation of the joining zone is achieved as a result of brief cooling times, whilst maintaining the welding pressure. In addition, both the geometry of the sonotrodes and the anvil, as well as the shape in the welding zone itself, affect the welding result.
ultrasonic weldings cater for widely different applications in various sectors. For example, in the automotive industry, it is mainly interior or exterior components, which are welded, whilst in the packaging industry, packaging is sealed by ultrasound. In the textile industry, textiles made from thermoplastic fabrics can be joined with absolutely tight seams by fusing the materials, Other plastics industries, such as domestic appliances, electronics and electrical engineering or medical engineering, make use of the advantages of ultrasonic welding for appropriate applications.
5. Applications Image:
