PH191

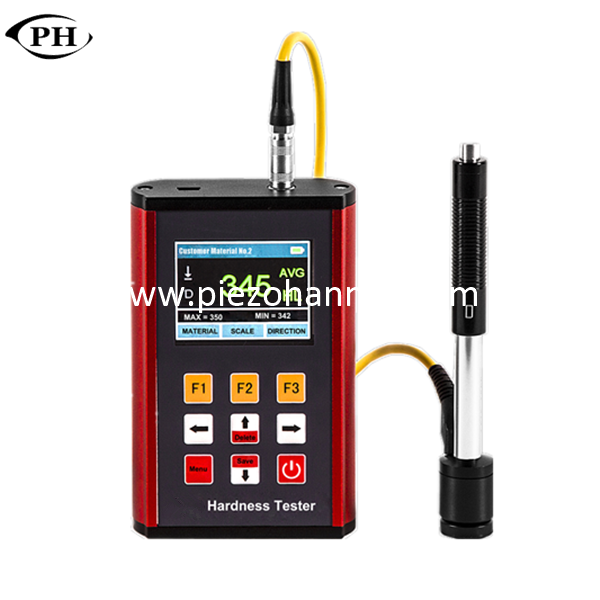

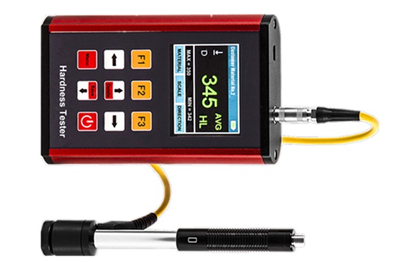

Hardness Tester Manufacturers
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
![RW_0D_(CV8_LT3%]M$2Z{@0.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ilBqnKjlRikSrjmqimio/RW_0D_-CV8.png "RW_0D_(CV8_LT3%]M$2Z{@0.png") hardness tester |  hardness meter |  metallic hardness tester meter |
Function & Feature:
LCD color screen with back-light
Measuring hardness of all metallic materials
Software for PC connection
Freely switch to different hardness scales (HL、HB、HRB、HRC、HRA、HV、HS)
Automatically identify 7 types of Impact devices for special application
Upper and lower limit and sound alarm
Rechargeable Li-ion battery with Low power consumption, standby time 150 hours.
Measuring Materials:
For all metallic materials.
Technical Specification:
Model | PH191 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HRA,HS,HB,HV |
Accuracy | ±6HLD/ ±1.5HRC |
Display | Color LCD with back-light |
Memory | 600 groups |
PC Connection | Available |
Battery | Rechargeable Lithium Battery |
Operating Temperature | 0℃~40℃ |
Dimensions | 130×80×30mm |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 340g |

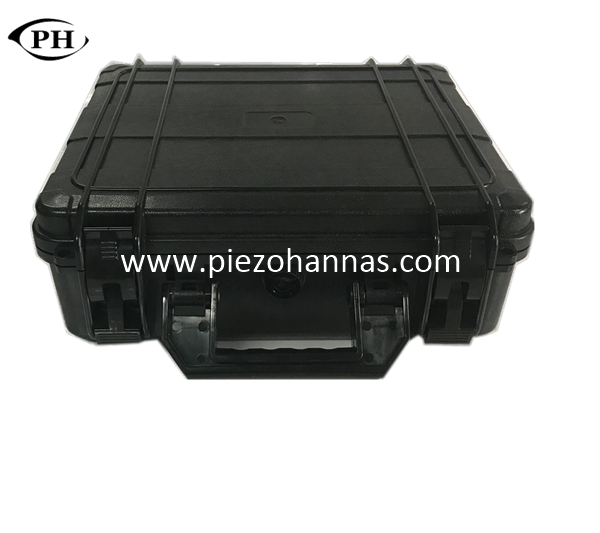

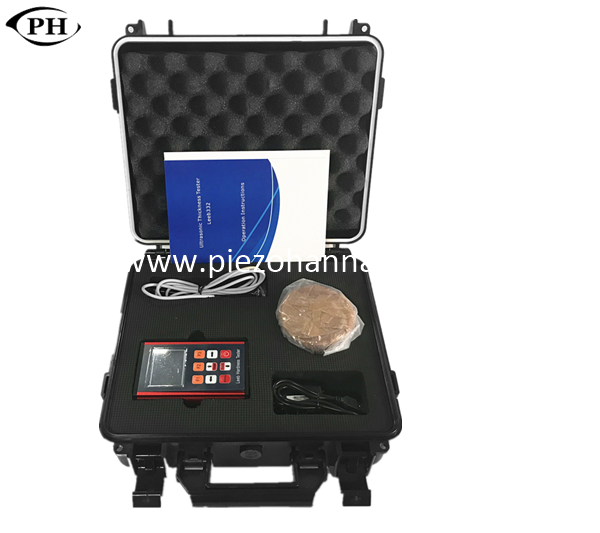

Standard Delivery | Main unit,Impact Device type D,Operation manual,Power charger,Small supporting ring,Cleaning brush, Certificate, USB cable,calibration block. |
Optional Accessories | Impact DC,D+15,DL,G,C,E, Shaped support ring, Software |
