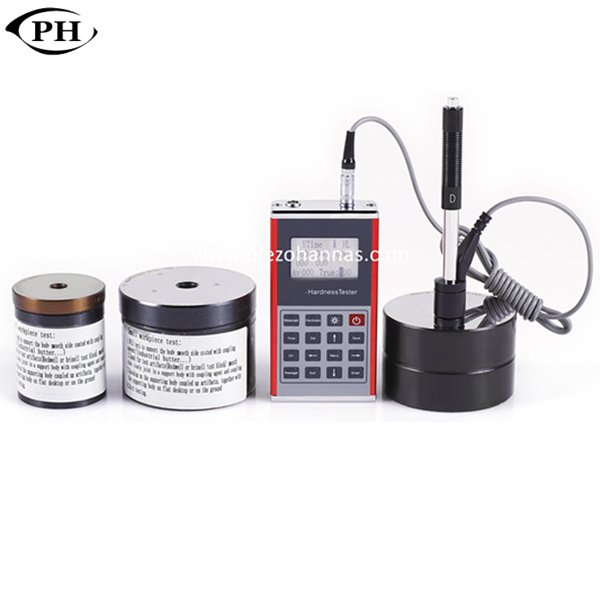

PH130
Piezohannas
PH130
Features:
High quality metal sheel.
Automatically identify 7 types of Impact devices for special application
Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
Direct calibration on HL,HRC,HB.
Test at any angle, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Technical Specification:
Model | PH130 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | ±6HLD/ ±1.5HRC |
Display | LCD with back-light |
Memory | 350 groups |
PC Connection | Available |
Battery | 2 AAA |
Operating Temperature | -20℃~+60℃ |
Dimensions | 130×70×25mm |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 300g |
Standard Delivery | Main unit,Impact Device type D,Operation manual, Small supporting ring,Cleaning brush, Calibration block,Certificate. |
Optional Accessories | optional Impact Devices,Shaped support ring,Software |
