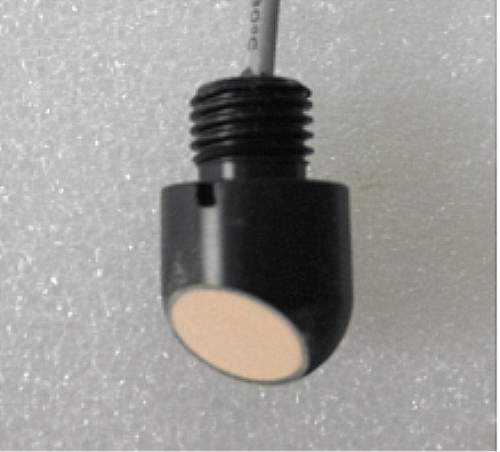

Ultrasonic Wind Sensor Wind Speed Measurement in Anemometer

ultrasonic transducer for anemorumbometer,wind speed.
Availability:
Quantity:
Inquire Add to Basket

  • PHA-200-01KG

  • Piezohannas

  • PHA-200-01KG

    Ultrasonic Wind Sensor Wind Speed Measurement in Anemometer


Items

Technical Parameters


Name

200KHz ultrasonic transducer



`C3@$EC%34ZU`RFF6C41

Model

PHA-200-01KG

Frequency

200KHz±5%

Detection Distance

0.10～1.5m

Minimum

Parallel lmpedance

600Ω±20％

Capacitance

800pF±20％ @1KHz



Sensitivity

Driving Voltage：800Vpp，Distance:0.3m，

Echo Amplitude：25mV

Operating

Voltage

Peak Voltage＜1000 VPP

Operating

Temperature

-40～+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:8.4°±2，

Sharp Angle:20°±4

Housing Material

POM



Usage

Anemorumbometer ,gas flowmeter

Installation

Dimension

thread：M8*1

Protection Level

IP68

Weight

10g±5％（Length：25cm）

Wiring Instructions

integrated type：connector：Red+，White-，Black: shielded wire；



Admittance Curve

Product Structure Diagram





9}{E9)R3@AM7L488$G158)G

KGSL%6FPA2PY(O3_YCK043U


Application Image:


Our four transducers are fix on the holder of anemometer


HPRF()UJJD[U3%E3GF1S@2


78UY1UEVN%`F]}I93YX2T0
