PHA-200-01I
Piezohannas
PHA-200-01I

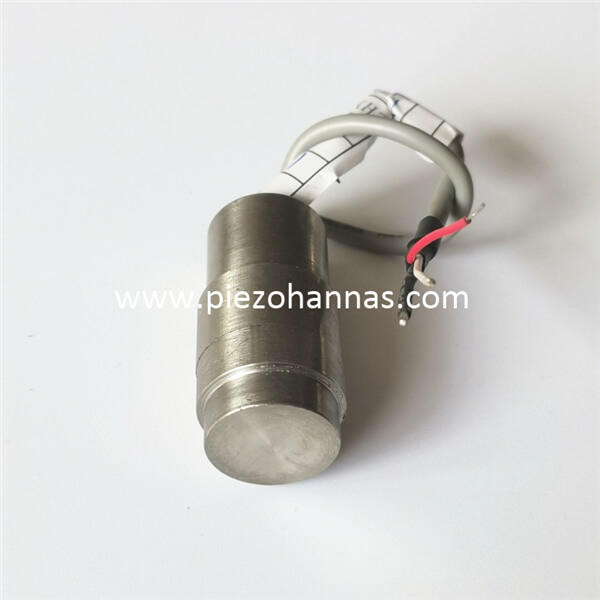

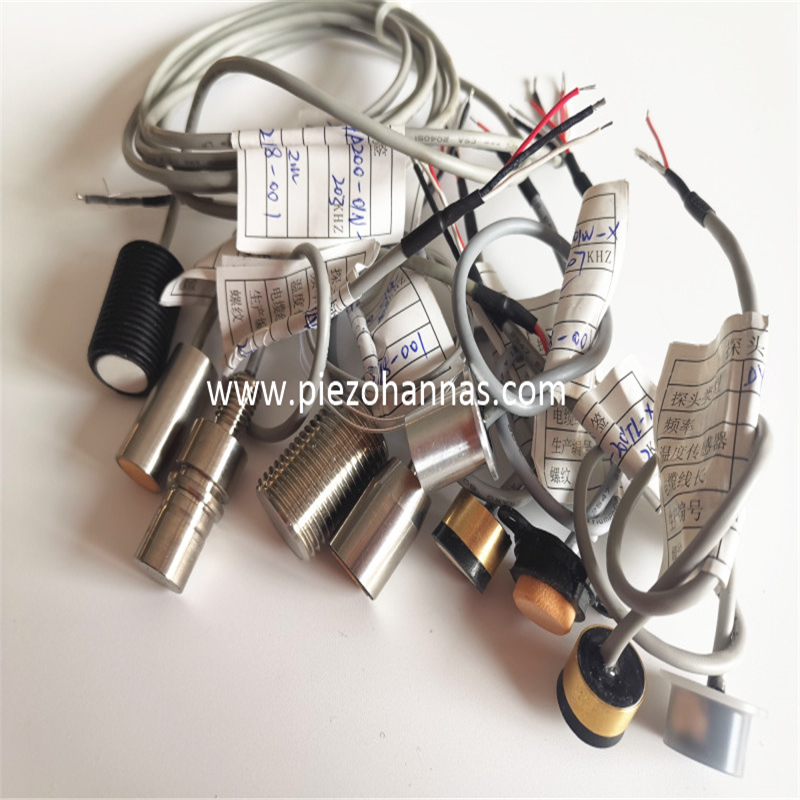

Titanium Alloy 200Khz Ultrasonic Transducer for Ultrasonic Gas Flow Meter
Technical parameters:
Items | Technical Parameters | Image | |
Name | 200KHz Ultrasonic transducer | | |
Model | PHA-200-01I | ||
Frequency | 200KHz±5% | ||
Detection Distance | 0.10～1.5m | ||
Minimum Parallel lmpedance | 1900Ω±20％ | ||
320pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude：mV | ||
-40～+80℃ | |||
≤16Kilos or 1.6MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:6°±10%， Sharp Angle:15°±10% | ||
Housing Material | titanium alloy | ||
Usage | ultrasonic gas flowmeter | ||
Protection Level | IP68 | ||
Weight | 32g±5％（Length：20cm） | ||
Wiring instruction | Integrated interface：Red+，White-，Black: shielded wire （ temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
| | ||
Block diagram of ultrasonic distance transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
Application for Ultrasonic Gas Flowmeter :
Although industrial gas flow meters are widely utilised for liquid and water applications, it has long been accepted that clamp on gas flowmeter technology could not be applied to mass gas flow measurement primarily due to fundamental theoretical measurement limits. the transmitted sound energy is received by traditional ultrasonic transducers. However, advances in clamp on gas flow measurement technology and processing have meant that despite lower acoustic impedance levels and higher attenuation levels in most gases, a clamp on gas flow meter can now measure transit times in gases where signal-to-noise ratios are extremely low. It is now possible to measure natural gas, steam, compressed air, hydrogen, compressed air and many more using clamp on flow meters.A clamp on ultrasonic gas flow meter produces signals that are five to ten times more powerful than those of traditional ultrasonic transducers. The new clamp on transducers produce clean, coded signals with very minimal background noise. The result is that a clamp on gas flow meter can now provide optimum performance even with low-density gas applications.
