PR1000K092
Piezohannas
PR1000K092
Pzt5H material piezo ring piezoelectric transducer for tonpils transduser
1.Product Description:

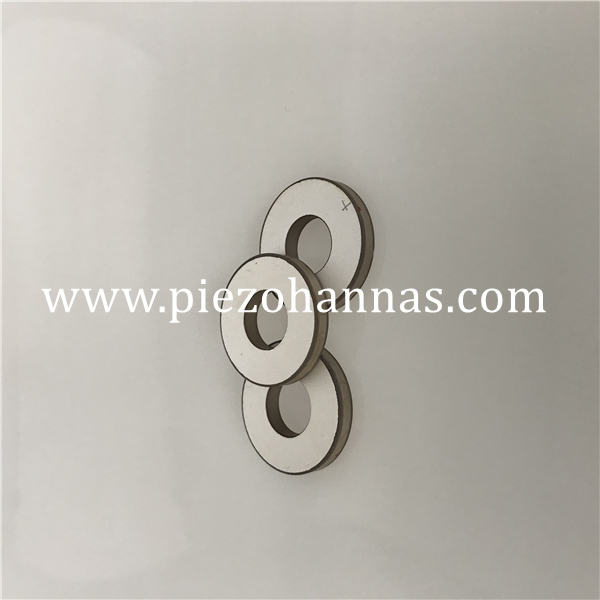

Dimension : OD50mm xID17mm x Thi5mm
Material :PZT-5H
Application: Tonpils Transduser
2.Tonpils Transduser Application:
The tonpilz (sound mushroom) piezoelectric transducer is a transducer for relatively low frequency, high power sound emission. The transducer consists of piezoceramic rings stacked between massive ends and pre-stressed by a central bolt. The tail and head mass lower the resonance frequency of the device.
In this model the frequency response of the transducer when the bolt is not pre-stressed is studied. The Acoustic-Piezoelectric Interaction, Frequency Domain Interface of the Acoustics Module is used for the study. This interface has all the predefined multiphysics couplings necessary to model this system (acoustic-structure and electric-structure).
The model determines the deformation and stresses in the device, the radiated pressure field and sound pressure level, as well as the spatial far-field sensitivity, the transmitting voltage response (TVR) curve of the transducer, and the directivity index (DI) of the sound beam.
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Dimension(mm) | Capacity C(pF) | Weak Field Dissipation Tgδ(12v) | Strong Fied Dissipation Tgδ(400v) | Radial Frequency Fr(KHz) | ResonanceImpedance | Thick Frequency Ft(KHz) | Coupling Modulus Kr(%) | |
Φ10ｘΦ5ｘ2 | 240±10% | ≤0.5% | ≤1.0% | 153±5% | ≤15 | 1020 | ≥45 | |
Φ16ｘΦ8ｘ4 | 340±10% | ≤0.5% | ≤1.0% | 95.8±5% | ≤20 | 512 | ≥45 | |
Φ25ｘΦ10ｘ4 | 935±10% | ≤0.5% | ≤1.0% | 65.5±5% | ≤15 | 512 | ≥45 | |
Φ30ｘΦ10ｘ5 | 1150±10% | ≤0.5% | ≤1.0% | 58.4±5% | ≤15 | 410 | ≥45 | |
Φ32ｘΦ15ｘ5 | 1080±10% | ≤0.5% | ≤1.0% | 49.2±5% | ≤15 | 410 | ≥45 | |
Φ35ｘΦ15ｘ5 | 1430±10% | ≤0.5% | ≤1.0% | 45.5±5% | ≤15 | 410 | ≥45 | |
Φ38ｘΦ15ｘ5 | 1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | |
Φ40×Φ12×5 | 2070±12.5% | ≤0.5% | ≤1.0% | 45.9 | ≤15 | ≥46 | ||
Φ40ｘΦ15ｘ5 | 1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | |
Φ40×Φ20×5 | 1700±12.5% | ≤0.3 | ≤1.0% | 37.9 | ≤15 | ≥45 | ||
Φ40×Φ17×6 | 1555±12.5% | ≤0.3 | ≤1.0% | 40.5 | ≤15 | ≥45 | ||
Φ42ｘΦ15ｘ5 | 2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | |
Φ42ｘΦ17ｘ5 | 2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | |
Φ45ｘΦ15ｘ5 | 2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | |
Φ50ｘΦ17ｘ5 | 3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | |
Φ50ｘΦ17ｘ6 | 2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | |
Φ50×Φ20×6 | 2490±12.5% | ≤0.3 | ≤1.0% | 33.2 | ≤15 | ≥45 | ||
Φ50×Φ27×6 | 2100±12.5% | ≤0.3 | ≤1.0% | 29.3 | ≤15 | ≥45 | ||
Φ60×Φ30×10 | 1922±12.5% | ≤0.3 | ≤1.0% | 25.3 | ≤15 | ≥45 | ||
