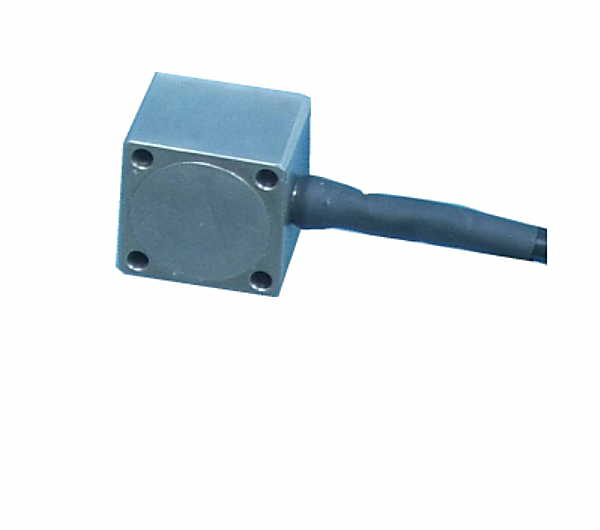

Piezoresistive DC MEMS Accelerometer for Vibration Measurement

Features:

FEATURES:

•Differential capacitance working principle
•Wide frequency range from DC to 400Hz
•Stable performance
•Convenient in use

Availability:

Model:
CA-DR-1005
Code:
CA-DR-1005

Product Description

FEATURES:

Differential capacitance working principle
Wide frequency range from DC to 400Hz
Stable performance
Convenient in use

Specifications:

Sensitivity (at 20°±5C）	25mV/m/s²±10％
Measurement Range	±50 m/s²
Transverse sensitivity	≤5 ％
Non-linearity	≤0.5％
Frequency Range	0 to 500 Hz
Mounted Resonance Frequency	5,000 Hz
Temperature Range	-40 to +85 ℃
Temperature Sensitivity	0.1 mV/℃
Shock limit (No Supply)	±5000 m/s²
Power Supply	+6 to +16 VDC
Operating Current	≤3mA
Offset Voltage	2.5±0.1VDC
Noise(100Hz)	＜0.05mVrms
Output impedance	＜100 Ω
Weight	20 g
Case material	Stainless Steel

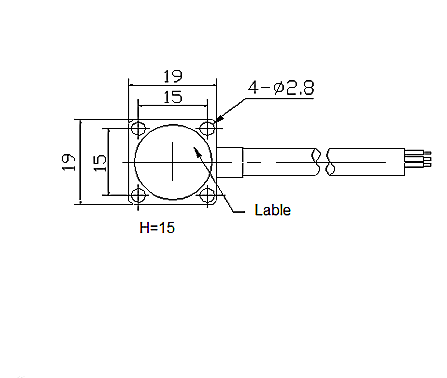

Mounting	4-Φ2.8 hole
Output Cable	2m Length with 3-core: Red: Power Supply ; White: Ground; Green: Signal Output
Accessories
Calibration chart	1
M2.5×20 Screws	4

Image:

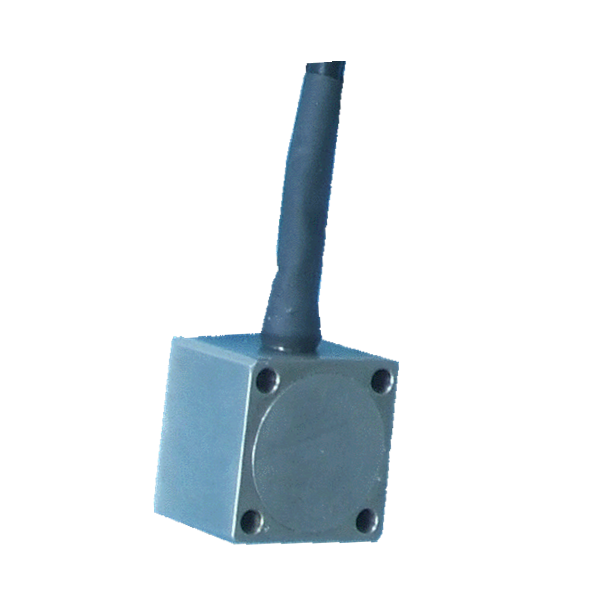

DC MEMS accelerometer transducer for vibration measurement

5HC3`IN8ZB41(6%(ZIJ8

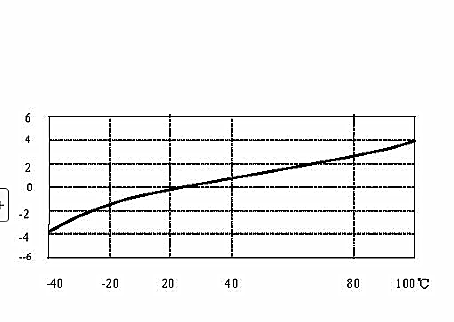

Typical Temperature Response

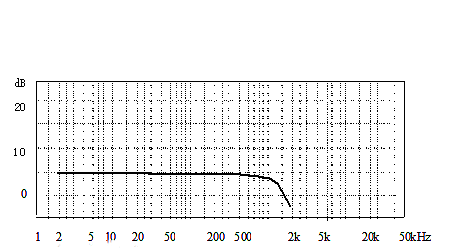

Typical Frequency Response

QBP)BVBNXLG)YYEG90K
