QDA60
QDA60

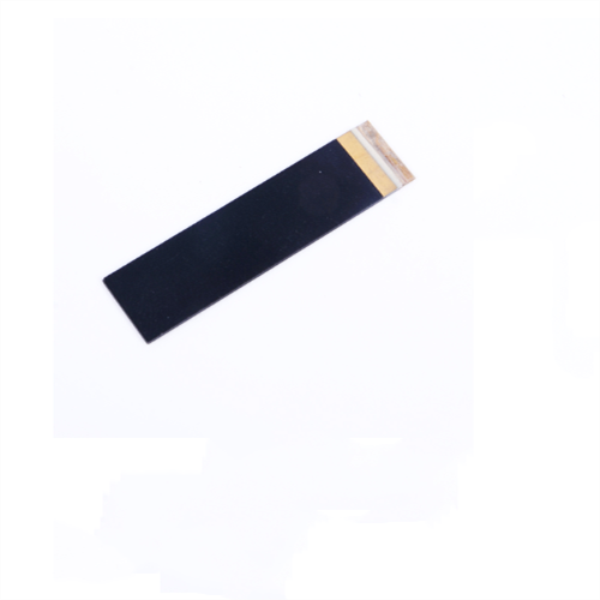

Piezoelectric Ceramic Actuator Bimorph Actuators for Vibration Sensor
Bimorph Actuators
Bimorph actuators are made from a sandwiched pair of piezoelectric elements which can expand and contract in length. When used as a sensor, bending causes one side to go into tension and the other into compression, and having a response frequency in the audible range permits the bimorph element to be used as a high sensitivity sound sensor. When used as an actuator, an electrical input results in a bending force which can be used as a switching element in a wide range of applications (optacon, dose pumps, valve control etc.)
AC
Character Curve：(Reference Sample：QDA60-20-0.6)

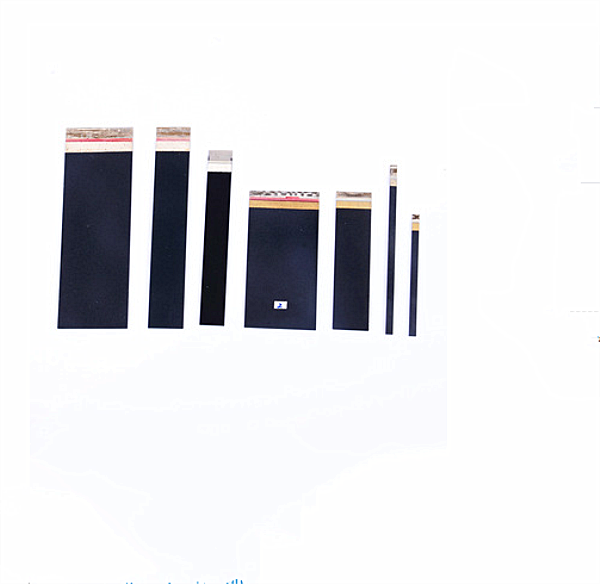

Normal Model:
Model | Length | Width | Thickness | Free length | Voltage | Displacement | Force |
QDA60-20-0.6 | 60 mm | 20 mm | 0.60 mm | 53 mm | 150 V DC | ≥2.6 mm | ≥0.40 N |
QDA60-10-0.6 | 60 mm | 10 mm | 0.60 mm | 53 mm | 150 V DC | ≥2.6 mm | ≥0.20 N |
QDA49-2.3-0.75 | 49 mm | 2.3 mm | 0.75 mm | 38 mm | 200 V DC | ≥1.5 mm | ≥0.10 N |
QDA45-10-0.6 | 45 mm | 10 mm | 0.60 mm | 38 mm | 150 V DC | ≥1.3 mm | ≥0.20 N |
QDA45-6.5-0.6 | 45 mm | 6.5 mm | 0.60 mm | 38 mm | 150 V DC | ≥1.3 mm | ≥0.15 N |
QDA40-20-0.6 | 40 mm | 20 mm | 0.60 mm | 33 mm | 150 V DC | ≥1.1 mm | ≥0.50 N |
QDA40-10-0.6 | 40 mm | 10 mm | 0.60 mm | 33 mm | 150 V DC | ≥1.1 mm | ≥0.18 N |
QDA35-2.5-0.6 | 35 mm | 2.5 mm | 0.60mm | 28 mm | 150 V DC | ≥0.7 mm | ≥0.11 N |
Note: Customized special dimensions.
