Piezo Plates Vs Piezo Rings: Which Shape Fits Your Transducer Design?

Selecting the wrong piezoelectric ceramic shape during transducer design causes more than mere fitment issues. It severely compromises acoustic coupling. It introduces significant thermal bottlenecks into the system. Ultimately, incorrect geometry leads to premature mechanical failure under continuous high-drive conditions. For engineers transitioning from early prototyping to full-scale production, the physical form factor matters immensely. The structural choice between rectangular ceramics and circular geometries directly dictates your assembly method. It establishes the allowable mechanical prestress limits. It fundamentally restricts the ultimate power-handling capability of the finished acoustic device. We built this comprehensive guide to provide an objective, engineering-focused framework. You will learn to properly evaluate piezo plates vs piezo rings for highly specific field applications. We will explore practical strategies to minimize assembly risks on the manufacturing floor. You will discover exactly how to align component geometry perfectly to your target performance outcomes.

Key Takeaways

• Mounting Mechanics Dictate Shape: Piezo rings are essential for bolt-clamped Langevin transducers requiring high mechanical preload, while piezo plates and blocks are optimal for direct surface bonding and array configurations.

• Power vs. Precision: Rings dominate high-power, low-frequency applications (welding, cleaning), whereas plates excel in high-frequency, high-sensitivity applications (medical imaging, non-destructive testing).

• Material Synergy: A shape is only as effective as its base formulation; matching the geometry with the correct PZT Material Parameter (Hard vs. Soft PZT) is critical for thermal management and longevity.

The Engineering Trade-off: Vibration Modes and Assembly Architecture

Every piezoelectric ceramic relies on geometry to dictate its dominant vibration mode. When you apply an alternating electric field across the electrodes, the material deforms. The physical dimensions of the component determine exactly how it responds to this field. A thin rectangular shape naturally favors high-frequency thickness-mode vibrations. Conversely, a wider, flatter shape might exhibit strong radial or planar modes. Understanding these core physics prevents overlapping resonance frequencies during operation.

Geometry significantly influences the entire assembly architecture. A solid rectangular or circular piece requires surface mounting. You must bond it directly to an acoustic matching layer or backing material. Introducing a central hole fundamentally changes this dynamic. The hole transforms the solid ceramic into a ring. This single physical alteration completely shifts the mechanical design possibilities. You can now pass a structural bolt directly through the center of the active element.

Engineers often assume their design will output a specific acoustic amplitude based purely on material datasheets. This is a dangerous assumption. Expected acoustic output assumes optimal mechanical coupling between the ceramic and the target medium. Mechanical coupling depends entirely on the chosen shape and your specific mounting technique. If you bond a component poorly, you lose acoustic energy to internal reflections. If you bolt a component unevenly, you introduce localized stress points. The physical architecture dictates the real-world efficiency of your device.

Vibration Mode Comparison Chart

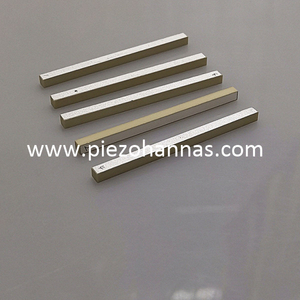

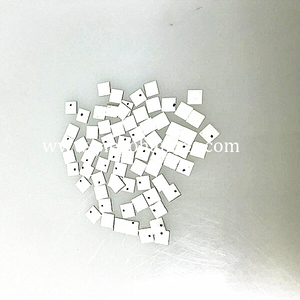

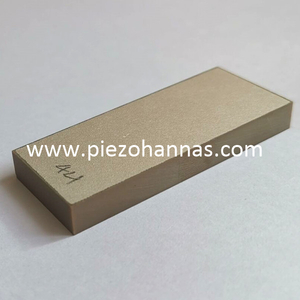

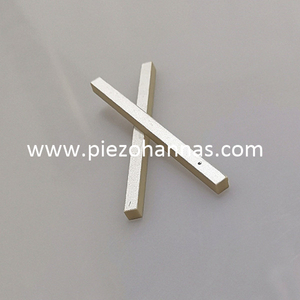

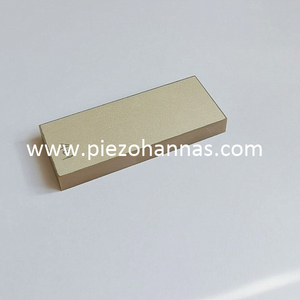

Evaluating Piezo Plates and Blocks for Array and Surface Applications

Engineers consistently select Piezo Plates and Blocks for applications demanding extreme precision. They represent the ideal success criteria for devices requiring high spatial resolution. They perform exceptionally well when transmitting broadband frequencies. They also excel at generating highly uniform planar waves across flat surfaces. You will typically find these shapes acting as sensitive receivers rather than brute-force actuators.

The primary use cases span several advanced industries. Medical ultrasound arrays rely almost exclusively on diced rectangular blocks. Precision flow measurement devices use thin plates to track fluid velocities accurately. Non-destructive testing (NDT) sensors incorporate plates to detect microscopic flaws inside solid metal pipelines or aerospace composites.

Plates offer distinct integration advantages during the manufacturing process. Manufacturers can easily dice a large solid block into complex 1-3 composite arrays using a precision diamond saw. This technique creates dozens of microscopic pillars. It isolates acoustic crosstalk between adjacent elements. Furthermore, operators can perform straightforward epoxy-bonding to attach these flat ceramics to acoustic matching layers. The flat, uninterrupted surface area ensures a consistent adhesive bond line.

However, implementing solid flat shapes introduces specific engineering risks. We must address these challenges early in the design phase.

• Vulnerability to tensile stress: Ceramics are naturally brittle. Under high-power continuous drive, the material expands and contracts violently. Without mechanical compression, the plate can easily fracture during the tensile phase of the oscillation.

• Epoxy delamination: You must bond the ceramic to metal or polymer surfaces. These distinct materials possess entirely different coefficients of thermal expansion. As the device heats up during use, the resulting shear stress can tear the epoxy bond apart.

• Lack of mechanical preload: You cannot effectively pre-stress a solid plate using a mechanical bolt. This severely limits its ability to handle high-voltage inputs.

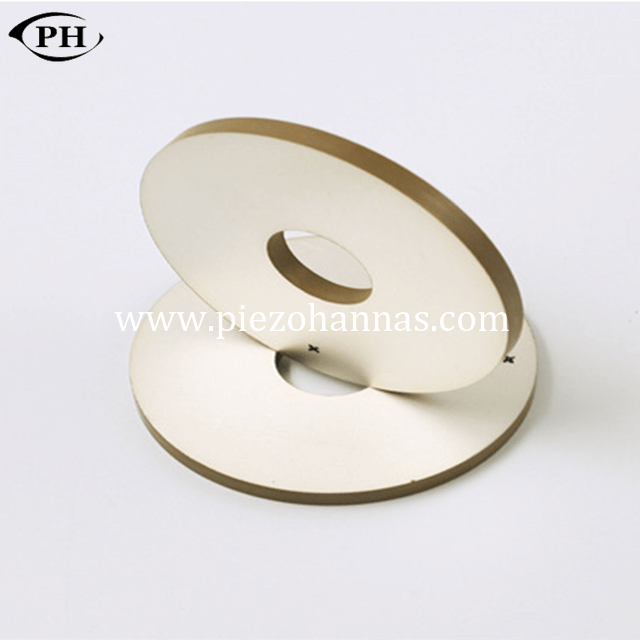

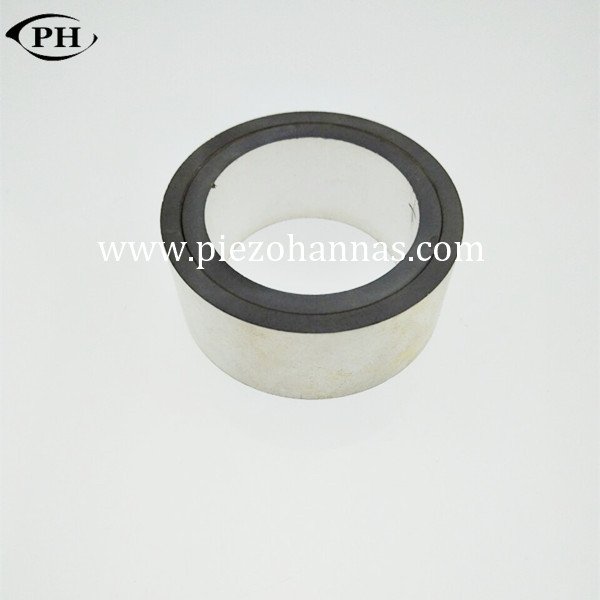

Evaluating Piezo Rings for High-Power, Pre-Stressed Transducers

Industrial applications demand raw mechanical power. Piezo Rings meet the success criteria for systems requiring massive acoustic amplitude. They endure continuous heavy-duty cycles without failing. You must use this specific geometry when integrating the ceramic with acoustic horns or metallic booster components. The shape facilitates energy transfer into secondary mechanical structures.

You will frequently encounter these ring configurations in demanding industrial environments. Ultrasonic welding systems use them to melt plastics together rapidly. Ultrasonic machining equipment relies on them to drill through hardened glass or ceramics. Industrial cleaning tanks utilize arrays of bolted ring transducers to create intense cavitation bubbles in liquid solvents.

The integration advantages of rings revolve entirely around the central hole. This opening allows you to pass a high-tensile steel or titanium center bolt through the stack of ceramics. By tightening this bolt, you apply massive compressive pre-loading to the system. Pre-stressing fundamentally alters the operational limits of the material. It prevents the ceramic from ever entering the tensile phase during high-amplitude oscillation. Because piezoelectric ceramics are incredibly strong under compression but weak under tension, this pre-load prevents catastrophic fractures.

Despite their ruggedness, bolted assemblies carry significant implementation risks. You must control your manufacturing tolerances meticulously.

• Uneven torque application: If you tighten the center bolt unevenly, you create localized pressure points on the ceramic surface. This uneven stress distribution easily causes micro-cracking. It ultimately leads to sudden catastrophic failure during operation.

• Strict machining tolerances: The mating metal masses must be perfectly flat. Both the front emitting block and the rear backing mass require exceptional surface finish. Any deviation from perfect parallelism prevents flush contact.

Aligning Shape with the Right PZT Material Parameter

Choosing a physical shape solves only half of the engineering equation. You must evaluate geometry concurrently with your material selection. A transducer shape is practically useless if formulated from the wrong powder compound. Identifying the correct PZT Material Parameter ensures long-term operational stability.

Soft PZT formulations, such as the industry standard PZT-5, prioritize sensitivity over raw strength. We strongly recommend pairing soft materials with plates and solid blocks. Soft PZT offers exceptionally high coupling coefficients. Parameters like the longitudinal coupling factor ($k_{33}$) and the piezoelectric strain constant ($d_{33}$) remain incredibly high. This makes soft formulations ideal for listening devices, sensors, and receivers. However, soft PZT suffers from high internal dielectric losses. It is highly prone to dielectric heating under continuous high-drive conditions. Therefore, soft PZT remains entirely unsuitable for most bolted ring assemblies used in power ultrasonics.

Hard PZT formulations, including PZT-4 and PZT-8, serve as the definitive industry standard for power rings. Engineers formulate these materials specifically to handle intense electrical and mechanical stress. They feature an exceptionally low mechanical quality factor loss. We measure this efficiency using the Mechanical Quality Factor ($Q_m$). Hard PZT generates very little internal heat during rapid oscillation. Furthermore, it boasts high coercive field limits. Hard materials can withstand the immense mechanical drive and compressive forces required in Langevin transducers without spontaneously depolarizing.

Material Formulation vs. Shape Matrix

Shortlisting Logic: How to Finalize Your Component Specification

Moving from a theoretical concept to a locked CAD assembly requires a methodical approach. We recommend following a structured shortlisting logic. This prevents costly redesigns late in the development cycle. Follow these four crucial steps to finalize your exact component specifications.

1. Define the Power Requirement: You must determine the primary function of your device first. Is the transducer acting primarily as a high-power actuator? If yes, default immediately to rings. Is it functioning as a sensitive receiver or a low-power acoustic emitter? If yes, default to solid plates.

2. Assess Thermal and Stress Management: Look closely at your physical housing. Can your design actually accommodate a central steel bolt for mechanical preload? If space constraints prevent a bolted assembly, you must manage thermal dissipation differently. You will need to calculate exactly how your bonded plate design will handle tensile stress without fracturing.

3. Review Manufacturing Tolerances: Evaluate the true cost-to-scale. Rings demand exceptionally tight flatness and parallelism tolerances across all mating metal components. If your machine shop cannot hold these precise tolerances consistently, your bolted assemblies will suffer from localized stress points. Calculate these machining costs before finalizing the design.

4. Prototype Sourcing: Decide how you will acquire test units. Requesting custom dimensions for outer diameter, inner diameter, and thickness provides perfect fitment. However, utilizing off-the-shelf standard sizes significantly accelerates your proof-of-concept phase. Test standard geometries first to validate your underlying acoustic math.

Conclusion

The decision between different piezoelectric shapes rarely remains ambiguous once you understand the underlying physics. It relies heavily on the fundamental mechanics of your intended application. You must base your selection strictly on required power output, dominant vibration mode, and your specific manufacturing assembly method. Form factor dictates function.

We recommend defaulting to solid plates and blocks when designing equipment for sensing, medical imaging, and direct-bond applications. You should actively specify ring geometries when building rugged Langevin transducers. High-amplitude industrial applications require strict mechanical pre-loading to survive operational stress.

Before locking your final CAD assembly, engage directly with your component manufacturer. Consult closely with a piezoelectric specialist to align your chosen shape with specific custom dimensions. Discuss optimal electrode configurations for your soldering process. Always verify your selected PZT powder formulations to guarantee long-term field reliability.

FAQ

Q: Can I use a piezo plate for a high-power ultrasonic cleaner instead of a ring?

A: While possible for very low-power or low-profile designs, it is highly discouraged for industrial use. Plates cannot be effectively pre-stressed with a center bolt, making them susceptible to tensile fracture under high continuous amplitude.

Q: How does the inner diameter (ID) of Piezo Rings affect transducer design?

A: The ID determines the maximum size of the pre-stress bolt. A larger bolt allows higher clamping force but reduces the active ceramic volume, slightly shifting the resonant frequency and capacitance.

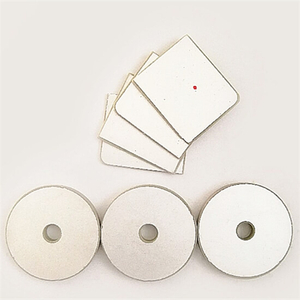

Q: What are the primary differences in electrode placement for Piezo Plates vs Piezo Rings?

A: Both typically feature fired silver or nickel electrodes on their flat faces (thickness mode). However, plates can be more easily customized with wrap-around electrodes for surface-mount (SMD) integration, whereas rings rely on metal ring-shims inserted between the ceramics during the bolting process.

Q: Which PZT material parameter is most critical when specifying piezo rings?

A: Mechanical Quality Factor ($Q_m$) and dielectric dissipation factor. High $Q_m$ (found in Hard PZTs) is crucial for rings to minimize internal heat generation during high-power, continuous operation.
