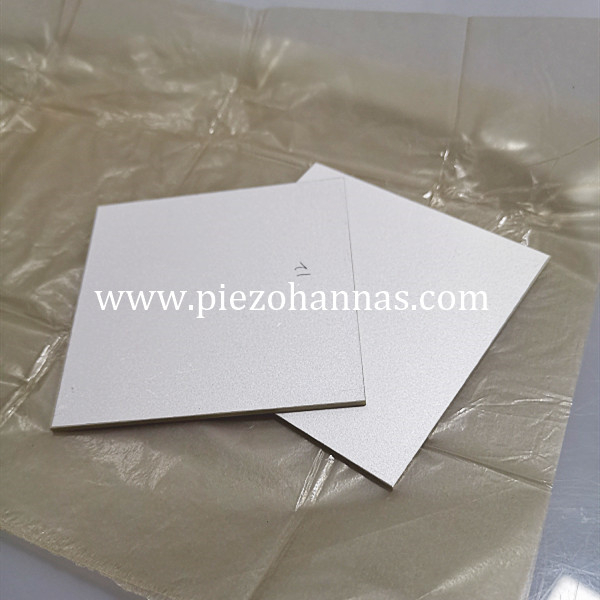

Pzt5a Material Piezoelectric Ceramics Plates for Transducer

- Piezo Material: PZT5A
- Dimensions:80*80*2mm
- Fs(Hz):21264
-Fp(Hz):25080
-Kp:0.664
-C:(pf) 51100
- Applications:transducer

Quantity:
  • PS1000K0110
  • Piezohannas
  • PS1000K0110

                   Pzt5a Material Piezoelectric Ceramics Plates for Transducer


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.


Pzt5a Material Piezoelectric Ceramics Plates for Transducer


- Piezo Material: PZT5A
- Dimensions:80*80*2mm
- Fs(Hz):21264
-Fp(Hz):25080
-Kp:0.664
-C:(pf) 51100
- Applications:transducer


ApplicationHigh Frequency Wave Filter, Resonator, Frequency Discriminator, Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, Energy/Electricity harvesting, compression sensor and others...



The range of Piezoceramic Rectangle / Square:


Length: 3mm-176mm
Width: 1mm-120mm
Height: 0.1mm-30mm


"Soft" PZT materials:


"Soft" PZT materials

The type of soft material

Properties



PSnN-5

PLiS-51

PZT-51

PZT-52

PZT-53

PZT-5H

PZT-5X

Dielectric Constant

ɛTr3


1600

2000

2200

2400

2600

3200

4500

Coupling factor

KP


0.6

0.62

0.62

0.63

0.64

0.68

0.7


K31


0.35

0.35

0.35

0.35

0.36

0.38

0.4


K33


0.68

0.7

0.68

0.7

0.7

0.76

0.77


Kt


0.5

0.52

0.5

0.5

0.5

0.52

0.53

Piezoelectric coefficient

d31

10-12m/v

-170

-197

-186

-204

-227

-275

-300


d33

10-12m/v

400

450

500

520

550

620

750


g31

10-3vm/n

-12

-11.1

-9.6

-9.8

-9.9

-9.7

-7.5


g33

10-3vm/n

28

25.4

25.6

24.5

23.9

22

18.8

Frequency coefficients

Np


2000

1920

1980

1980

1960

1900

1960


N1


1466

1407

1451

1451

1437

1393

1437


N3


1825

1925

1900

1900

1755

1550

1800


Nt


2100

2100

2150

2150

2150

2100

2200

Elastic compliance coefficient

Se11

10-12m2/n

16.6

18

16.7

17

17.4

18

19

Machanical quality factor

Qm


85

80

80

75

75

70

65











Dielectric loss factor

Tg δ

%

2

2

2

2

2

2

2

Density

ρ

g/cm3

7.5

7.5

7.6

7.6

7.6

7.5

7.5

Curie Temperature

Tc

°C

350

345

270

270

270

230

165

Young's modulus

YE11

<109N/m2

60

56

60

59

57.5

56

53

Poison Ratio



0.36

0.36

0.36

0.36

0.36

0.36

0.39




Applications of Piezoelectric Ceramics:



ultrasonic flow meters

hydrophones

accelerometers

piezo transducer vibration

atomizer transducer

matter dispersion

impact-type gas ignitors

precise movement control

pressure sensors

accelerometers

impact-type gas ignitors

precise movement control

microphones

musical pick-ups

diagnostic medical ultrasound

sound making

level sensors

ultrasonic atomizers

sonar transducer

ultrasonic micro-bonding apparatus

wall thickness sensor

underwater echo sounders

high frequency transducers

high stress pressure ensors

squeeze-type gas

ignitors high power actuators

vibratory motors

transformers

ultrasonic welding

ultrasonic surgery

material stress sensor

piezo electricity harvesting

biomedical probe

piezo electricity harvesting

fish finder transducer

compression sensor

piezo expansion sensor

beauty transducer

Ultrasonic mixing

calculators,

telephones

car alarm sensor

embryo monitor

heart reflectoscope reflector

pedometer

ultrasonic medical

ultrasonic cleaning

sonochemistry
