PH262a
Piezohannas
PH262a

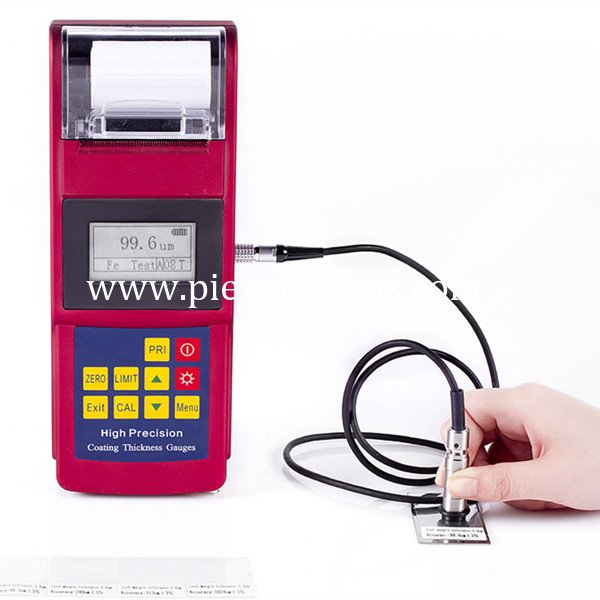

Magnetic Induction Coating Thickness Measurement Gauge with Printer
Function & Feature:
High stability and precision.
Software for PC connection and data transmission, analysis, and printing measurement reports.
With high-speed thermal printer. Width of printer paper: 56.5±0.5mm.
Rechargeable Li-ion battery, available for 10 hours working continuously.
Measuring Materials:
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Technical Specification:
Model | PH262a |
Measuring principle | Magnetic induction (Fe ) or Eddy current ( NFe) |
Measuring range (µm) | 0~1250μm |
Accuracy | ±[（1%)H+1]μm H refers to the thickness of testing piece |
Minimum resolution (µm) | 0.1μm |
Min curvature of the min area (mm) | Convex1.5 Concave9 |
Diameter of the min area (mm) | Φ7 |
Critical thickness of substrate (mm) | 0.5 |
Operating temperature | 0℃~40℃ |
Magnetic field | No strong magnetic field environment |
Memory | 500 groups measured data |
Dimensions | 230×86×46mm |
Weight | 400g |
Printer | Build-in High-speed Thermal Printer |
Power supply | Rechargeable Li-ion battery |
Standard configuration | Main unit,5 specimens (48.5mm、99.8mm、249mm、513mm 1024mm),Charger, paper for printer, Fe or NFe probe & substrate |
Optional Accessories | Probes，Specimens，Paper for printer |

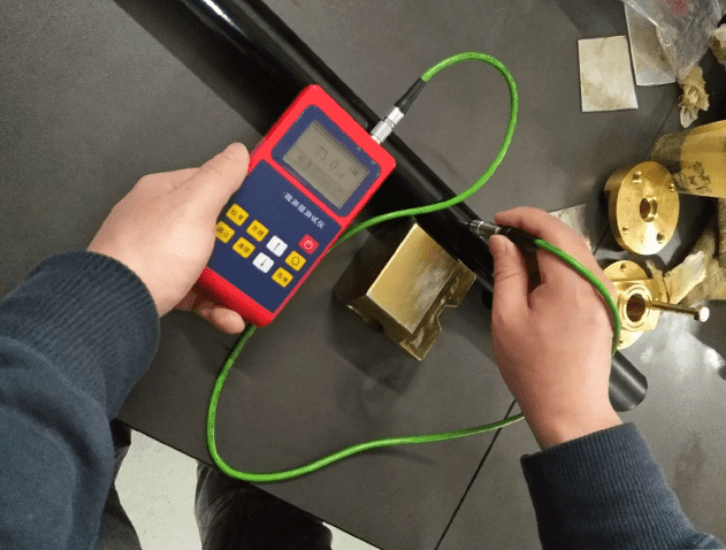

Application Image:
