HS/T250
Piezohannas

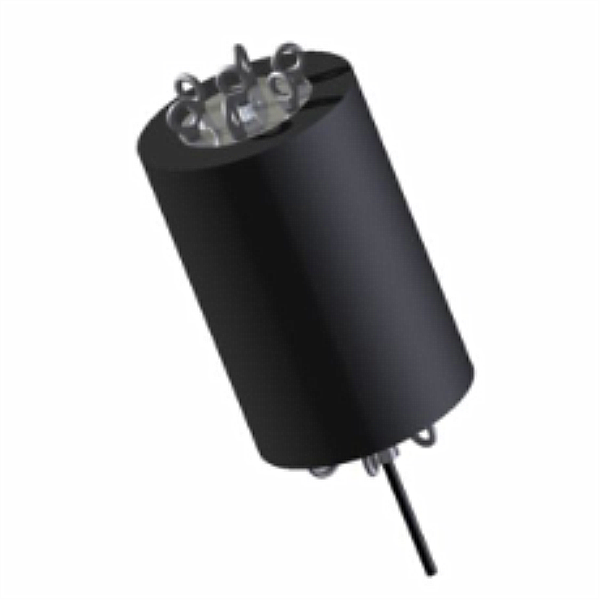

HS/T250
Low Frequency High Power Underwater Acoustic Transducer transmitting Transducer
Technical Parameters：
Model | HS/T250 |
|
resonant frequency | 250Hz±10% | |
Working Band | ≥45Hz | |
transmitting voltage response | ≥116 dB | |
Static Capacitance | 110000 pF | |
Directivity | Horizontal directivity | |
Sound Source Level (SL) | ≥175 dB | |
Working depth | 120m | |
Cable Specification | Φ11.2mm double core shielded cable | |
Weight | 18.4kg | |
| ||
Application:
Underwater Acoustics Research
Underwater Communication System
Acoustic Field Calibration
Military and Scientific Applications

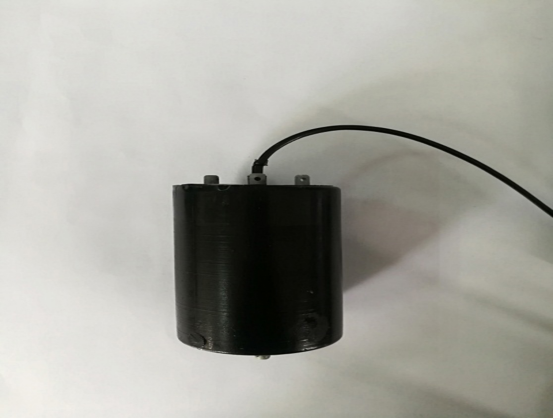

Application Case of Underwater Acoustic Transducer
According to customer’ needs, we can design and produce piezoelectric ultrasonic transducers, underwater acoustic transducer ,ultrasonic probes and sensors of various frequencies with stable performance and high quality.

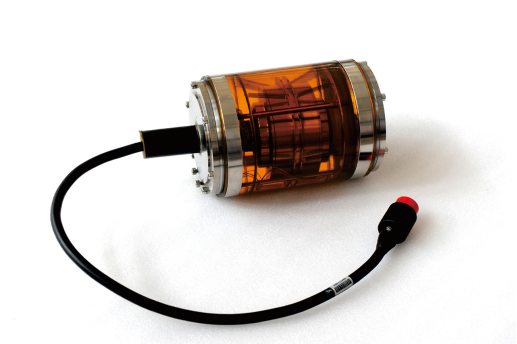

2. Calibration of Vector Hydrophones in Deep Water ,The maximum working depth can reach 3000m, which can be used for oil-filled linear array elements

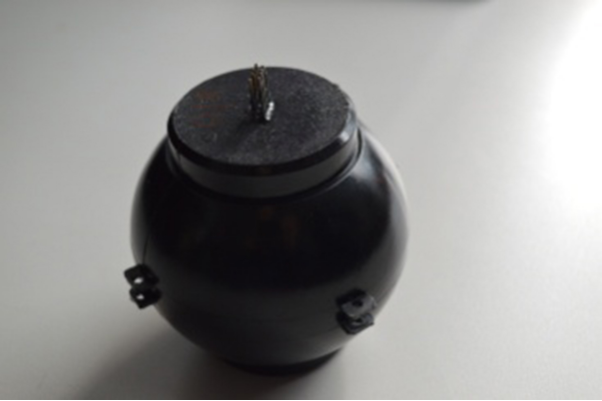

3. The highest emission response of the stacked spherical acoustic transducer can reach 156dB, and the highest sound source level can reach 202dB, which is more than 6dB higher than ordinary spherical transducers of the same size.

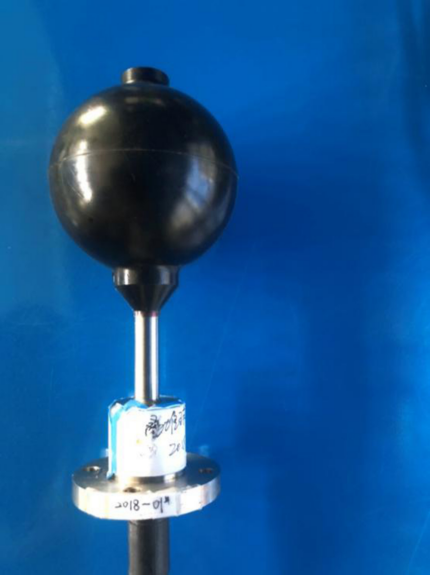

4.single-crystal vector hydrophone transducer
Compared with piezoelectric ceramic transducers, the size of PIN-PMN-PT single crystal transmitting transducer is reduced by more than 1/3, the transmitting voltage response level is 2~10dB higher, the impedance bandwidth is about twice higher, and the -3dB bandwidth is about two times higher. Times; the receiving sensitivity is 3~5dB higher. The single crystal vector hydrophone has low motion self-noise, and the sensitivity is 4~6dB higher than the piezoelectric vector hydrophone of the same size.

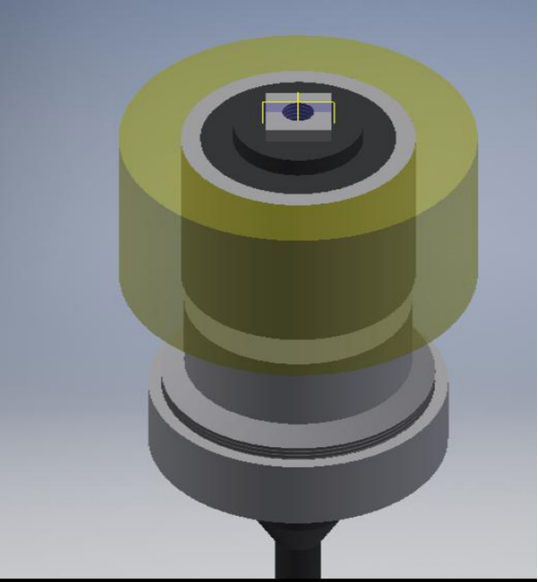

5.Fixed installation vector hydrophone
Using the center column as the fixed base, the ceramic shearing working mode, the working frequency band is 100-5000Hz, the installation is simple, the performance is stable, and it can replace most vector hydrophones installed on various platforms.

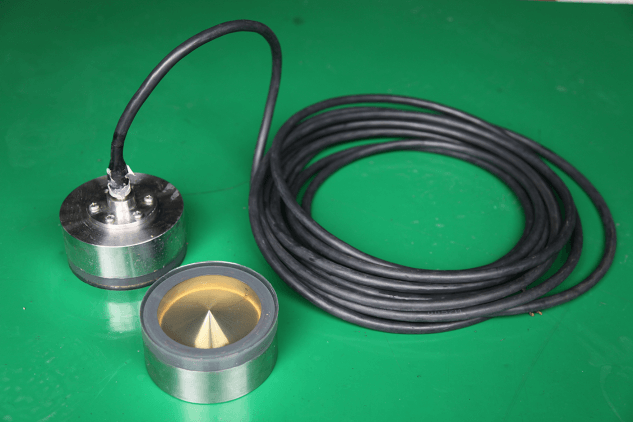

The cone-shaped reflector is used to reflect the circumferentially radiated sound waves of the toroidal transducer to the end surface to work, and relatively stable acoustic radiation of the beam can be realized on the end surface.

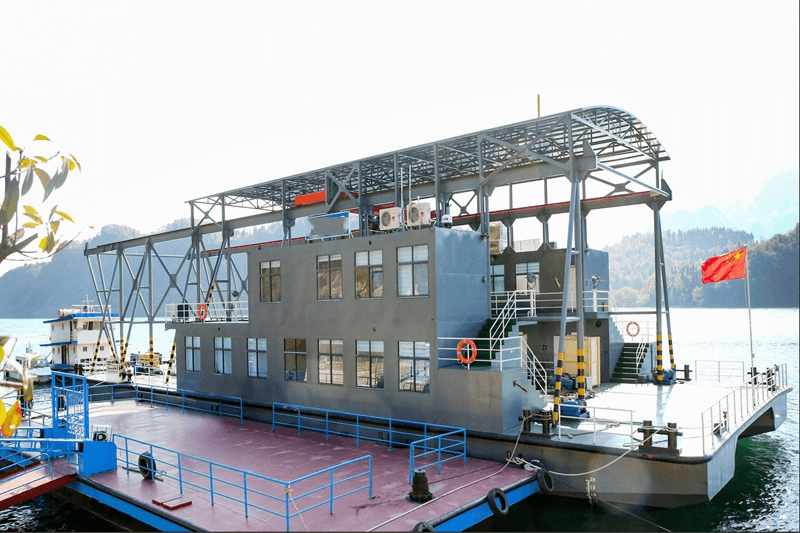

Underwater Acoustic Measurement Test:

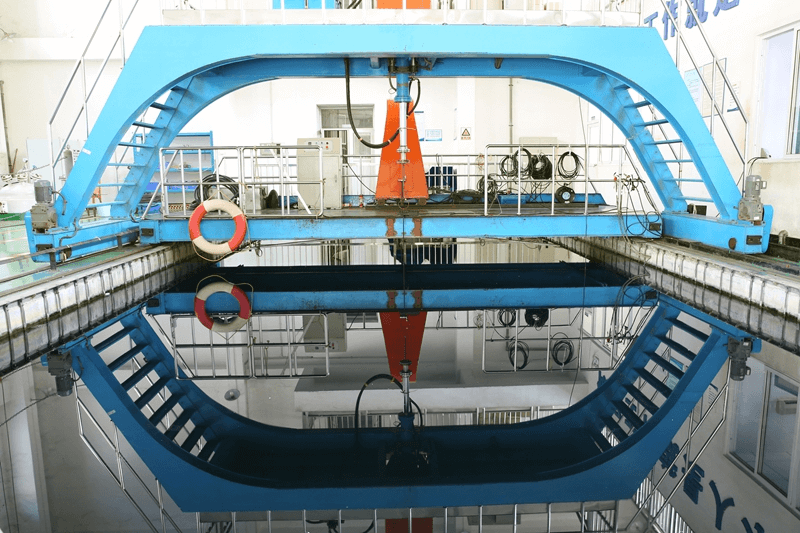

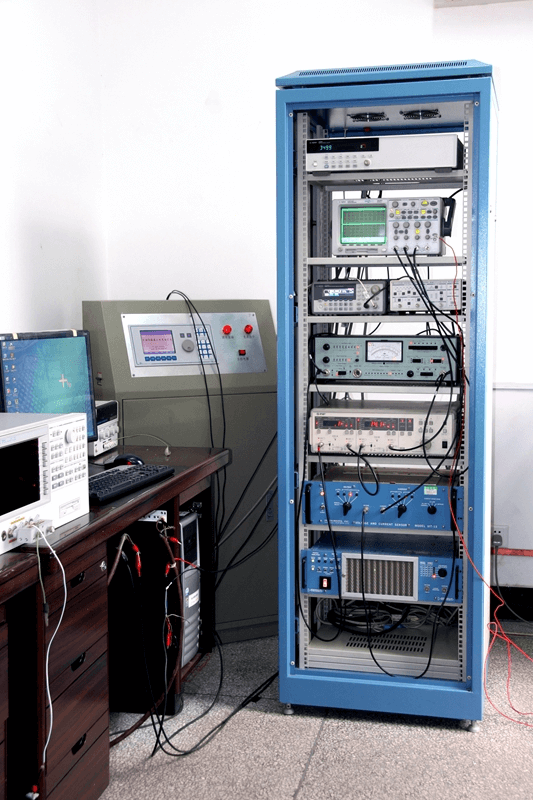

The underwater acoustic measurement contains 5 sets of test devices, including automatic acoustic measurement system, hydrophone low-frequency calibration device, hydrophone acceleration sensitivity measurement system, hydroacoustic material pulse tube measurement device, and test station test system, which are equipped to measure various transducers. The relevant parameters of the sound element and the acoustic matrix, as well as the reflection and sound transmission performance of underwater acoustic materials and components, testing standards GB/T 7965-2002, GB/T16165-1996, GB/T7967-2002, GJB275-1987, GB /T14369-2011, Q/715 J 66-2011, etc. The measuring frequency range is 20Hz to 500KHz. Test Station can measure the underwater acoustic performance of large transducers and acoustic arrays.
