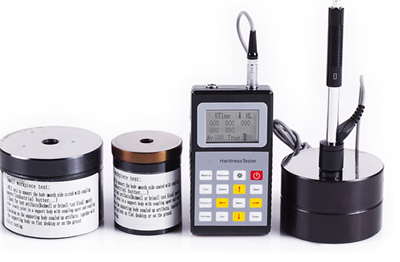

PH110a/PH120b
Piezohannas
PH110a/PH120b
Hardness Meter Manufacturers
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
![RW_0D_(CV8_LT3%]M$2Z{@0.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ikBqnKjlRikSrjmqkoio/RW_0D_-CV8.png "RW_0D_(CV8_LT3%]M$2Z{@0.png") hardness tester |  ultrasonic pencil hardness tester |  hardness meter |
Features:
Automatically identify 7 types of Impact devices for special application
Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
Direct calibration on HL,HRC,HB.
Test at any angle, even upside down
Large LCD screen with back-light, showing all functions and parameters
Upper and lower limit and sound alarm
Conversion to tensile strength (U.T.S)
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass),an alloy of copper and tin, copper (bronze), forged steel.
Technical Specification:
Model | PH110a | PH120b |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB | |
Hardness parameter | HL, HRC,HRB, HS,HB,HV | |
Accuracy | ±6HLD/ ±1.5HRC | |
Memory | 350 groups | |
PC Connection | No | Available |
Battery | 2 AAA | |
Operating Temperature | -20℃~+60℃ | |
Dimensions | 129×68×25mm | |
Impact Devices | Fixed D | D,DC,DL,D+15,G,C,E |
Weight | 230g | 240g |
Standard Delivery | Main unit,Impact Device type D,Operation manual, Small supporting ring,Cleaning brush, Calibration block,Certificate. | |
Optional Accessories | optional Impact Devices(only for Leeb120), Shaped support ring | |
