PHZ0028120
Piezohannas
PHZ0028120

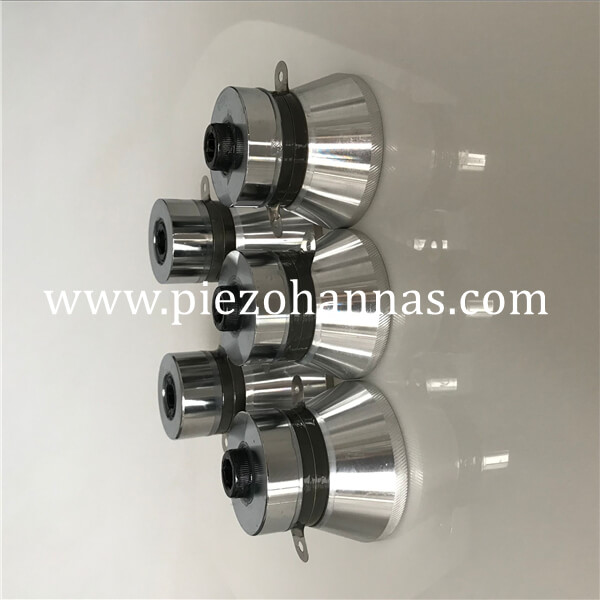

High Power 28KHz 120W Piezoelectric Ultrasonic Cleaning Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 industrial ultra bath transducer |  ultrasonic cleaning trasducer |
immersible cleaning transducer |
1.Specifications :
Type | PHZ0028120- PZT-4 |
Frequency | 28KHz ± 1 KHz |
Power | 120w |
Capacity | 7800pf (pzt4) |
Radiating surface | 68mm |
Resonance Resistance | 10-20Ω |
Piezoceramics size | 50*17*5 |
Length | 66mm |
Power Supply | Input: 100V~130V or 220V~240V AC |
Weight | 730g/pcs |
Here are some regular sizes for piezoelectric ceramic transducers for cleaning.
Dimension(mm) | Frequency | Capacitance | Impedance(Ω) | Insulation Resistance(MΩ) | Power | |
PH002550 | 25*50 | 40±1 | 4000±10% | ≤20 | 2000 | 30 |
PH003033 | 30*33 | 200±3 | 2400±10% | ≤20 | 2000 | 30 |
PH003840 | 38*40 | 50±1 | 3400±10% | ≤20 | 2000 | 40 |
PH003840-1 | 38*40 | 170±3 | 3400±10% | ≤25 | 2000 | 40 |
PH004054 | 40*54.5 | 4000 | 124.0±1.0 | ≤20 | ≥100 | 80 |
PH004054 | 40*54 | 130±2 | 4800±10% | ≤20 | 2000 | 60 |
PH004056 | 40*56 | 80±3 | 4800±15% | ≤20 | 2000 | 60 |
PHZ003528 | 45*80 | 28±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 3800±10% | ≤20 | 2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 2900±10% | ≤20 | 2000 | 50 |
PH004580 | 45*80 | 28±1 | 4200±10% | ≤25 | 2000 | 50 |
PH004850 | 48*50 | 100±2 | 4800±15% | ≤20 | 2000 | 60 |
PHZ004528 | 48*50 | 40±1 | 3400±10% | ≤20 | ≥2000 | 60 |
PHZ003540 | 45*54 | 40±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH005058 | 50*58 | 68±1 | 5600±10% | ≤20 | 2000 | 60 |
PH005553 | 55*53 | 40±2 | 5000±15% | ≤20 | 2000 | 100 |
PH005568 | 55*68 | 28±1 | 2900±10% | ≤25 | 2000 | 50 |
PH005850 | 58*50 | 39±1 | 8500±10% | ≤20 | 2000 | 120 |
PHZ003825 | 59*72 | 25±1 | 5500±10% | ≤25 | ≥2000 | 60 |
PHZ003828 | 59*67 | 28±1 | 4800±10% | ≤20 | ≥2000 | 60 |
PH005968 | 59*68 | 28±1 | 3200±10% | ≤20 | ≥2000 | 60 |
PHZ003868 | 48*60 | 68±1 | 4800±10% | ≤20 | ≥2000 | 50 |
PHZ004533 | 45*82 | 33±1 | 7000±10% | ≤20 | ≥2000 | 80 |
PH006470 | 64*70 | 28/40±0.5 | 4500±15% | ≤20 | 2000 | 60 |
PH006475 | 64*75 | 33±2 | 6500±10% | ≤20 | 2000 | 60 |
PH006574 | 65*74 | 24.8±0.3 | 4000 | ≤25 | ≥100 | 60 |
PH006767 | 67*67 | 27.8±0.3 | 5300 | ≤25 | ≥100 | 90 |
PH006768 | 67*68 | 28±1 | 6500±10% | ≤20 | 2000 | 80 |
PH006768-1 | 67*68 | 28±1 | 5100±7% | ≤20 | 2000 | 80 |
PHZ005028 | 67*70 | 28±1 | 8200±10% | ≤20 | ≥2000 | 100 |
PH006770 | 67*70 | 28±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006777 | 67*77 | 25±1 | 9000±10% | ≤20 | 2000 | 100 |
PH006777-1 | 67*77 | 25±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006774 | 67*74 | 25±0.3 | 6430 | ≤30 | ≥100 | 110 |
PH006792 | 67*92 | 20±2 | 6500±10% | ≤20 | 2000 | 100 |
If these transducer cannot meet your requirements,please tell us your size,our factory can accept the customization.
Ultrasonic Cleaning
Ultrasonic cleaners are used to clean many different types of objects, including jewelry, lenses and other optical parts, watches, dental and surgical instruments, tools, coins, fountain pens, golf clubs, fishing reels, window blinds, firearms, car fuel injectors, musical instruments, gramophone records, industrial parts and electronic equipment. They are used in many jewelry workshops, watchmakers' establishments, and electronic repair workshops.
Ultrasonic cleaning is a process that uses ultrasound (usually from 20–40 kHz) to agitate a fluid. The ultrasound can be used with just water, but use of a solvent appropriate for the item to be cleaned and the type of soiling present enhances the effect. Cleaning normally lasts between three and six minutes, but can also exceed 20 minutes, depending on the object to be cleaned.
Application Image:
High Power 28KHz 120W Piezoelectric Ultrasonic Cleaning Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
industrial ultra bath transducer | ultrasonic cleaning trasducer |
immersible cleaning transducer |
1.Specifications :
Type | PHZ0028120- PZT-4 |
Frequency | 28KHz ± 1 KHz |
Power | 120w |
Capacity | 7800pf (pzt4) |
Radiating surface | 68mm |
Resonance Resistance | 10-20Ω |
Piezoceramics size | 50*17*5 |
Length | 66mm |
Power Supply | Input: 100V~130V or 220V~240V AC |
Weight | 730g/pcs |
Here are some regular sizes for piezoelectric ceramic transducers for cleaning.
Dimension(mm) | Frequency | Capacitance | Impedance(Ω) | Insulation Resistance(MΩ) | Power | |
PH002550 | 25*50 | 40±1 | 4000±10% | ≤20 | 2000 | 30 |
PH003033 | 30*33 | 200±3 | 2400±10% | ≤20 | 2000 | 30 |
PH003840 | 38*40 | 50±1 | 3400±10% | ≤20 | 2000 | 40 |
PH003840-1 | 38*40 | 170±3 | 3400±10% | ≤25 | 2000 | 40 |
PH004054 | 40*54.5 | 4000 | 124.0±1.0 | ≤20 | ≥100 | 80 |
PH004054 | 40*54 | 130±2 | 4800±10% | ≤20 | 2000 | 60 |
PH004056 | 40*56 | 80±3 | 4800±15% | ≤20 | 2000 | 60 |
PHZ003528 | 45*80 | 28±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 3800±10% | ≤20 | 2000 | 50 |
PH004550-1 | 45*50 | 40±1 | 2900±10% | ≤20 | 2000 | 50 |
PH004580 | 45*80 | 28±1 | 4200±10% | ≤25 | 2000 | 50 |
PH004850 | 48*50 | 100±2 | 4800±15% | ≤20 | 2000 | 60 |
PHZ004528 | 48*50 | 40±1 | 3400±10% | ≤20 | ≥2000 | 60 |
PHZ003540 | 45*54 | 40±1 | 3800±10% | ≤20 | ≥2000 | 50 |
PH005058 | 50*58 | 68±1 | 5600±10% | ≤20 | 2000 | 60 |
PH005553 | 55*53 | 40±2 | 5000±15% | ≤20 | 2000 | 100 |
PH005568 | 55*68 | 28±1 | 2900±10% | ≤25 | 2000 | 50 |
PH005850 | 58*50 | 39±1 | 8500±10% | ≤20 | 2000 | 120 |
PHZ003825 | 59*72 | 25±1 | 5500±10% | ≤25 | ≥2000 | 60 |
PHZ003828 | 59*67 | 28±1 | 4800±10% | ≤20 | ≥2000 | 60 |
PH005968 | 59*68 | 28±1 | 3200±10% | ≤20 | ≥2000 | 60 |
PHZ003868 | 48*60 | 68±1 | 4800±10% | ≤20 | ≥2000 | 50 |
PHZ004533 | 45*82 | 33±1 | 7000±10% | ≤20 | ≥2000 | 80 |
PH006470 | 64*70 | 28/40±0.5 | 4500±15% | ≤20 | 2000 | 60 |
PH006475 | 64*75 | 33±2 | 6500±10% | ≤20 | 2000 | 60 |
PH006574 | 65*74 | 24.8±0.3 | 4000 | ≤25 | ≥100 | 60 |
PH006767 | 67*67 | 27.8±0.3 | 5300 | ≤25 | ≥100 | 90 |
PH006768 | 67*68 | 28±1 | 6500±10% | ≤20 | 2000 | 80 |
PH006768-1 | 67*68 | 28±1 | 5100±7% | ≤20 | 2000 | 80 |
PHZ005028 | 67*70 | 28±1 | 8200±10% | ≤20 | ≥2000 | 100 |
PH006770 | 67*70 | 28±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006777 | 67*77 | 25±1 | 9000±10% | ≤20 | 2000 | 100 |
PH006777-1 | 67*77 | 25±1 | 6500±7% | ≤20 | 2000 | 100 |
PH006774 | 67*74 | 25±0.3 | 6430 | ≤30 | ≥100 | 110 |
PH006792 | 67*92 | 20±2 | 6500±10% | ≤20 | 2000 | 100 |
If these transducer cannot meet your requirements,please tell us your size,our factory can accept the customization.
Ultrasonic Cleaning
Ultrasonic cleaners are used to clean many different types of objects, including jewelry, lenses and other optical parts, watches, dental and surgical instruments, tools, coins, fountain pens, golf clubs, fishing reels, window blinds, firearms, car fuel injectors, musical instruments, gramophone records, industrial parts and electronic equipment. They are used in many jewelry workshops, watchmakers' establishments, and electronic repair workshops.
Ultrasonic cleaning is a process that uses ultrasound (usually from 20–40 kHz) to agitate a fluid. The ultrasound can be used with just water, but use of a solvent appropriate for the item to be cleaned and the type of soiling present enhances the effect. Cleaning normally lasts between three and six minutes, but can also exceed 20 minutes, depending on the object to be cleaned.
Application Image:
