PH-FN25
Piezohannas
PH-FN25

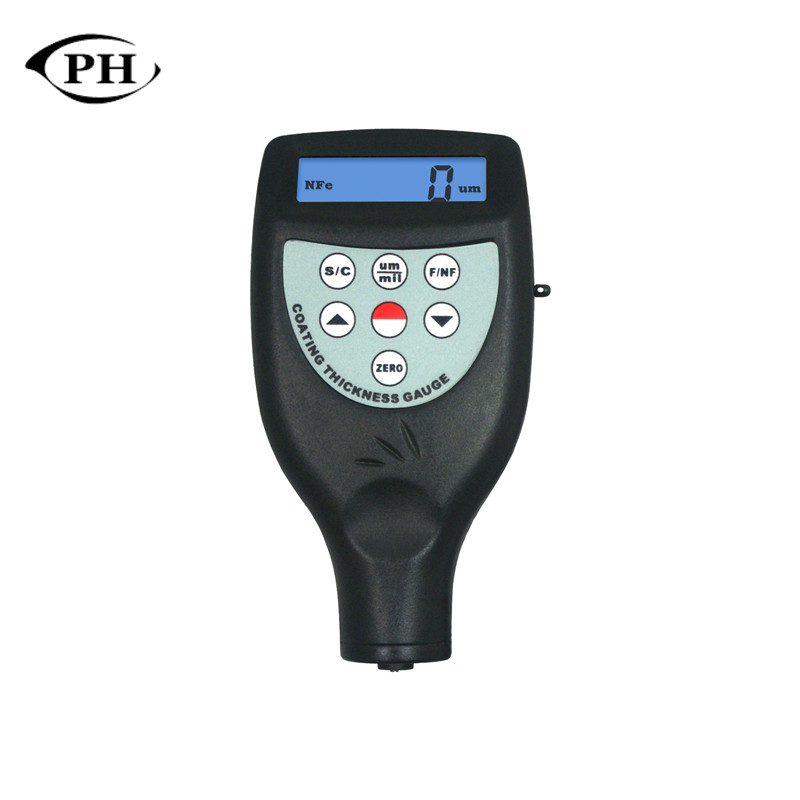

Cheap Powder Surface Coating Thickness Measurement Gauge
Specification:
Items | Technical Parameters |
Mode | PH-NF25 |
Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
Measuring Range | 0~1250 um / 0~50 mil
|
Resolution | 0.1 um / 1 um
|
Min. Radius Workpiece |
F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
|
Min. Measuring Area | 6 mm
|
Min. Sample Thickness | 0.3 mm
|
Accuracy | ± 1~3%n or ± 2.5 um |
Auto Power Off | |
Metric / Imperial | Convertible
|
Battery Indicator | Low Battery Indicator
|
Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH
|
Power Supply | 4 x 1.5 V AA (UM-3) Battery
|
Dimensions | 126 x 65 x 27 mm |
Weight | 81 g (Not Including Batteries) |
Applications：
Principles | Applications | Examples |
F Type | Measure the thickness of non-magnetic materials on magnetic materials | Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
NF Type | Measure the thickness of non-conductive coatings on non-magnetic metals | Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Features:
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Standard Accessories:
1. Main Unit
2. Calibration Base Set (F Type / NF Type) CTG-BS
3. Calibration Foils CTG-CF (1 set, 4 pieces)
4. Carrying Case
5. Operation Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
Application Image:
