Ultrasonic transducers play a pivotal role in numerous modern applications, ranging from medical diagnostics to industrial non-destructive testing. By converting electrical energy into mechanical vibrations and vice versa, they enable the detection and measurement of objects and environments through ultrasonic waves. Understanding the intricate ultrasonic transducers is essential for engineers and researchers aiming to innovate in fields such as material characterization, flow measurement, and flaw detection.
This article delves into the design and manufacturing of ultrasonic transducers, offering a comprehensive analysis of their theoretical foundations, design considerations, manufacturing processes, and performance characteristics. By exploring the complexities involved in creating efficient and reliable ultrasonic transducers, we aim to provide valuable insights for professionals seeking to enhance their understanding or develop advanced applications of this critical technology.
Ultrasonic transducers are devices that generate or receive ultrasonic waves, which are sound waves with frequencies above the audible range of human hearing (greater than 20 kHz). They are essential components in systems that use ultrasonic energy for sensing, measurement, or energy transfer. The core principle behind ultrasonic transducers is the piezoelectric effect, where certain materials generate an electric charge in response to applied mechanical stress and conversely deform when an electric field is applied.
The operation of ultrasonic transducers is rooted in the piezoelectric effect exhibited by materials such as quartz, lithium niobate, and various ceramics like PZT (lead zirconate titanate). When an alternating electrical voltage is applied to a piezoelectric material, it oscillates at the frequency of the voltage, producing ultrasonic waves. Conversely, when ultrasonic waves impinge upon the material, they induce a mechanical deformation that generates an electrical signal. This bidirectional capability allows ultrasonic transducers to function as both transmitters and receivers.
Understanding the electromechanical coupling in piezoelectric materials is crucial. The coupling coefficient, a parameter indicating the efficiency with which electrical energy is converted to mechanical energy (and vice versa), is a key performance metric. High coupling coefficients signify efficient transducers, which are vital in applications requiring precise measurements or high power outputs.
Ultrasonic transducers can be categorized based on their operational modes, primarily the 33 mode and the 31 mode, referring to the directions of electrical field application and mechanical stress in the piezoelectric material.
33 Mode Transducers: In this configuration, the electrical field and mechanical stress are applied along the same axis (the "3" axis), typically the polarization direction of the piezoelectric material. The material expands and contracts along this axis when energized. This mode is commonly used in power ultrasonic applications due to its high coupling coefficient and efficiency. Transducers operating in the 33 mode often consist of disk-shaped piezoelectric ceramics stacked together, enhancing the output amplitude and power handling capabilities.
31 Mode Transducers: Here, the electrical field is applied along one axis, while the mechanical stress occurs along a perpendicular axis. This mode is usually implemented using tubular or plate-like piezoelectric elements. While the 31 mode typically exhibits a lower coupling coefficient compared to the 33 mode, it is advantageous in specific applications where transducer geometry or specific directional sensitivities are required.
Designing an ultrasonic transducer involves a meticulous balance of multiple factors, each influencing the overall performance and suitability for the intended application. Key considerations include operating temperature, application requirements, environmental conditions, physical constraints, and the trade-offs between competing design goals.
The first step in the design process is to ascertain the temperature conditions the transducer will encounter throughout its operational life. Both the maximum transient temperatures and the prolonged operational temperatures must be considered. High temperatures can significantly affect the piezoelectric properties of the materials used, leading to changes in performance characteristics or even material degradation. Selecting piezoelectric materials with appropriate Curie temperatures (the temperature above which the material loses its piezoelectric properties) ensures reliable operation under the expected thermal conditions.
Materials like PZT-4 and PZT-8 ceramics are commonly used due to their high Curie temperatures and stable piezoelectric properties at elevated temperatures. For instance, PZT-4 has a Curie temperature around 330°C, while PZT-8 can reach up to 350°C. Operating well below these temperatures, typically not exceeding 50% of the Curie temperature, helps maintain the transducer's efficiency and longevity.
Understanding the specific application is crucial in defining the transducer's performance criteria. Whether the transducer is intended for flaw detection, flow measurement, medical imaging, or high-power ultrasonic cleaning, each application imposes unique requirements.
For flaw detection, transducers need high sensitivity and resolution to detect minute defects within materials. This necessitates a design that maximizes signal-to-noise ratio and provides a broad bandwidth. In contrast, applications like ultrasonic welding require transducers capable of delivering high power outputs to induce sufficient mechanical vibrations for material bonding. Here, durability and thermal management become paramount due to the high energy levels involved.
Defining whether the transducer will operate in a pitch-catch mode (using separate transmitting and receiving elements) or a pulse-echo mode (using the same element for both transmitting and receiving) influences the design. Pulse-echo applications benefit from transducers with short pulse durations and rapid damping to prevent signal overlap, whereas pitch-catch configurations can optimize elements separately for transmission and reception.

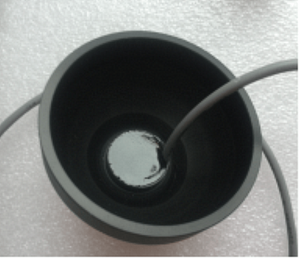

Transducers often operate in challenging environments, exposing them to high pressures, corrosive chemicals, or strong magnetic fields. Design considerations must include selecting housing materials and sealing methods to protect the internal components. For instance, stainless steel or titanium housings offer resistance to corrosion and can withstand high pressures, making them suitable for underwater applications or industrial process monitoring.
Magnetic field exposure, particularly relevant in medical applications like MRI compatibility, may necessitate the use of non-magnetic materials and careful shielding to prevent interference with transducer operation or imaging systems. Additionally, the potential for mechanical shock or vibration in industrial settings requires robust mechanical design to ensure transducer integrity and consistent performance.
Size and weight limitations are critical, especially in applications where space is restricted or where the transducer must be mobile or handheld. Miniaturization may involve using smaller piezoelectric elements, which can impact the transducer's output power and sensitivity. Innovative design techniques, such as stacking multiple thin piezoelectric layers or employing micromachining methods, can help mitigate these challenges while meeting the physical constraints.
Moreover, the geometry of the transducer face affects the beam profile and focus. Applications requiring precise targeting or imaging may utilize focused or concave transducer faces to concentrate ultrasonic energy at a specific point, enhancing resolution and signal strength. Conversely, a flat or convex face may be suitable for general-purpose applications or where a broader coverage area is desired.
Balancing competing design goals often requires iterative analysis and optimization. For instance, increasing the transducer's damping improves bandwidth but may reduce sensitivity and efficiency. Similarly, selecting a material with higher mechanical strength might introduce challenges with acoustic impedance matching, affecting transmission efficiency.
Computer-aided design tools and finite element analysis (FEA) are invaluable in simulating transducer performance under various scenarios, allowing designers to predict the effects of material choices, geometric configurations, and operating conditions. By evaluating these factors iteratively, designers can converge on an optimal solution that satisfies the critical requirements while acknowledging and mitigating compromises where necessary.
Manufacturing ultrasonic transducers involves precision fabrication and assembly processes to ensure that the transducer performs reliably and meets the specified design criteria. Key components include the piezoelectric ceramics, electrodes, front and back drivers, and the stack bolt used for applying prestress. Each component requires careful material selection and manufacturing techniques to achieve desired performance characteristics.
Piezoelectric ceramics are the heart of ultrasonic transducers, with materials like PZT-4 and PZT-8 being prevalent due to their high coupling coefficients and mechanical strength. The choice between "hard" and "soft" ceramics depends on the application; hard ceramics like PZT-8 are suited for high-power applications, offering better stability under high electric fields and mechanical stresses.
Manufacturing piezoelectric ceramics requires precise control over composition, sintering conditions, and poling processes to achieve the desired electrical and mechanical properties. Uniformity in the ceramic's microstructure ensures consistent performance across the transducer elements. Additionally, the dimensions of the ceramics must be controlled accurately, as variations can lead to discrepancies in resonant frequencies and overall transducer behavior.
Electrodes facilitate the application of electrical signals to the piezoelectric ceramics. Material selection for electrodes involves balancing electrical conductivity, mechanical compatibility, and resistance to environmental factors. Common materials include nickel, silver, and gold, which provide good conductivity and can form strong bonds with the ceramic surface.
The electrode's design must ensure uniform electric field distribution across the ceramic surface. Thin-film deposition techniques, such as sputtering or evaporation, create electrodes with precise thickness and adherence. In some designs, interdigitated electrode patterns are used to achieve specific electric field configurations, particularly in advanced or specialized transducers.
The front and back drivers mechanically couple to the piezoelectric ceramics, transmitting ultrasonic vibrations to the load or reflecting them back to enhance resonance. Material selection is critical; common choices include aluminum, titanium, and steel, each offering different acoustic impedance, density, and mechanical properties.
The front driver, or horn, often requires amplification of the ultrasonic displacement. Conical or exponential designs can increase amplitude while controlling stress concentrations. The back driver typically serves as a mass to reflect vibrations back into the piezoelectric stack, enhancing resonance. Precision machining of these components is essential to maintain surface flatness and parallelism, ensuring efficient energy transfer and minimal mechanical losses.
Applying a static compressive prestress to the piezoelectric stack is vital to prevent tensile stresses during operation, which could fracture the brittle ceramic materials. The stack bolt, often made of high-strength steel or titanium, compresses the assembly, maintaining mechanical integrity and optimizing performance.
The bolt's design must balance mechanical strength with acoustic properties. A central bolt with a reduced shank diameter can minimize its stiffness, improving electromechanical coupling by allowing the piezoelectric elements to expand and contract more freely. Threaded connections should be carefully machined to prevent stress concentrations and loss of preload over time.
Controlling the prestress level is critical; too little prestress may lead to mechanical separation under operation, while excessive prestress can degrade piezoelectric properties due to static compression effects. Finite element analysis aids in predicting the optimal prestress values, accounting for thermal expansion and dynamic loading conditions.
Evaluating the performance of ultrasonic transducers involves analyzing parameters such as power handling, frequency response, amplitude of vibration, and efficiency. These characteristics determine the suitability of a transducer for a specific application and influence the quality and reliability of its operation.
The maximum power output of an ultrasonic transducer is dictated by the piezoelectric material properties, mechanical design, and thermal management. High-power applications require transducers that can sustain significant electrical inputs without overheating or experiencing mechanical failure.
Thermal considerations are paramount since electrical losses in the piezoelectric material generate heat. Efficient heat dissipation mechanisms, such as conductive paths through the front and back drivers or active cooling systems, are essential to maintain operating temperatures within safe limits. The design must ensure that the temperature does not approach the material's Curie point or cause depoling, which would result in a loss of piezoelectric properties.
The resonant frequency of a transducer is determined by its mechanical dimensions and material properties. Precise control over these parameters is necessary to ensure the transducer operates at the desired frequency. Factors such as manufacturing tolerances, material property variations, and assembly stresses can affect the resonant frequency.
Broadband transducers require careful design to achieve a wide frequency response, which is beneficial in applications like imaging where resolution depends on bandwidth. Techniques include using backing materials to dampen the transducer or designing composite structures that support multiple resonant modes. However, increasing bandwidth often involves trade-offs with sensitivity and efficiency.
The amplitude of the ultrasonic vibrations affects the transducer's effectiveness in applications like welding or cleaning, where mechanical energy must be transferred to a medium. Maximizing amplitude involves optimizing the mechanical amplification provided by the front driver and ensuring minimal energy loss within the transducer assembly.
Mechanical losses can occur due to material damping, imperfect mechanical connections, or undesirable resonant modes. Rigid construction, high-quality materials, and precision assembly reduce these losses. Moreover, finite element modeling helps identify and mitigate modes that could interfere with desired vibration patterns, enhancing amplitude consistency and transducer reliability.
Understanding potential failure modes in ultrasonic transducers is essential for improving design robustness and extending operational life. Common issues include piezoceramic overheating, electrical arcing, and mechanical failures such as stack bolt fatigue or ceramic cracking.
Overheating is a primary concern, as excessive temperatures can lead to depoling or physical damage to the piezoelectric ceramics. Causes include high electrical input power, insufficient cooling, or operation at frequencies deviating from the resonant frequency. Implementing effective thermal management strategies, such as heat sinks or active cooling, mitigates this risk.
Monitoring systems that track temperature and adjust operating parameters in real-time can also prevent overheating. Material selection plays a role; using ceramics with higher Curie temperatures provides a greater safety margin. However, careful design is necessary to avoid sacrificing other performance aspects like coupling efficiency or mechanical strength.
Electrical arcing between the electrodes or from the electrodes to the housing can damage the transducer and pose safety hazards. Arcing typically results from high voltages, insufficient insulation, or the presence of conductive contaminants like moisture or dust. Ensuring proper insulation of electrical connections and the use of high-quality dielectric materials prevent arcing.
Sealing the transducer assembly against environmental contaminants and employing potting compounds or conformal coatings over sensitive areas adds protection. Additionally, designing the transducer to operate within safe voltage levels relative to the dielectric strength of materials used minimizes the likelihood of arcing events.
Mechanical failure of the stack bolt can occur due to fatigue from cyclic loading, excessive tensile stress, or stress concentrations at thread roots. Such failures can lead to loss of prestress, misalignment of the piezoelectric elements, or catastrophic disassembly. Using high-strength, fatigue-resistant materials for the bolt and optimizing the thread design reduces these risks.
Avoiding sharp transitions and ensuring smooth surfaces in the bolt design prevent stress risers. Preload control during assembly is vital; applying the correct torque ensures sufficient prestress without overloading the bolt. Regular inspection and maintenance schedules can detect signs of fatigue before failure occurs, enabling proactive replacement or repair.
The design and manufacturing of ultrasonic transducers are complex processes that require a thorough understanding of piezoelectric materials, mechanical engineering, and the specific requirements of the intended application. By carefully considering factors like operating temperature, application needs, environmental conditions, and physical constraints, engineers can create transducers that deliver optimal performance and reliability.
Advancements in material science and manufacturing techniques continue to enhance the capabilities of ultrasonic transducers, opening up new possibilities in medical diagnostics, industrial automation, and beyond. Ongoing research and development efforts focus on improving efficiency, expanding frequency ranges, and reducing the size and cost of transducers, ensuring they remain at the forefront of technological innovation.
Ultrasonic transducers are widely used in various fields, including medical imaging (such as ultrasound scans), non-destructive testing for material defects, ultrasonic cleaning, distance measurement, and flow metering. They are also essential in industrial applications like welding and cutting, where high-frequency vibrations facilitate material processing.
Operating temperature significantly impacts the piezoelectric properties of the transducer's materials. High temperatures can lead to decreases in coupling coefficients and mechanical strength, potentially causing depoling of the piezoelectric ceramics. Designers must select materials with appropriate Curie temperatures and implement thermal management strategies to maintain performance and prevent damage.
The choice of piezoelectric materials depends on factors such as required coupling efficiency, mechanical strength, operating frequency, temperature conditions, and electrical properties. Materials like PZT-4 and PZT-8 are common due to their high performance in power applications. Material selection balances the transducer's sensitivity, power handling capabilities, and operational stability.
Prestress is applied to prevent tensile stresses in the brittle piezoelectric ceramics during operation, which could cause cracking or failure. Compressive prestress ensures that even under dynamic loading, the ceramics remain under compression, enhancing mechanical integrity and transducer longevity. The prestress level must be carefully controlled to avoid degrading the piezoelectric properties.
Environmental conditions such as exposure to chemicals, high pressure, temperature extremes, or magnetic fields necessitate specific design considerations. Material choices for housings and components must resist corrosion, withstand pressures, and maintain performance under varying temperatures. Protective coatings, seals, and structural design adaptations ensure reliability and functionality in harsh environments.
Finite element analysis (FEA) is a computational tool used to simulate and analyze the transducer's mechanical and electrical behavior under various conditions. FEA helps predict resonant frequencies, stress distributions, temperature effects, and potential failure modes. Utilizing FEA enables designers to optimize transducer geometry, material selection, and assembly methods before physical prototypes are built.
Mechanical losses can be minimized by using high-quality materials with low internal damping, ensuring precision machining of components, and designing for optimal mechanical coupling between parts. Eliminating unnecessary mass, reducing friction at contact surfaces, and avoiding undesirable resonant modes through careful design and assembly practices enhance the transducer's efficiency and performance.
