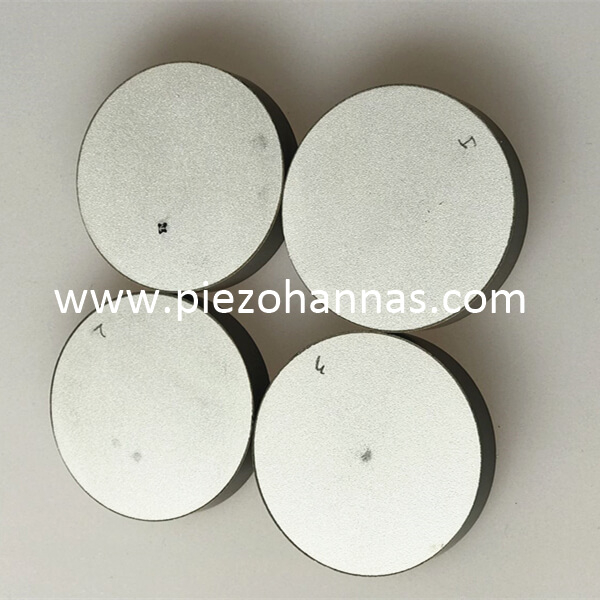

Lead Free Barium Titanate Piezoceramic Disc for Ultrasonic Transducers

Size: dia.18*2mm
Material: BaTiO3 (lead free)
Application: high power high driving transducers, lead free ultrasonic transducer,

Quantity:
  • PZW1000K070
  • Piezohannas
  • PZW1000K070

          Lead Free Barium Titanate Piezoceramic Disc for Ultrasonic Transducers


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



ceramic disc manufacturers



piezo disc vibration sensor



31AFB9AEF0A775B05FBF843CEB753E4E.jpg   lead free piezoelectric disc


Dimension:


Size: diameter 18mm, thickness: 2mm
Radial frequency Fs : 178KHz ± 2 KHz
Piezoelectric constant d33 >143
Electromechanical coupling coefficient Kp: >0.31
Dielectric Loss tg δ: <0.6%
Static capacitance Cs: 1458pF±12.5%


Standard Size of Piezo Discs:


Diameter: 2mm-120mm
Thickness:0.1mm-30mm



Lead-free Piezoelectric Ceramics Material:


 The Co-Al Co-doped Barium Titanate Lead-free Piezoelectric Ceramics was successfully developed by Yuhai company through repeated experiments. By Researching the influence of Co-Al Co-doping on the structure and properties of Barium Titanate-based piezoelectric ceramics, the formulation and preparation technology of Barium Titanate-based piezoelectric ceramics were optimized. Yuhai`s BaTiO3 was prepared by conventional solid-phase sintering method, with the piezoelectric constant d33 (>170pC/N), dielectric loss tgδ≤0.5% and mechanical coupling coefficient  Kp≥0.34.





 Lead Free Barium Titanate Piezoceramic Disc for Ultrasonic Transducers


Piezo Hannas (WuHan) Tech Co,.Ltd  is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
