PH250A
Piezohannas
PH250A

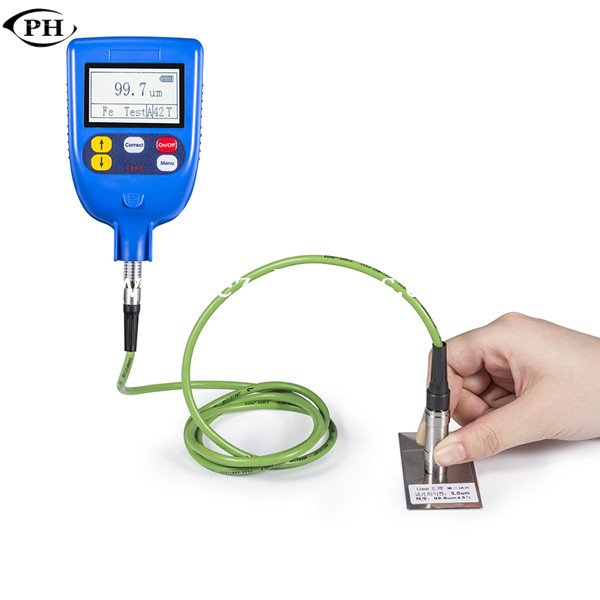

Conductive Paint Coating Thickness Measurement Gauge
Features:
High quality metal probes.
Two measuring methods:continuous and single;
Two working mode: direct and batch;
Limit setting function.
Switch off automatically or manually.
Measuring Materials:
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Technical Specification:
Model No. | PH250A | PH251A | PH252A |
Measuring principle | Fe | NFe | Fe or NFe |
Measuring range (µm) | 0~1250μm | ||
Probe | Settled | Changeable | |
Shell | Plastic | ||
Accuracy | ±[（1~3%)H+1] μm H refers to the thickness of testing piece | ||
Minimum resolution (µm) | 0.1μm | ||
Min curvature of the min area (mm) | Convex1.5 Concave9 | ||
Diameter of the min area (mm) | Φ7 | ||
Critical thickness of substrate (mm) | 0.5 | ||
Memory | 200 groups measured data | ||
Dimensions | 115×55×23mm | ||
Power supply | AAA Alkaline battery | ||
Standard configuration | Main Machine,5 calibration specimens (48.5mm、99.8mm、249mm、513mm 1024mm)，1 probe & substrate, 1 leather sheath | ||
Optional Accessories | Probes,Specimens | ||
