PH-F200
Piezohannas
PH-F200

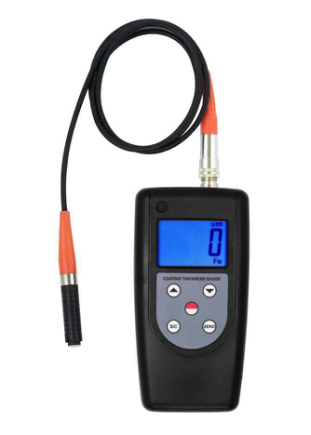

Automotive Digital Car Paint Coating Thickness Gauge
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
![RW_0D_(CV8_LT3%]M$2Z{@0.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/iiBqnKjlRikSrjpqrpio/RW_0D_-CV8.png "RW_0D_(CV8_LT3%]M$2Z{@0.png") thickness meter for car parts |  digital paint coating meter |  thickness gaugefor car parts |
Specifications:
Items | Technical Parameters |
Mode | PH-F200 |
Operating Principle | Magnetic Induction (F) |
Measuring Range | 0~200 um / 0~8 mil
|
Resolution | 0.1 um |
Min. Radius Workpiece |
convex 2 mm / concave 4 mm |
Min. Measuring Area | 2 mm
|
Min. Sample Thickness | 0.1 mm
|
Accuracy | ± 1~3%n or ± 2.5 um |
Auto Power Off | |
Metric / Imperial | Convertible
|
Battery Indicator | Low Battery Indicator
|
Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH
|
Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
Dimensions | 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
Weight | 215 g (Not Including Batteries) |
Applications：
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
Features Details Accessories:
* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: eddy current (N).
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Standard Accessories:
1. Main Unit
2. Probe (F Type)
3. Calibration Base Set (F Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
