UM2000-UN2-TTL
Piezohannas
UM2000-UN2-TTL

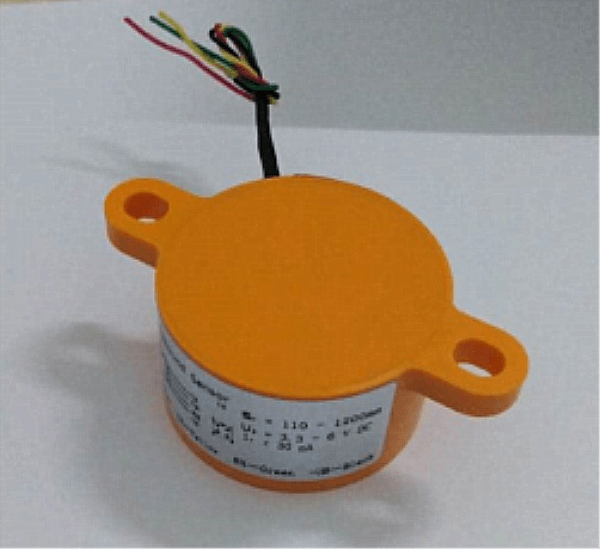

200 KHz Non Contact Ultrasonic Sensor for Detecting Water Level
Applications:
Providing reliable continuous level or distance measurement of fluids ,pasters,or solid bulk materials.
Very suitable for industrial automation,smart city smart home application. Suitable for use with low-power wireless transmmion systems,compact space-saving housng design with thru-hole,easy to use.
1. Compact ,surface-mount,easy to use.
2.Can be applied to the field of low power consumption powered by batteries
3.Different output versions offer: digital ,analog or switching output
4.IP68 Enclosure Rating
Parameters：
Ultrasonic sensor | |
Technical data | |
General Specifications | |
Sensing distance | 100…2000mm |
Adjustment range | 100…2000mm |
Unusable area | 0…100mm |
Standard target plate | 100mm×100mm |
Transducer frequency About | 180 kHz |
Response delay About | 125ms |
Indicators/Operating means | |
LED yellow | solid: NO LED |
LED red | flashing: |
Electrical specifications | |
Operating voltage UB | 10…30VDC ripple10%ss |
No-load supply current | ≤20mA |
Output | |
Output type | 1 digital output UART TTL |
Resolution | |
Deviation of the characteristic | ±1% of full-scale value |
Repeat accuracy | ±0.1% of full-scale value |
Load impedance | >1k Ohm |
Maximum switching current | mA |
Temperature influence | ±1.5% of full-scale value |
Ambient conditions | |
Ambient temperature | -25…70℃ |
Storage temperature | -40…85℃ |
Mechanical specifications | |
Protection grade | IP68 |

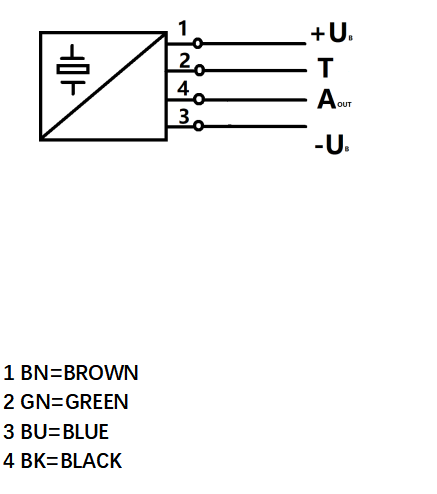

Connection | PVC cable,4-CABLE |
Material | |
Housing | PBT OR FRP |
Transducer | Epoxy resin/hollow; Polyurethane foam |
Weight | 70g |
Compliance with standards and Directives | |
Standard conformity | EN 60947-5-2:2007 |
Dimension:
