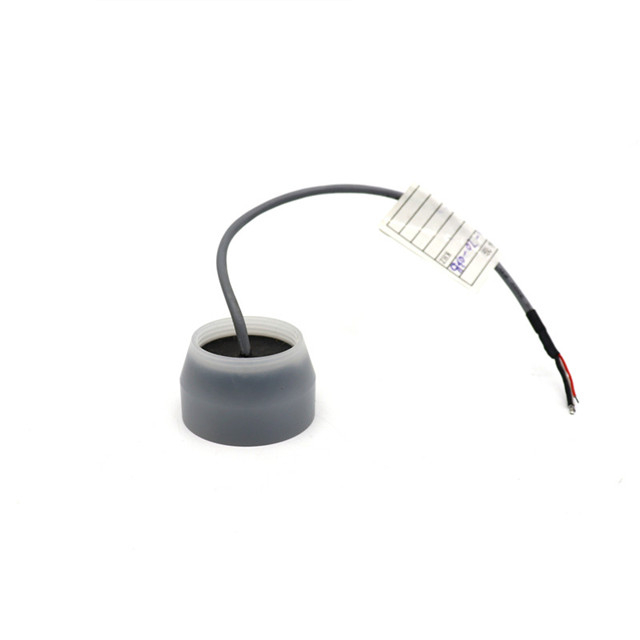

70KHz Ultrasonic Range Transducer for Level Sensor

Technical parameters:

Block diagram of ultrasonic distance transducer :

Schematic Diagram of Temperature Sensor (model: MF58_502F3470):


Integrated type Cable instruction:

1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding


2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)

Red and black are temperature sensor wiring

Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB

Three-core wiring instructions:

    Red: Transducer +
     Blue: temperature sensor +
     Black: Public-

 Four-core wiring instructions:

Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor

What Goes into the Making of a Transducer?

The main component of a depth transducer is the piezoceramic element. It is the part that converts electrical pulses into sound waves, and when the echoes return, the piezoceramic element converts the sound waves back into electrical energy. Piezoceramic elements are most often in a disk form,but they may also be in the shape of a bar or a ring. A transducer may contain one element or a series of elements linked together called an array. A transducer is made up of six separate components:

Ultrasonic Level Measurement Application :

In non-contact ultrasonic level measurement, the sensor emits ultrasonic pulses in the direction of the medium, which then reflects them back.The elapsed time from emission to reception of the signals is proportional to the level in the tank. Ultrasonic sensors are ideal for simple standard applications, both for liquids and for solids.
