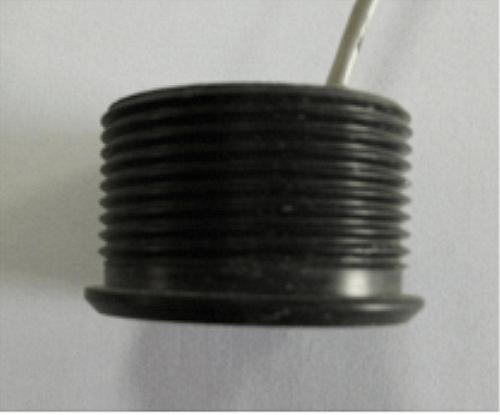

64KHz Ultrasonic Distance Measuring Transducer Sensor for Liquid Level Meter

64KHz |8° |0.3～5m| used for Ultrasonic level gauge,Monitoring,Crashproof,
Security

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-64-05E
Brand:
Piezohannas
Code:
PHA-64-05E

Product Description

Technical parameters：

Items	Technical Parameters		Image
Name	64KHz ultrasonic transducer E type
Model	PHA-64-05E
Frequency	64KHz±5%
Detection Distance	0.3～5m
Minimum Parallel lmpedance	600Ω±20％
Capacitance	930pF±20％ @1KHz
Sensitivity	Driving Voltage：900Vpp，Distance:0.6m， Echo Amplitude：300mV
Operating Voltage	Peak Voltage＜1500VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:19°±4
Housing Material	ABS
Usage	Ultrasonic level gauge,Monitoring,Crashproof, Security
Installation Dimension	thread：M38×2
Protection Level	IP68
Weight	69g±5％（ Length：20cm）
Wiring Instructions	integrated type：Red+，White-，Black: shielded wire；
Admittance Curve		Product Structure Diagram

Test Circuit Schematic of Transducer:

20GT7)ETXN3}I3PI2@BY

ultrasonic distance measuring transducer sensor 64KHz distance measuring transducer sensor ultrasonic transducer for liquid level gauge ultrasonic distance measuring transducer ultrasonic distance measurement sensor ultrasonic transducer for level meter 64KHz ultrasonic sensor for liquidometer ultrasonic transducer liquid level meter ultrasonic transducer for liquid level meter ultrasonic distance measuring sensor
