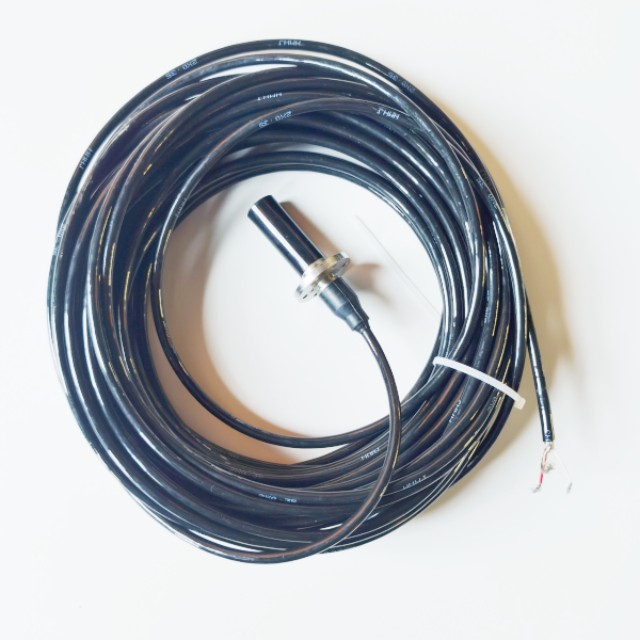

60kHz-80kHz Cylindrical Receiving Transmitting Transducer Underwater Acoustic Transducer

Share to:

60kHz-80kHz Cylindrical Receiving Transmitting Transducer Underwater Acoustic Transducer

Availability:

Quantity:



Inquire Add to Basket

Brand:
Piezohannas

Product Description

60kHz-80kHz Cylindrical Receiving Transmitting Transducer Underwater Acoustic Transducer (2)

Transmitting Array:

conductance, capacitance

Measure the conductance and capacitance curves of each element of the transmitting array, and provide a internal emitting resistor and capacitance data based on the frequency band of 60kHz to 80kHz.

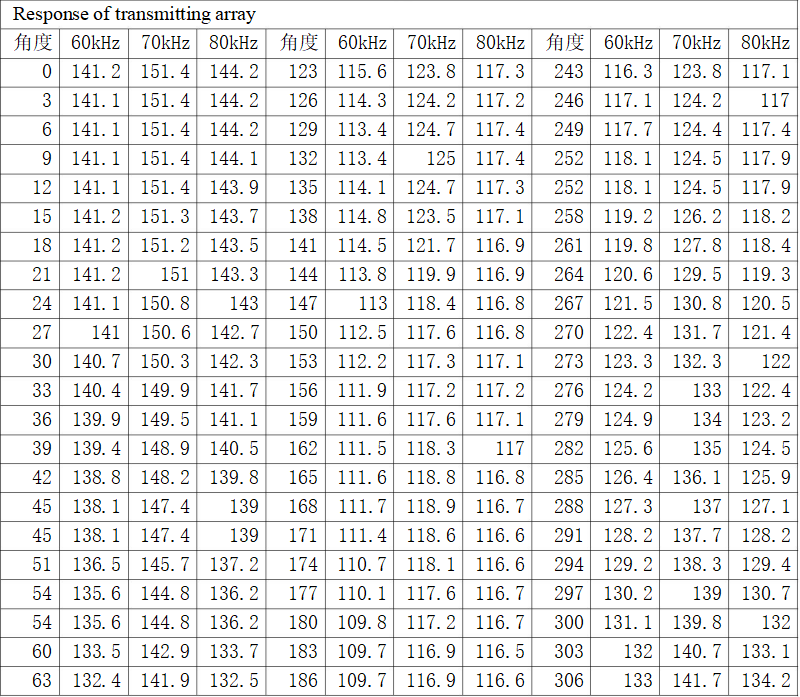

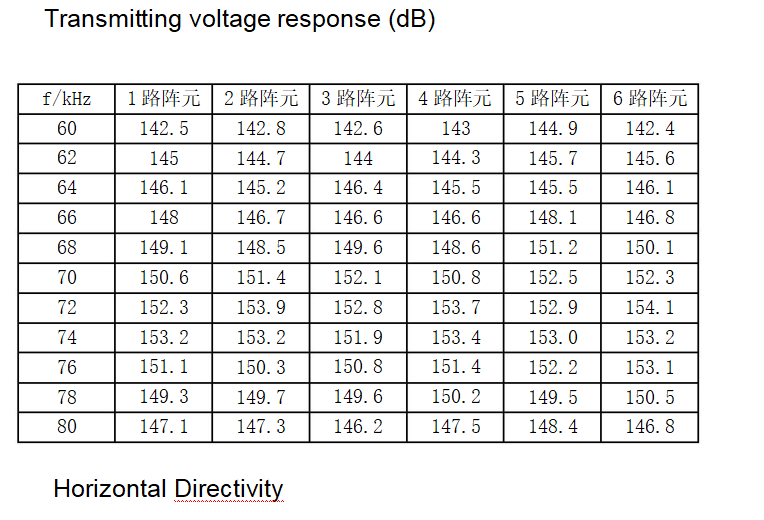

Transmitting Response

Measuring the voltage emission response of the transducer in the 60kHz to 80kHz frequency band.

Vertical Directivity

Measure the vertical directivity of six transmitting array elements after they are connected in parallel.

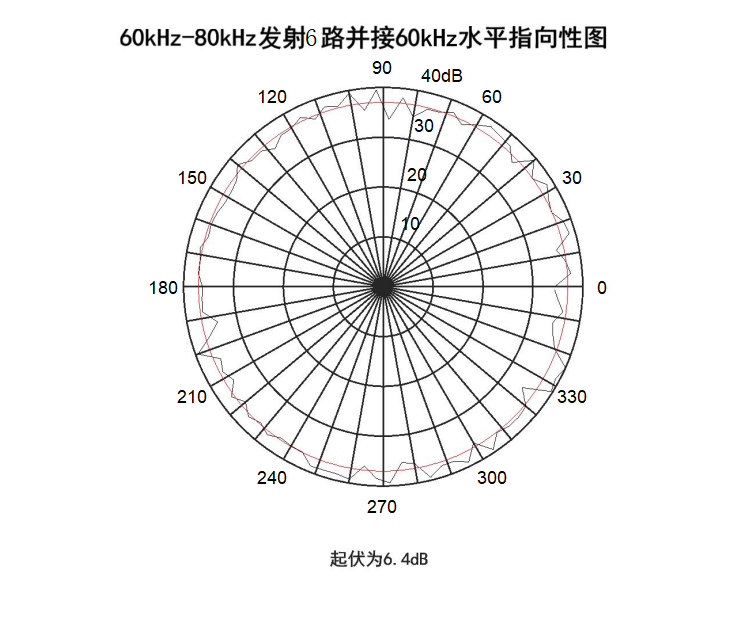

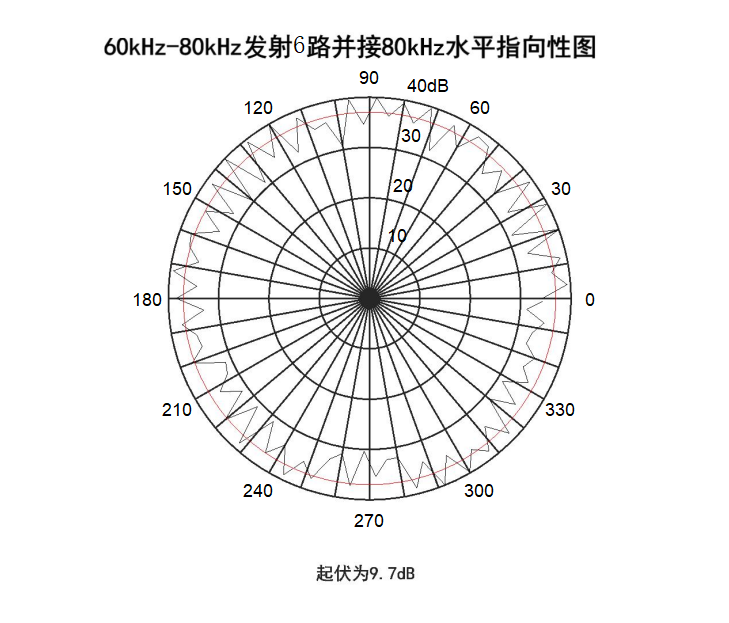

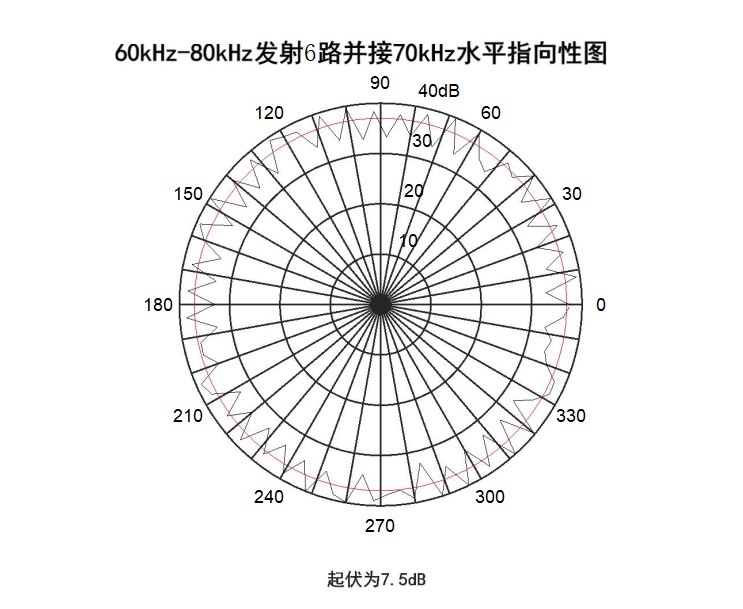

Horizontal Directivity

Measure the horizontal directivity of six transmitting array elements after they are connected in parallel.

Receiving Array:

conductance, capacitance

Measure the conductance and capacitance curves of each element of the receiving array.

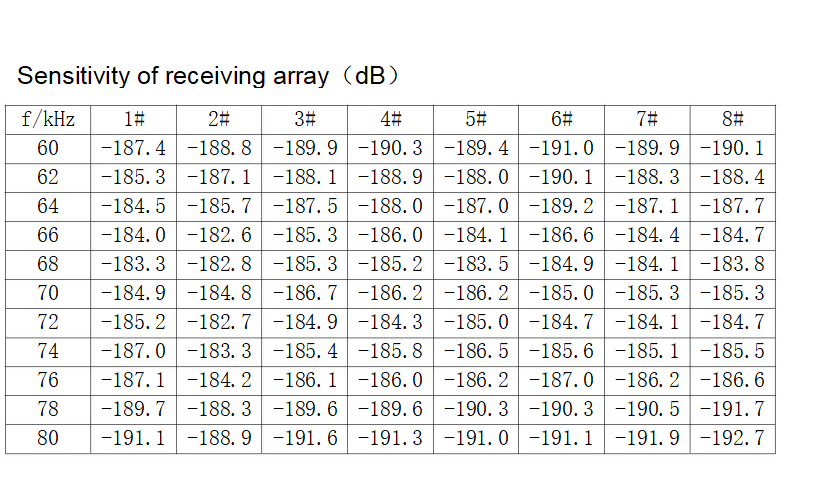

Receiving sensitivity

Measuring the receiving sensitivity of the transducer in the 60kHz to 80kHz frequency band, the highest sensitivity in the frequency band is not less than -185dB.

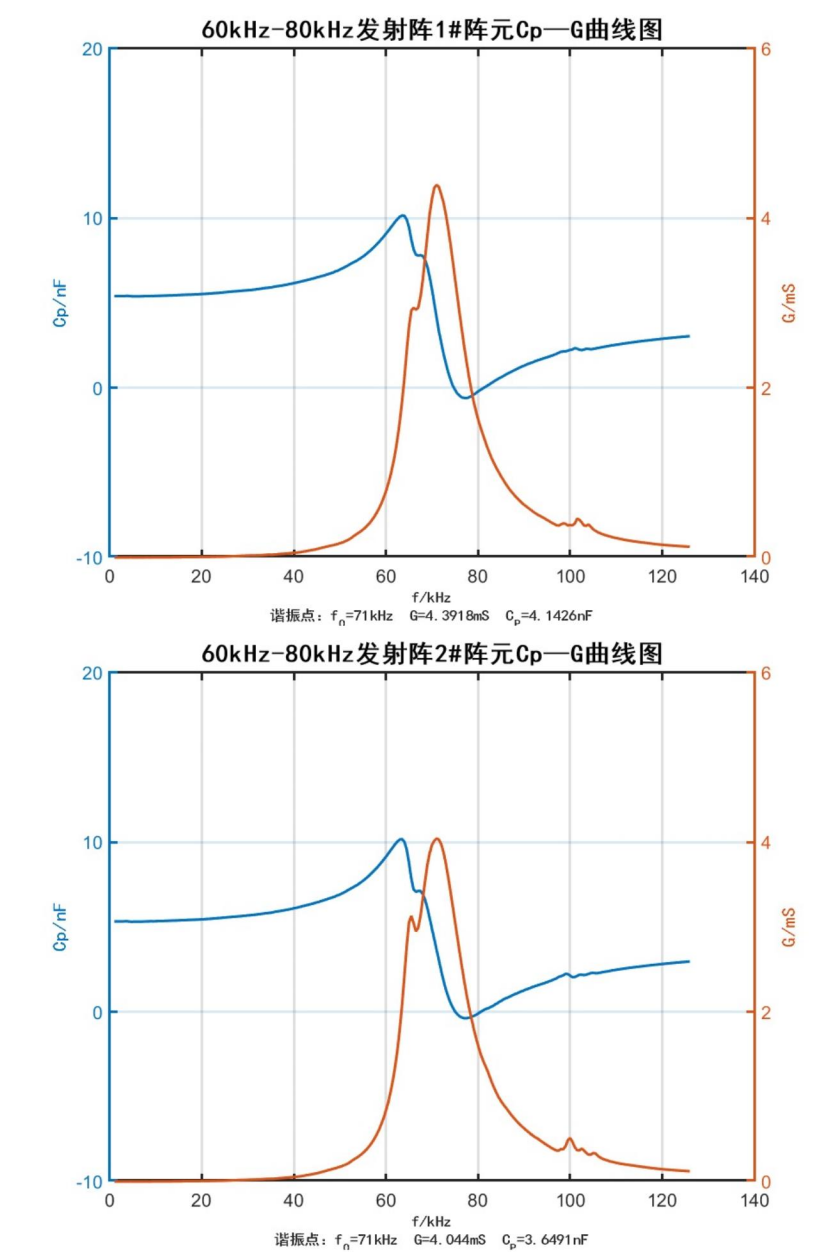

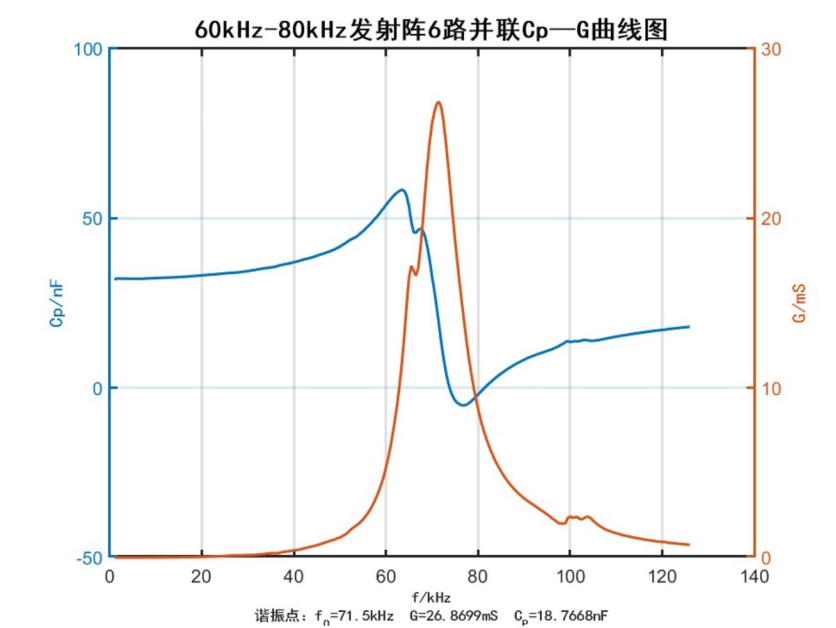

Transmitting array

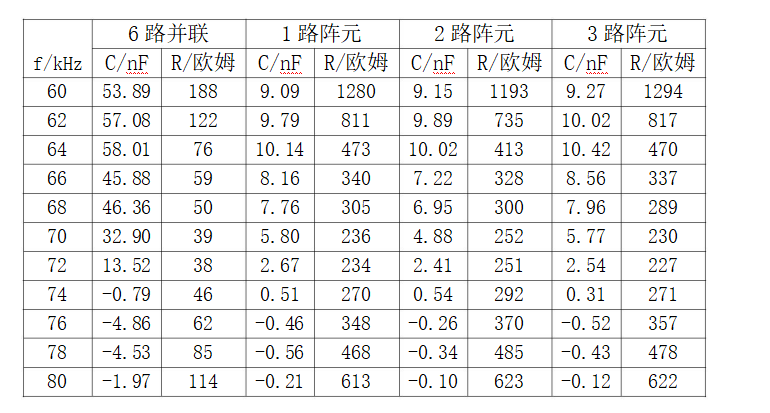

Conductance and capacitance parameters

NLS`XRDJBF`RUZ(H9%NO

000QU_38M9OJRO`8X7WBDE

4I`JKV6X_J625QIVBCJ

U5G%104%YBGS2`GET

Rating voltage

The transmitting array can withstand a voltage rating of 500V rms.

ZQG_HI062VGRPGI99GRNF6T

65S7WM(D40T3OJ`BL8ND0P

W6E7EXHNI89_HVVA6AK

Y2LDTMXCM`JQ3F0(Q

XQCEN5VJ6JTTBQH6BPCV

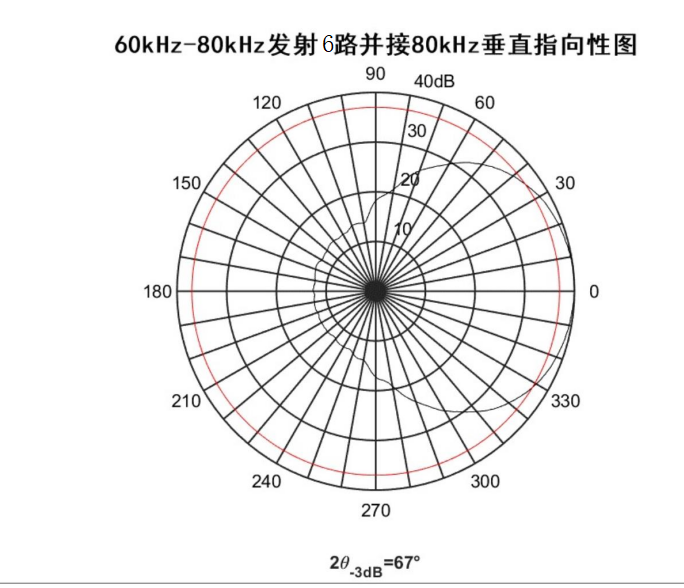

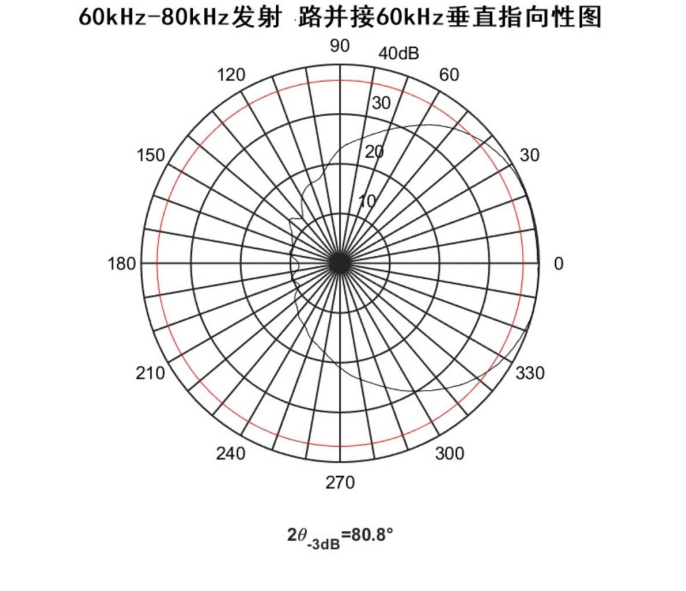

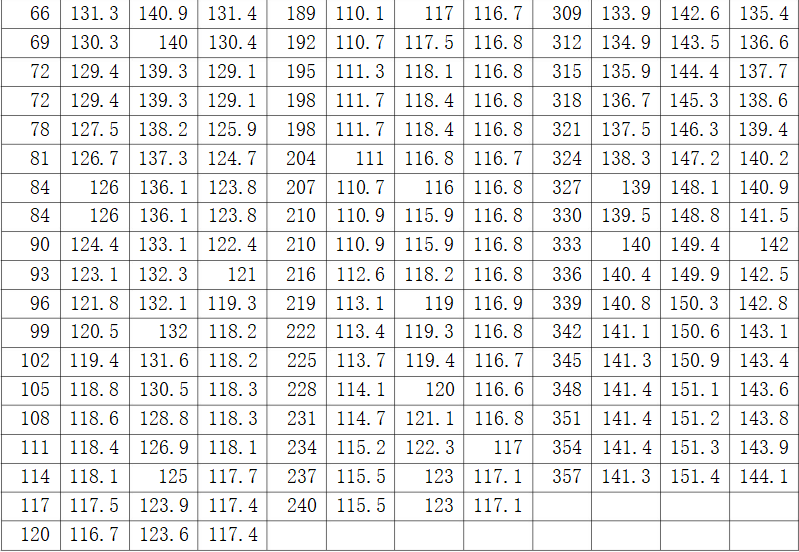

Vertical Directivity :

910ZS4DQJA`MJX5UOHNNR

LA(9LB0V5TG32Y)ZO(RT

NHY81WSLLIM4`KY_LR

%`B_O35_ZK67VOXP9NI

%W(%UH(T2ZM43E)B(D

Receiving Array

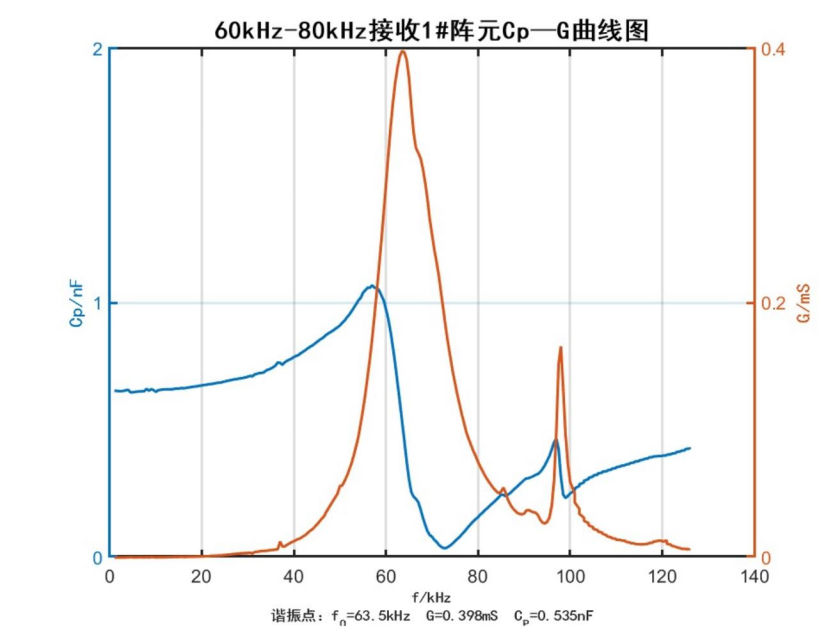

Conductance and capacitance curves

7REQ%C0ITT1F80HD)TK5

1714962835859
