6.5kHz Piezoelectric Diaphragm Buzzer Piezo Element

Size:
1. Diameter 20mm, Thickness 0.21mm
2. Material: Metal and Ceramic
3. Metal type: Brass, Nickle, Stainless steel, Ferric
4. Frequency: 6.5kHz

Quantity:
  • PZB10008
  • Piezohannas
  • PZB10008

                   6.5kHz Piezoelectric Diaphragm Buzzer Piezo Element


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



AF298C2F795DF22EFF116F02EC67ACB4 (1)

Size Parameters :


Item

Configuration



Dimension

20±0.2mm

Thickness

0.21±0.05mm

Material

brass and ceramic

Resonant frequency (kHz) Fs

6.5±0.5



Resonant impedance (Ω) Rr

<500Ω

Capacitance at 120Hz (NF) Co

15±30%

Standard Test Conditions

Temperature25±1℃ Humidity 45%75%

Air Pressure86106kPa

Configuration

Plane

Electrode form

Fullness

Storage temperature ()

-30+80

Operating temperature ()

-20+70

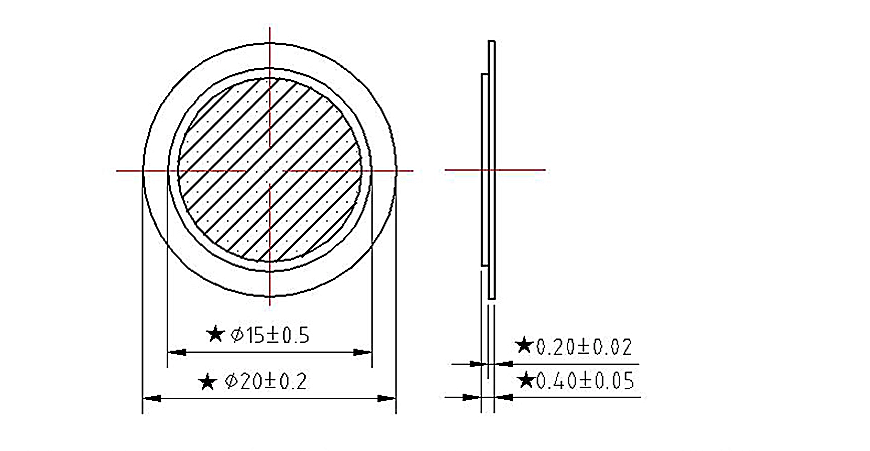

piezo buzzer


Buzzer Application:


In common parlance a Buzzer is a signaling device that is not a loudspeaker. It can be mechanical, electromechanical, or electronic (a piezo transducer). BeStar produces Buzzers in every available configuration for a wide variety of applications. A Piezo transducer can produce the sound for panel mount buzzers, household goods, medical devices and even very loud sirens. When a lower frequency is required an electromagnetic buzzer can fill the need. These are very common in automotive chimes and higher end clinical diagnostic devices. The buzzer range includes self drive units with their own drive circuitry (indicators), or external drive units, which allow the designer the flexibility to create their own sound patterns.
