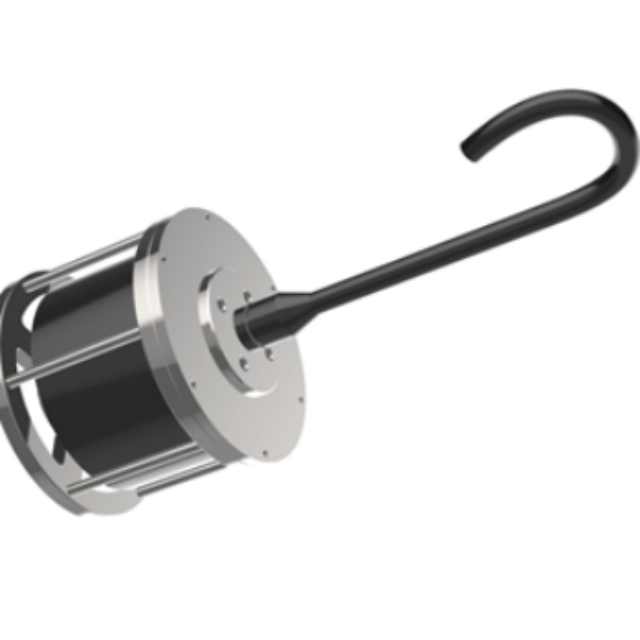

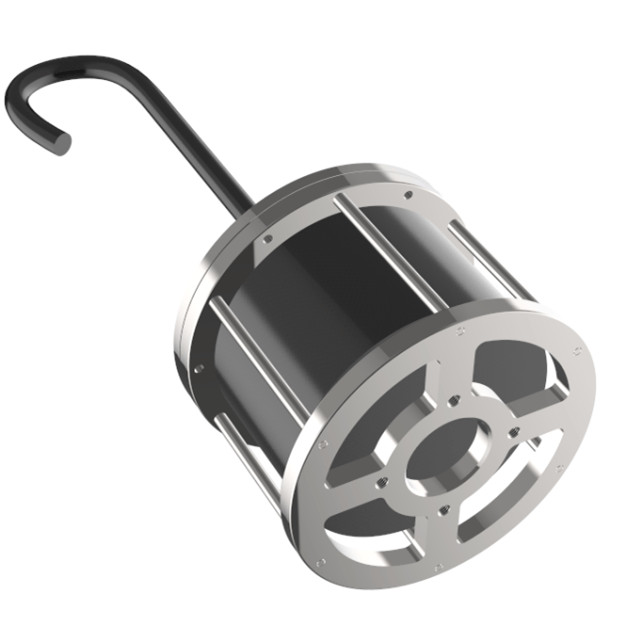

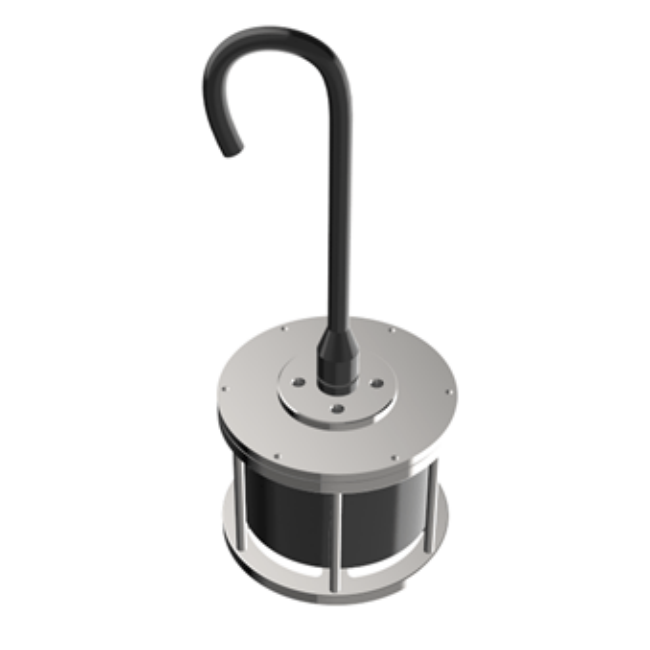

5k-9kHz Low Frequency Receiving Transmitting Transducer

Availability:
Quantity:
Inquire Add to Basket

  • Piezohannas

            5k-9kHz Low Frequency Receiving Transmitting Transducer




Technical Parameters：


Main Specifications

Working frequency bands

5k-9kHz

Transmitting voltage response

Not less than 140dB@7kHz

Transmitting sound source level

Not less than 195dB@7kHz

Receiving sensitivity

Not less than -190dB@7kHz

Directivity

Horizontal omnidirectional, vertical omnidirectional@7kHz

Other Parameters

Main body size

Diameter 185mm, height 142mm

Working water depth

500m

Pressure resistance

6MPa

Metal material

Titanium alloy, 316L (customizable)

Electrical interface

5m watertight cable (standard), customizable watertight connector

Protective frame

Yes

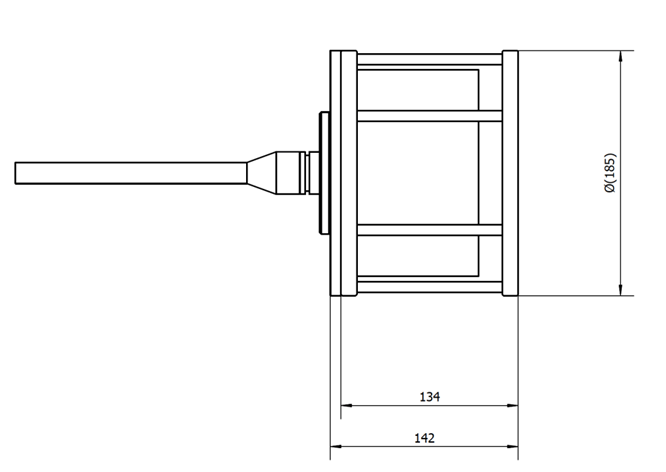

Structural parameters

 d48c861fa3bfc3c588f3d33d75909815



Application:


Underwater Acoustics Research

Underwater Communication System

Acoustic Field Calibration

Military and Scientific Applications
