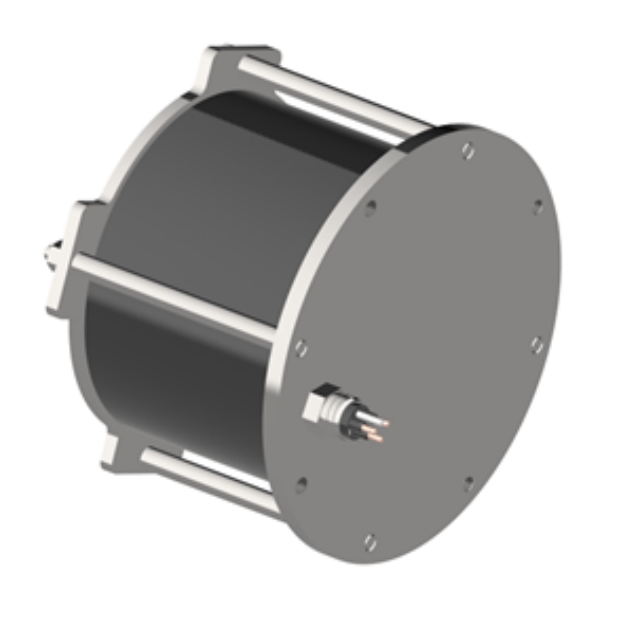

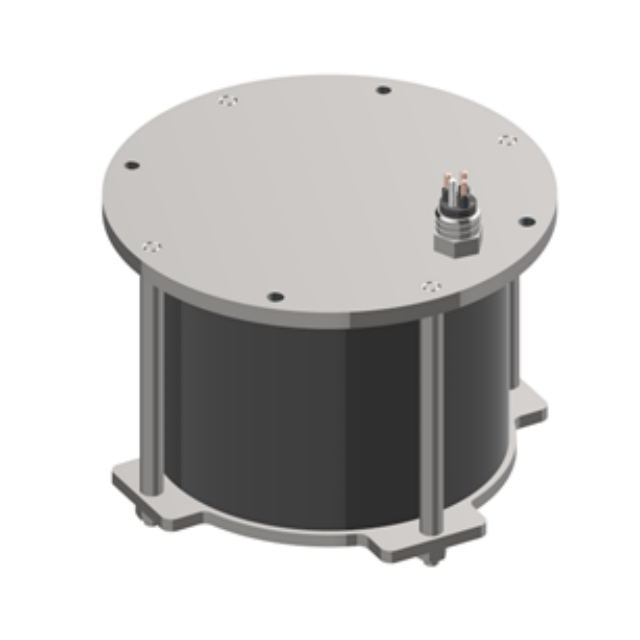

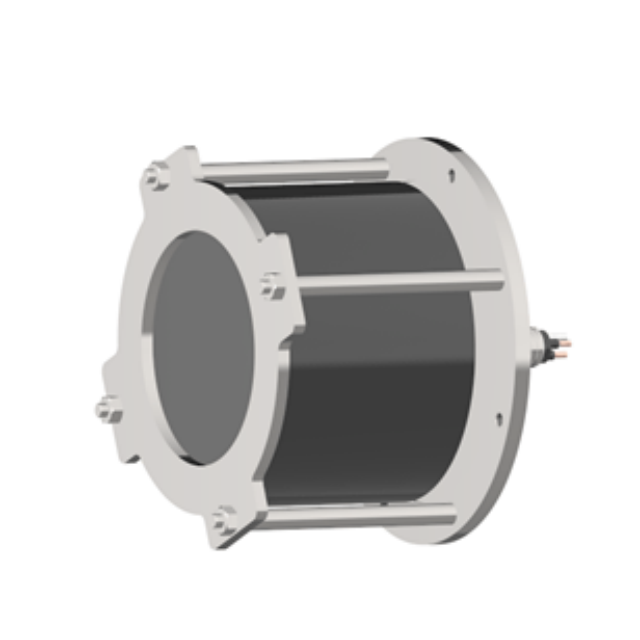

5k-9kHz Low Frequency Receiving Transmitting Transducer for Deepwater

Availability:
Quantity:
Inquire Add to Basket

  • Piezohannas

            5k-9kHz Low Frequency Receiving Transmitting Transducer for Deepwater




Technical Parameters：




Acoustic performance

Frequency range

5k-9kHz

Transmitting voltage response

Not less than 140dB@7kHz

Transmitting sound source level

Not less than 195dB@7kHz

Receiving sensitivity

Not less than -190dB@7kHz

Directivity

Horizontal omnidirectional, vertical opening angle not less than 120°@7kHz

Other parameters

Main body size

Diameter 186mm, height 125mm

Working water depth

6000m

Pressure resistance

66MPa

Metal material

Titanium alloy, 316L (customizable)

Electrical interface

Mini round 3-pin socket (male) (customizable)

Protective frame

Yes


Structural parameters

 9e988ad2c4becaa51216dbe6e3abbbf582d08f020b9a8ffe601f8b8d26772e72



Application:


Underwater Acoustics Research

Underwater Communication System

Acoustic Field Calibration

Military and Scientific Applications
