50Khz Ultrasonic Transducer with Drive Schematics for Level Sensor

Share to:

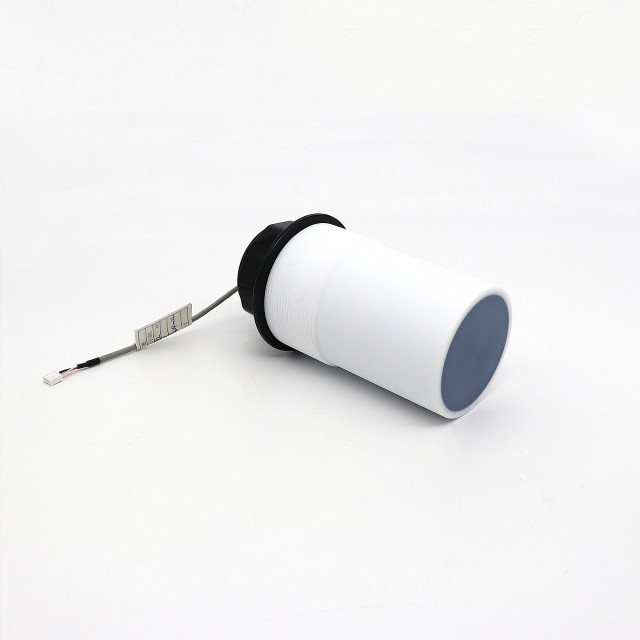

50Khz Ultrasonic Transducer with Drive Schematics for Level Sensor

49KHz |5°|0.4～8m| used for ultrasonic distance sensor,Ultrasonic level gauge,Monitoring,Crashproof,
Security,ultrasonic range finder,ultrasonic sensor for non-contact detect objects,etc.

About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency, Also we can accpet customization.

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-49-08FC
Brand:
Piezohannas
Code:
PHA-49-08FC

Product Description

50Khz Ultrasonic Transducer with Drive Schematics for Level Sensor

Items	Technical Parameters		Image
Name	anti-corrosive transducer
Model	PHA-49-08FC
Frequency	49KHz±5%
Detection Distance	0.4～8m
Minimum Parallel lmpedance	160Ω±20％
Capacitance	2000pF±20％ @1KHz
Sensitivity	Driving Voltage：840Vpp，Distance:0.6m， Echo Amplitude：500mV
Operating Voltage	Peak Voltage＜1500VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:5°±2， Sharp Angle:13°±4
Housing Material	PTFE
Usage	Ultrasonic level gauge,Monitoring,Crashproof, Security
Installation Dimension	Bottom with thread:M78×2
Protection Level	IP68
Weight	680g±5％
Wiring Instructions	integrated type：connector（3PIN,2.54mm terminal ）：Red+，White-，Black: shielded wire； connector（3PIN,2.0mm terminal ）：white,black:temperature sensor（MF58）；
Admittance Curve		Product Structure Diagram
$25_4%(CDUT@{3_$C$OBZ@Q$

Drive Schematics

0RYJG8D(6_Q9XM%86PDG

ultrasonic transducer with drive schematics ultrasonic transducer drive schematics 50Khz ultrasonic transducer 50Khz transducer for level sensor 50Khz ultrasonic transducer sensor drive schematics ultrasonic transducer ultrasonic distance transducer sensor ultrasonic transducer sensors with circuit ultrasonic transducer for level sensor 50KHz Ultrasonic Range Transducer
