PHA-49-08FB-ABB
Piezohannas
PHA-49-08FB-ABB

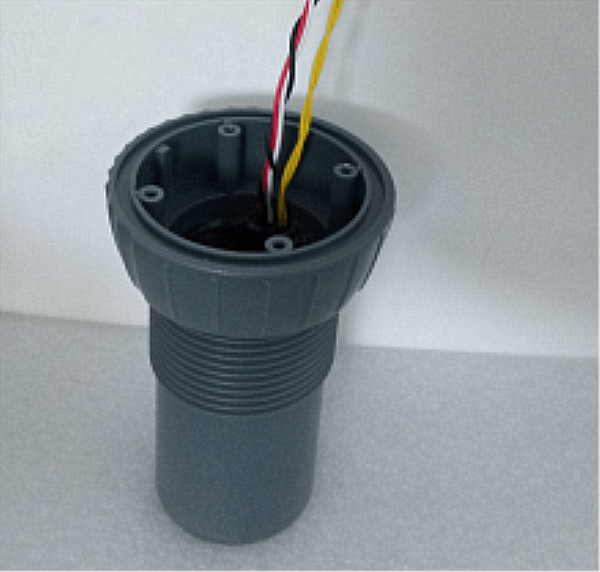

50KHz Piezoelectric Ultrasonic Transducer for Ultrasonic Anti-collision
Technical parameters:

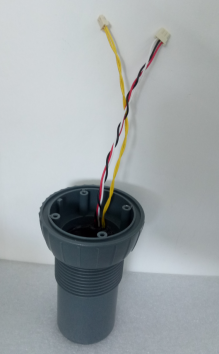

Items | Technical Parameters | Image | |
Name | 50KHz ultrasonic transducer |
| |
Model | PHA-49-08FB-ABB | ||
Frequency | 55KHz±5% | ||
Detection Distance | 0.4～8m | ||
Minimum Parallel lmpedance | 170Ω±20％ | ||
2000pF±20％ @1KHz | |||
Sensitivity | No load driving voltage：500Vpp，Distance 0.3m， Echo Amplitude:500mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width@-3dB:8.6°±10%， Sharp Angle:20.2°±10% | |||
Housing Material | PC+10%GF | ||
M56x3 | |||
Protection Level | IP68 | ||
Weight | 360g±5％（134mm±10mm） | ||
Wiring Instructions | Wurth terminals: Interface (3PIN) : red positive, white negative, black shield wire; Interface (2PIN) : Yellow line (103JG1F); | ||

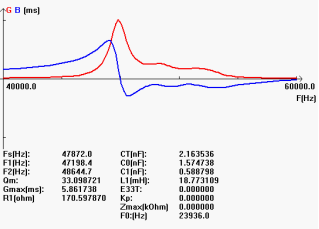

Admittance Curve | Product Structure Diagram | ||
| |||
Block diagram of ultrasonic distance transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
