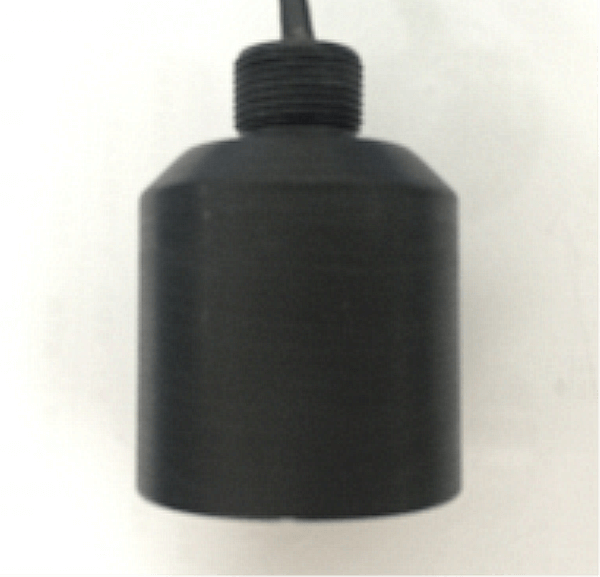

500khz Ultrasonic Transducer Depth Measurement for Undersea Acoustic Device

Application : depth measuring , positioning

Quantity:
  • PHW-500-20B
  • Piezohannas
  • PHW-500-20B

500khz Ultrasonic Transducer Depth Measurement for Undersea Acoustic Device


 Technical parameters:



Items

Technical Parameters


Name

500KHz ultrasonic transducer

TAYOTEXFID3O_XJ1PC

YEA`C1MJ9UEAS6D_FC11F

Model

PHW-500-20B

Frequency

500KHz±5%

Minimum

Parallel lmpedance

12Ω±20

Capacitance

7500pF±20@1KHz



Sensitivity

No load driving voltage24V,Distance0.3m

Echo Amplitude2.5 V

Operating

Voltage

Peak Voltage600Vpp

Operating

Temperature

-40+80℃

Pressure

≤10Kilos or 1MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB3.0°±0.2°

Sharp Angle7.2°±0.4°

Housing Material

ABS



Usage

Ranging, positioning

Installation

Dimension

See the product structure drawing

Protection Level

IP68

Weight

750g±5%(wire length10m

Wiring Instructions

(Three lines): red: transducer +, blue: temperature sensor +, black: public -;

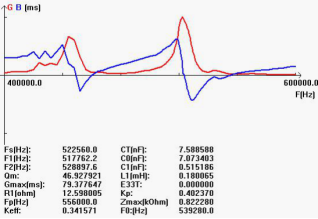

Admittance Curve

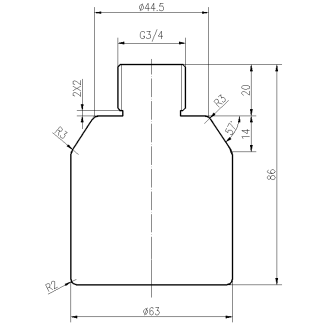

Product Structure Diagram

_F0KHWRCAF1_KR3P617B



HZJKR%`8ITPW74%(H01N68


Block diagram of ultrasonic transducer :


0RYJG8D(6_Q9XM%86PDG


Schematic Diagram of Temperature Sensor:



O3`1PA5YR5%Z5`DQ1R
